Section 4 (Cooling (3UZ-FE)): Radiator: Installation

WARNING: This page is about a different car, the 2007 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RADIATOR ASSEMBLY
    1. Install the 2 radiator support cushions and 2 radiator lower supports to the radiator.
      Fig 1: Identifying Radiator Support Cushions And Radiator Lower Supports To Radiator
      G05287572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fan to the radiator, and attach the 3 claws.
      Fig 2: Identifying Claws And Remove Fan
      G05287571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the radiator and attach the ECM outlet duct.
      Fig 3: Identifying Radiator And Attaching ECM Outlet Duct
      G05287575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Align the radiator with the condenser. Then install the radiator with the 4 bolts.
      Fig 4: Locating Radiator With Condenser
      G05287568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  2. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL HOOD LOCK ASSEMBLY (See  INSTALLATION  )
  4. INSTALL HOOD LOCK CONTROL CABLE COVER (See  INSTALLATION  )
  5. INSTALL RADIATOR SUPPORT OPENING COVER (See  INSTALLATION  )
  6. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
  7. CONNECT NO. 1 OIL COOLER OUTLET TUBE
    1. Connect the outlet tube.
    2. Attach the tube to the radiator's clamp.
    Fig 5: Identifying Outlet Tube
    G05287567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT NO. 1 OIL COOLER INLET TUBE
    1. Connect the inlet tube.
    Fig 6: Identifying Inlet Tube
    G05287566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT RADIATOR HOSE OUTLET
    1. Connect the hose outlet.

      HINT:

      • Face the clamp's claw toward the bottom of the vehicle.
      • Make sure the clearance between the clamp edge and radiator hose edge (labeled A) is between 1 to 5 mm (0.039 to 0.197 in.).
      • Insert the hose until it contacts the radiator. Make sure the clearance between the hose and radiator (labeled B) is between 0 to 2.5 mm (0 to 0.098 in.).

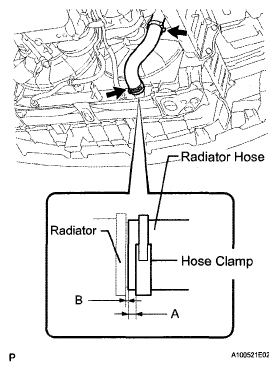

    Fig 7: Identifying Hose Outlet
    G05287579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT RADIATOR HOSE INLET
    1. Connect the hose inlet.
      Fig 8: Identifying Hose Inlet
      G05287564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. ADD ENGINE COOLANT (See  COOLANT  )
  12. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (see COOLING SYSTEM ).
  13. INSTALL AIR CLEANER ASSEMBLY (See  INSTALLATION  )
  14. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the inlet with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  15. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Install the cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  16. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  17. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  18. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  19. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  21. PERFORM INITIALIZATION
    1. Perform initialization procedure (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
