Hood Lock Control Cable Assembly: Installation

HINT:

A bolt without a torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Pulling Cable From Engine Room

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
   1. Pass the cable into the engine room.
   2. Pass the cable rear side through the grommet until the cable stopper is attached to the grommet.
   3. Pass the cable front side through the upper radiator support.
      Fig 2: Passing Cable Into Engine Room

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

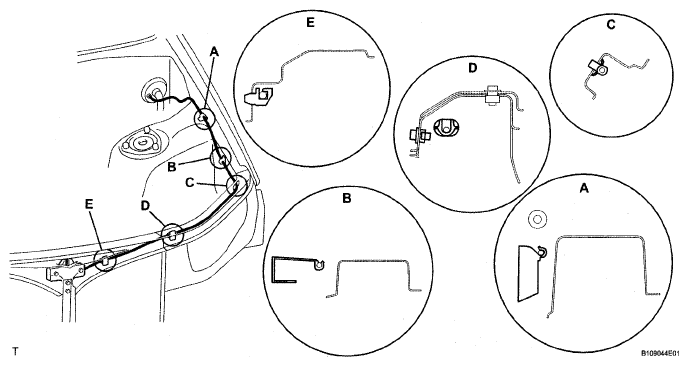

   4. Connect the clamps as shown in the illustration.
   Fig 3: Installing Hood Lock Control Cable Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
   AREA MEASUREMENT



   Area	Part Name
   A	Junction block
   B	Hood lock control cable
   C	Parking brake pedal
   D	Parking brake cable

   1. Install the hood lock lever and connect the hood lock control cable.
   2. Attach the 2 claws.
   Fig 4: Installing Hood Lock Control Lever Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL HOOD LOCK ASSEMBLY
   1. Apply MP grease to the sliding areas of the lock.
      Fig 5: Identifying Grease Applying For Hood Lock Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the hood lock
   3. Install the 2 bolts and nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   4. Install a new cap.
   5. Connect the hood lock control cable.
   Fig 6: Installing Hood Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT FENDER PROTECTOR UPPER LH
   1. Attach the 3 clips to install the protector.
   Fig 7: Attaching Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL HOOD LOCK CONTROL CABLE COVER
   1. Attach the claw and install cable cover.
      Fig 8: Installing Hood Lock Control Cable Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the 3 screws.
6. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Cruise Control System) (See  INSTALLATION  )
7. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
8. INSTALL FRONT FENDER LINER RH (See  INSTALLATION  )
9. INSTALL FRONT FENDER LINER LH (See  INSTALLATION  )
10. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
11. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
12. INSTALL ENGINE ROOM SIDE COVER LH (See  INSPECTION PROCEDURE  )
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
15. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (see DIAGNOSIS SYSTEM ).
