Oil Pump: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  3. REMOVE ENGINE ROOM SIDE COVER RH (See  REMOVAL  )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See  REMOVAL  )
  6. DISCHARGE FUEL SYSTEM PRESSURE

    (See FUEL SYSTEM )

  7. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  8. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  9. REMOVE FRONT WHEEL
  10. REMOVE ENGINE UNDER COVER
  11. REMOVE NO. 2 ENGINE UNDER COVER
  12. REMOVE ENGINE UNDER COVER REAR LH (See  REMOVAL  )
  13. REMOVE ENGINE UNDER COVER REAR RH (See  REMOVAL  )
  14. DRAIN ENGINE OIL (See  REPLACEMENT   )
  15. DRAIN ENGINE COOLANT (See  COOLANT  )
  16. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (See REMOVAL )

  17. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    (See REMOVAL )

  18. REMOVE NO. 1 AIR CLEANER INLET (See  REMOVAL  )
  19. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (See  REMOVAL  )
  20. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (See  REMOVAL  )
  21. DISCONNECT UNION TO CHECK VALVE HOSE (See  REMOVAL  )
  22. DISCONNECT NO.2 FUEL VAPOR FEED HOSE (See  REMOVAL  )
  23. DISCONNECT INLET RADIATOR HOSE (See  REMOVAL  )
  24. DISCONNECT OUTLET RADIATOR HOSE (See  REMOVAL  )
  25. DISCONNECT RADIATOR RESERVOIR TANK HOSE (See  REMOVAL  )
  26. DISCONNECT INLET HEATER WATER HOSE (See  REMOVAL  )
  27. DISCONNECT OUTLET HEATER WATER HOSE (See  REMOVAL  )
  28. REMOVE NO. 1 COOLER REFRIGERANT SUCTION HOSE (See  REMOVAL  )
  29. REMOVE DISCHARGE HOSE SUB-ASSEMBLY (See  REMOVAL  )
  30. REMOVE ECM COVER (See  ON-VEHICLE INSPECTION  )
  31. DISCONNECT ENGINE WIRE (See  REMOVAL  )
  32. DISCONNECT FUEL MAIN TUBE

    (See FUEL SYSTEM )

  33. DISCONNECT NO. 3 FUEL HOSE (See  REMOVAL  )
  34. DISCONNECT FUEL TUBE SUB-ASSEMBLY (See  REMOVAL  )
  35. REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR (See  REMOVAL  )
  36. DISCONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (See  REMOVAL  )
  37. DISCONNECT HEIGHT CONTROL SENSOR LINK (See  REMOVAL  )
  38. REMOVE FRONT SHOCK ABSORBER ASSEMBLY LH (See  REMOVAL  )
  39. REMOVE FRONT SHOCK ABSORBER ASSEMBLY RH (See  REMOVAL  )
  40. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH (See  REMOVAL  )
  41. REMOVE FRONT LOWER BALL JOINT ASSEMBLY RH (See  REMOVAL  )
  42. DISCONNECT POWER STEERING LINK WIRE HARNESS (See  REMOVAL  )
  43. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (See  REMOVAL  )
  44. REMOVE ENGINE AND TRANSMISSION ASSEMBLY (See  REMOVAL  )
  45. INSTALL ENGINE HANGERS (See  REMOVAL  )
  46. REMOVE STARTER ASSEMBLY (See  REMOVAL  )
  47. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

    (See REMOVAL )

  48. REMOVE OIL DIPSTICK GUIDE SUB-ASSEMBLY (See  REMOVAL  )
  49. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (See  REMOVAL  )
  50. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (See  REMOVAL  )
  51. REMOVE DRIVE PLATE AND RING GEAR SUBASSEMBLY (See  REMOVAL  )
  52. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (See  REMOVAL  )
  53. FIX ENGINE ON ENGINE STAND (See  REMOVAL  )
  54. REMOVE V-RIBBED BELT (See  REMOVAL  )
  55. REMOVE NO. 2 ENGINE COVER (See  REMOVAL  )
  56. REMOVE NO. 1 ENGINE COVER (See  REMOVAL  )
  57. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY (See  REMOVAL  )
  58. REMOVE GENERATOR ASSEMBLY (See  REMOVAL  )
  59. REMOVE COOLER COMPRESSOR ASSEMBLY (See  REMOVAL  )
  60. REMOVE ENGINE MOUNTING BRACKET LH (See  REMOVAL  )
  61. REMOVE ENGINE MOUNTING BRACKET RH (See  REMOVAL  )
  62. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY (See  REMOVAL  )
  63. REMOVE WATER PUMP PULLEY (See  REMOVAL  )
  64. REMOVE ENGINE WIRE (See  REMOVAL  )
  65. REMOVE INJECTOR DRIVER (See  REMOVAL  )
  66. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (See REMOVAL )

  67. REMOVE NO. 2 SURGE TANK STAY (See  REMOVAL  )
  68. DISCONNECT WATER HOSE JOINT (See  REMOVAL  )
  69. REMOVE CRANKSHAFT PULLEY (See  REMOVAL  )
  70. REMOVE WATER INLET (See  REMOVAL  )
  71. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY (See  DISASSEMBLY  )
  72. REMOVE OIL PAN SUB-ASSEMBLY (See  DISASSEMBLY  )
  73. REMOVE OIL STRAINER SUB-ASSEMBLY (See  DISASSEMBLY  )
  74. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY (See  REMOVAL  )
  75. REMOVE NO. 1 FUEL PIPE (See  REMOVAL  )
  76. DISCONNECT NO. 2 FUEL PIPE (See  REMOVAL  )
  77. REMOVE FUEL PUMP ASSEMBLY (See  REMOVAL  )
  78. REMOVE NO. 2 FUEL PIPE (See  REMOVAL  )
  79. REMOVE IGNITION COIL ASSEMBLY (See  REMOVAL  )
  80. REMOVE NO. 1 OIL PIPE (See  DISASSEMBLY  )
  81. REMOVE NO. 2 OIL PIPE (See  DISASSEMBLY  )
  82. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 2) (See  DISASSEMBLY  )
  83. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 1) (See  DISASSEMBLY  )
  84. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
    1. Remove the bolt and wiring harness clamp bracket.

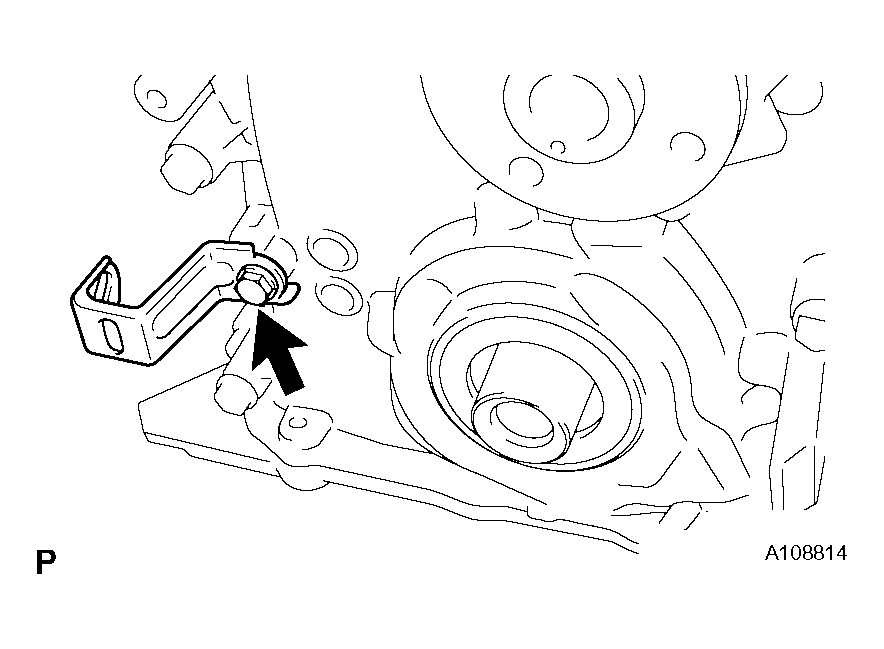

      Fig 1: Identifying Bolt And Wiring Harness Clamp Bracket
      G04057858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 25 bolts and 2 nuts as shown in the illustration.

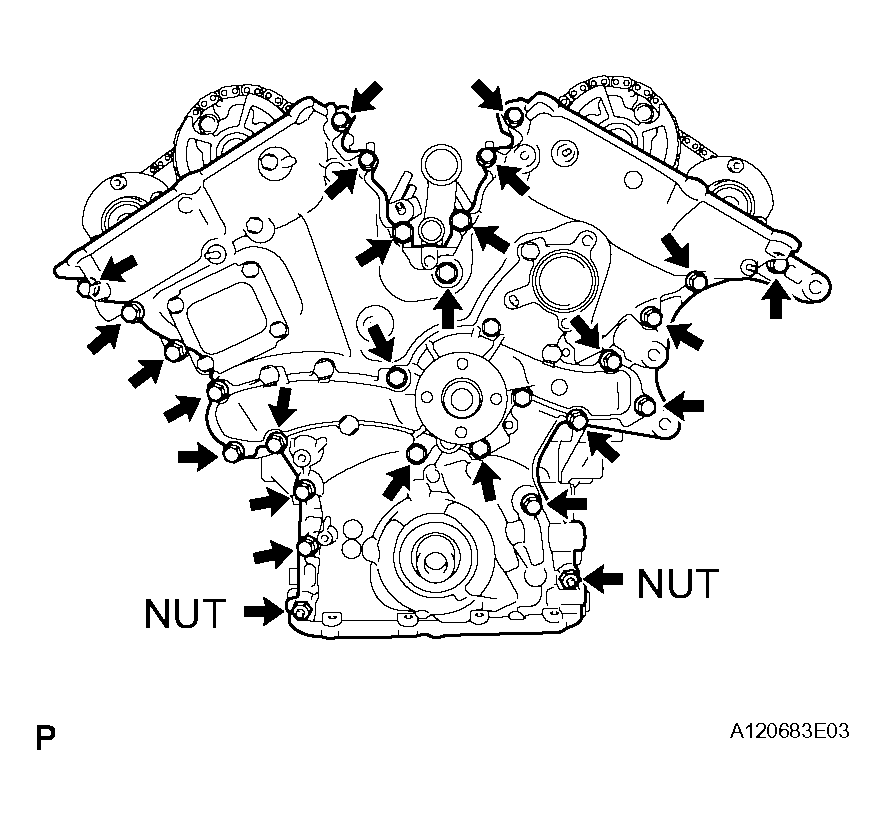

      Fig 2: Identifying Bolts And Nuts
      G04057859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
      NOTE: Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

      HINT:

      Tape the screwdriver tip before use.

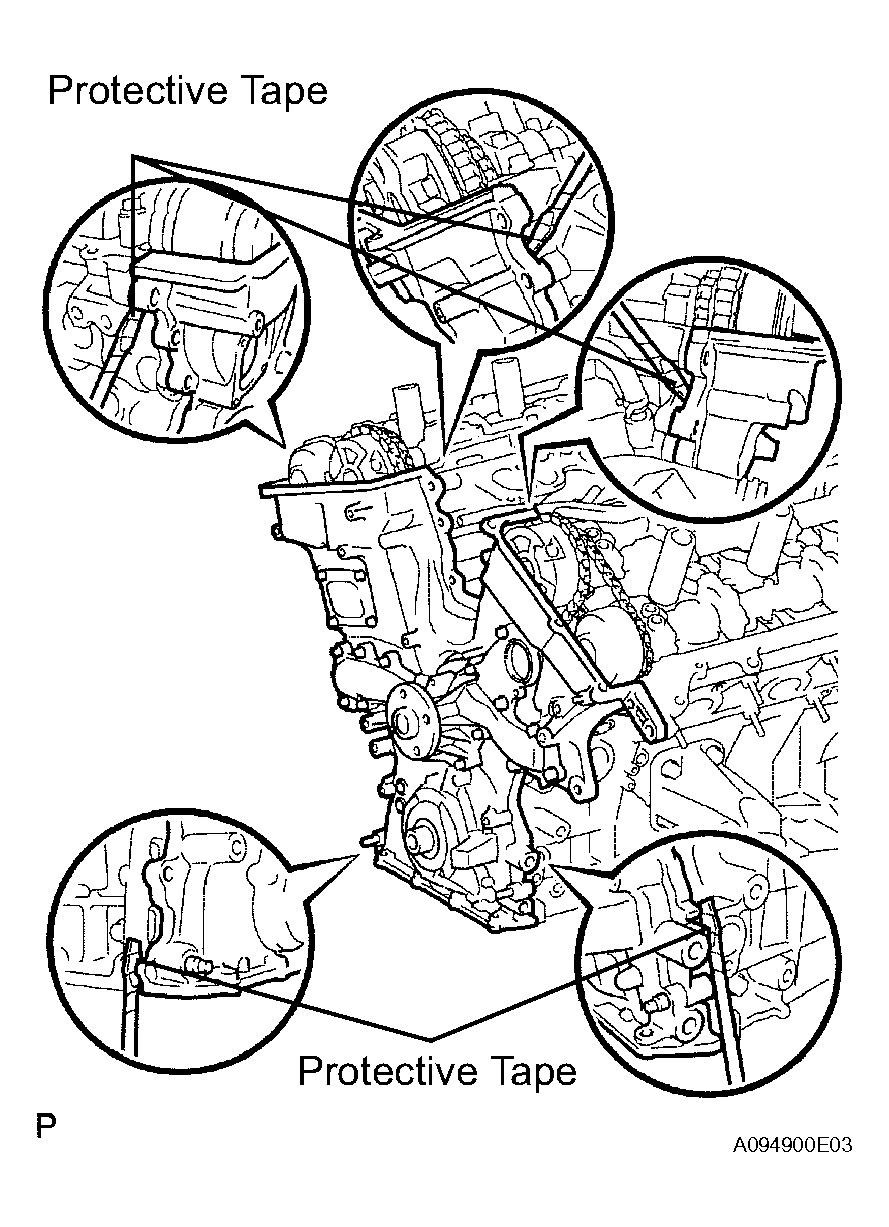

      Fig 3: Identifying Timing Chain Cover
      G04057860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket.
      Fig 4: Locating Gasket
      G04057866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. REMOVE TIMING CHAIN CASE OIL SEAL
    1. Using a screwdriver, pry out the oil seal.

      HINT:

      Tape the screwdriver tip before use.

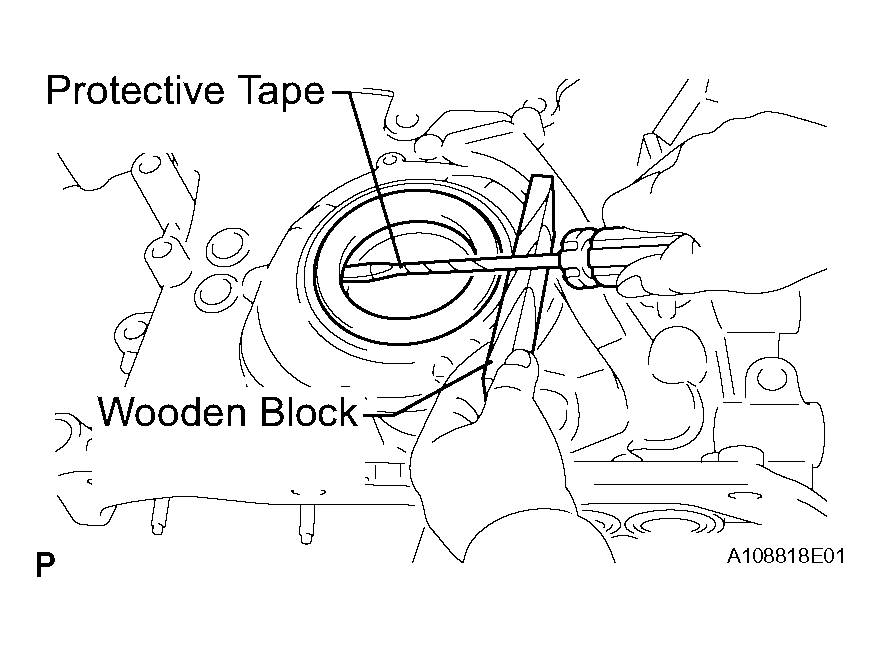

      Fig 5: Identifying Timing Chain Case Oil Seal
      G04057862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
