Engine Front Oil Seal: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR ASSEMBLY
HINT:

See REMOVAL .
REMOVE V-RIBBED BELT (See REMOVAL )
REMOVE CRANKSHAFT PULLEY
1. Using SST, loosen the pulley bolt.

  Fig 1: Loosening Crankshaft Pulley Bolt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
2. Tighten the pulley bolt to 2 or 3 threads of the crankshaft.
3. Using SST, remove the pulley bolt and pulley.
  SST 09213-70011 (09213-70020), 09330-00021

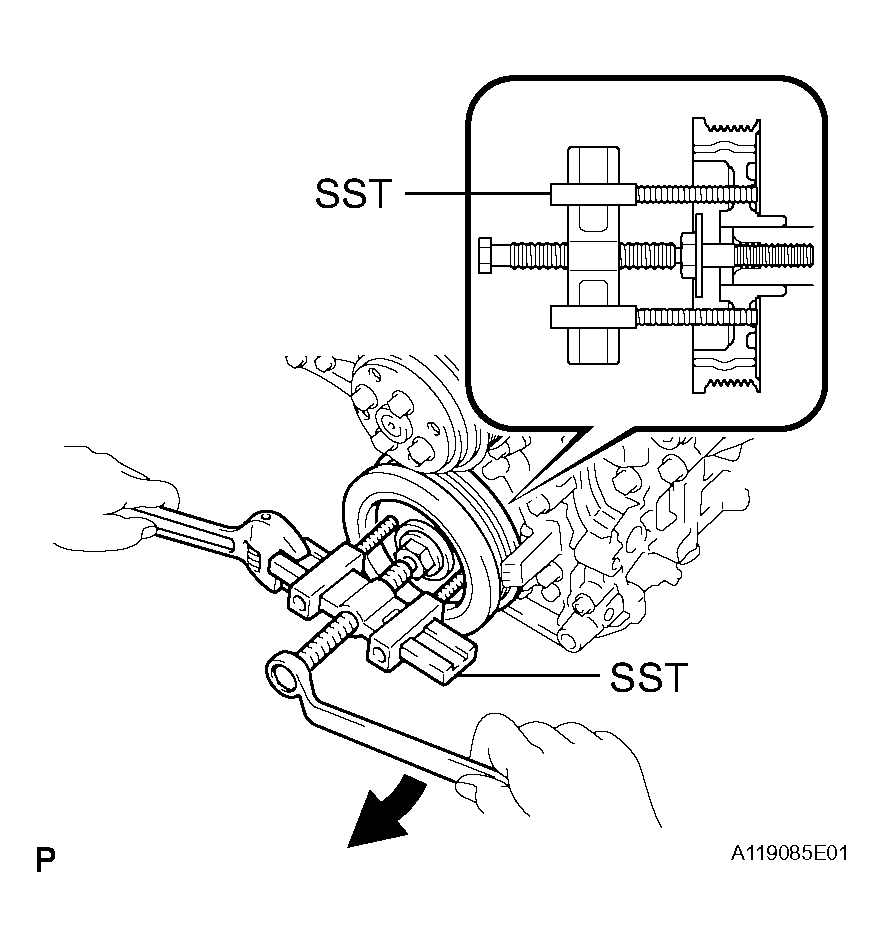

  Fig 2: Removing Pulley Bolt And Pulley Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Apply grease to the threads and tip of the SST (center bolt) prior to use.
4. Remove the pulley set key of the key groove.

  Fig 3: Identifying Pulley Set Key
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN CASE OIL SEAL
1. Using a screwdriver with its tip taped, pry out the oil seal.
  HINT:

  Tape the screwdriver tip before use.

  Fig 4: Prying Out Oil Seal Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
