Drive Belt: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL   )
  2. REMOVE NO. 1 INLET AIR CLEANER (See  REMOVAL   )
  3. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  4. REMOVE V-RIBBED BELT
    1. While releasing the belt tension by turning the belt tensioner counterclockwise, and remove the Vribbed belt from the belt tensioner.

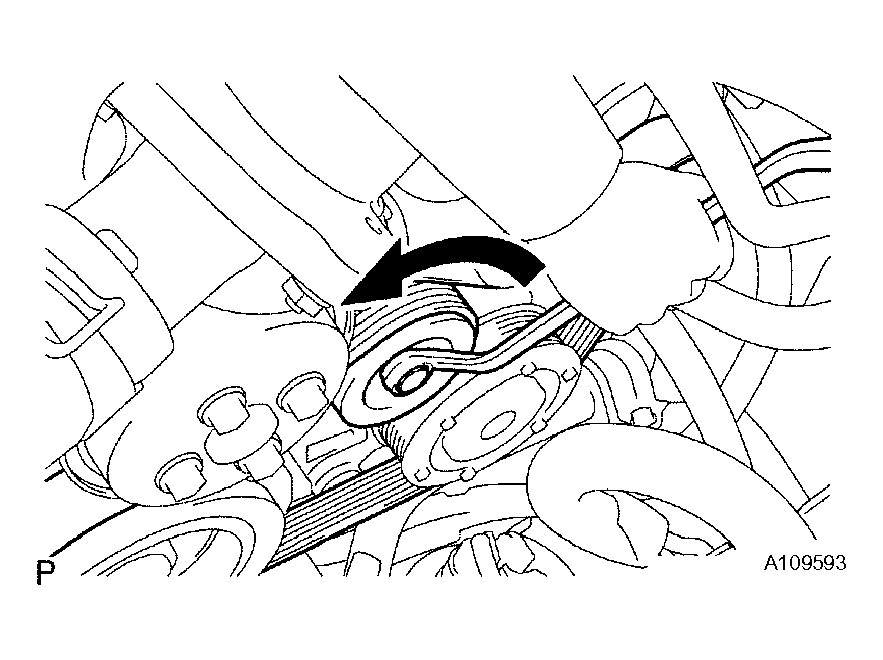

      Fig 1: Identifying V-Ribbed Belt
      G04055908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While turning the belt tensioner counterclockwise, align with its holes, and then insert the 5 mm bihexagon wrench into the holes to fix the belt tensioner.

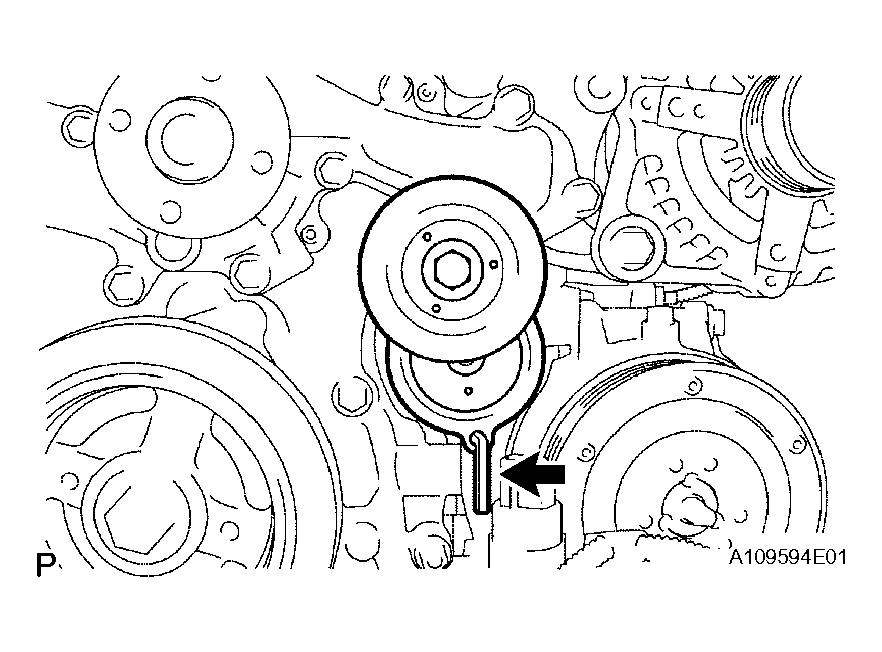

      Fig 2: Inserting Bihexagon Wrench Into Holes
      G04055909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
