Brake Pedal: Removal

  1. PRECAUTION

    HINT:

    (See PRECAUTION )

  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE ENGINE ROOM SIDE COVER LH (See Step 2 in  REMOVAL  )
  4. REMOVE ENGINE ROOM SIDE COVER RH (See Step 3 in  REMOVAL  )
  5. REMOVE FRONT UPPER FENDER PROTECTOR LH (See Step 4 in  REMOVAL  )
  6. REMOVE FRONT UPPER FENDER PROTECTOR RH (See Step 5 in  REMOVAL  )
  7. REMOVE ROOF DRIP SIDE FINISH MOLDING LH (See  REMOVAL  )
  8. REMOVE ROOF DRIP SIDE FINISH MOLDING RH (See Step 7 in  REMOVAL  )
  9. REMOVE FRONT WIPER ARM HEAD CAP (See Step 8 in  REMOVAL  )
  10. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See Step 9 in  REMOVAL  )
  11. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See Step 10 in  REMOVAL  )
  12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (See Step 11 in  REMOVAL  )
  13. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the terminal to prevent airbag deployment.
  14. SEPARATE NO. 3 ENGINE ROOM RELAY BLOCK
  15. REMOVE FRONT WHEEL
  16. DRAIN BRAKE FLUID
    NOTE: If brake fluid leaks onto any painted surface, wash off or remove the brake fluid completely.
  17. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See Step 50 in  REMOVAL  )
  18. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 52 in  REMOVAL  )
  19. REMOVE FRONT DOOR OPENING TRIM COVER LH (See Step 27 in  REMOVAL  )
  20. REMOVE INSTRUMENT SIDE PANEL LH (See Step 28 in  REMOVAL  )
  21. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 29 in  REMOVAL  )
  22. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 30 in  REMOVAL  )
  23. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See Step 9 in  REMOVAL  )
  24. REMOVE BRAKE ACTUATOR ASSEMBLY WITH BRACKET (See Step 14 in  REMOVAL  )
  25. SEPARATE CLUTCH RESERVOIR HOSE (for Manual Transmission) (See Step 15 in  REMOVAL   )
  26. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY (See Step 16 in  REMOVAL   )
  27. REMOVE BRAKE PEDAL RETURN SPRING (See Step 26 in  REMOVAL   )
  28. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS (See Step 27 in  REMOVAL   )
  29. REMOVE BRAKE BOOSTER ASSEMBLY (See Step 28 in  REMOVAL   )
  30. REMOVE BRAKE BOOSTER GASKET
    1. Remove the brake booster gasket.
  31. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
    1. Disconnect the 2 connectors.

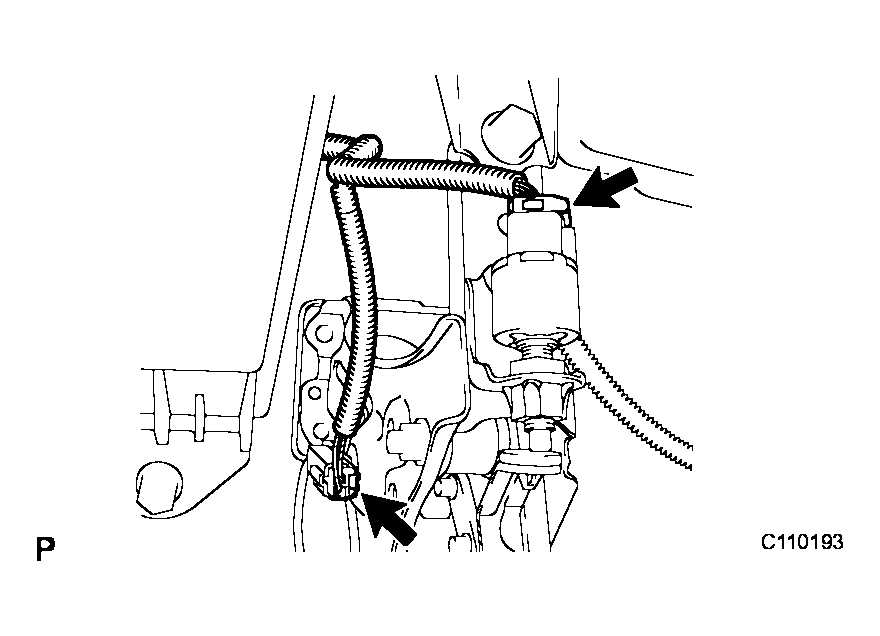

      Fig 1: Disconnecting Connectors
      G04047758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and brake pedal support assembly.
  32. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Loosen the lock nut and remove the stop light switch assembly.
  33. REMOVE CUSHION
    1. Remove the cushion.
  34. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad.
Fig 2: Locating Brake Pedal Support Assembly Bolt
G04025314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
