Rear Seat Outer Belt Assembly With PRETENSIONER: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the RH side.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
3. REMOVE REAR SEAT HEADREST ASSEMBLY RH AND LH
4. REMOVE REAR SEATBACK ASSEMBLY (See  REMOVAL  )
5. REMOVE REAR DOOR SCUFF PLATE (See  REMOVAL  )
6. REMOVE REAR SEAT SIDE GARNISH (See  REMOVAL  )
7. REMOVE ROOF SIDE GARNISH (See  REMOVAL  )
8. REMOVE REAR SEAT OUTER BELT ANCHOR
   1. Remove the bolt and anchor part of the rear seat outer belt assembly.
      Fig 1: Identifying Bolt And Anchor Part Of Rear Seat Outer Belt Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR SEAT INNER WITH CENTER BELT ANCHOR RH

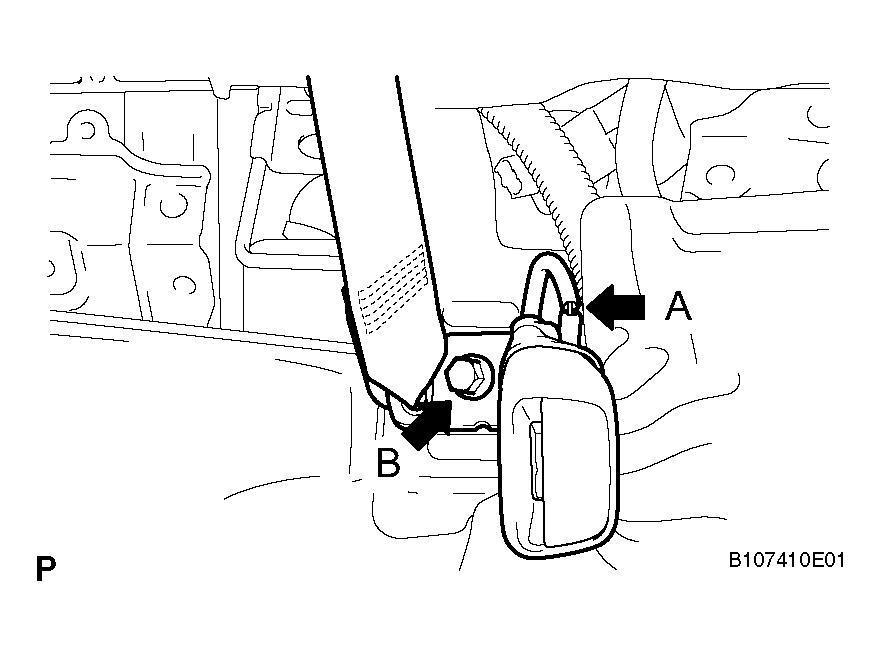

   1. Disconnect the connector labeled A.
   2. Remove the bolt and seat belt labeled B.
10. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See  REMOVAL   )
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (See  REMOVAL   )
    Fig 2: Identifying Bolt And Seat Belt Labeled B

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR SEAT OUTER BELT ASSEMBLY

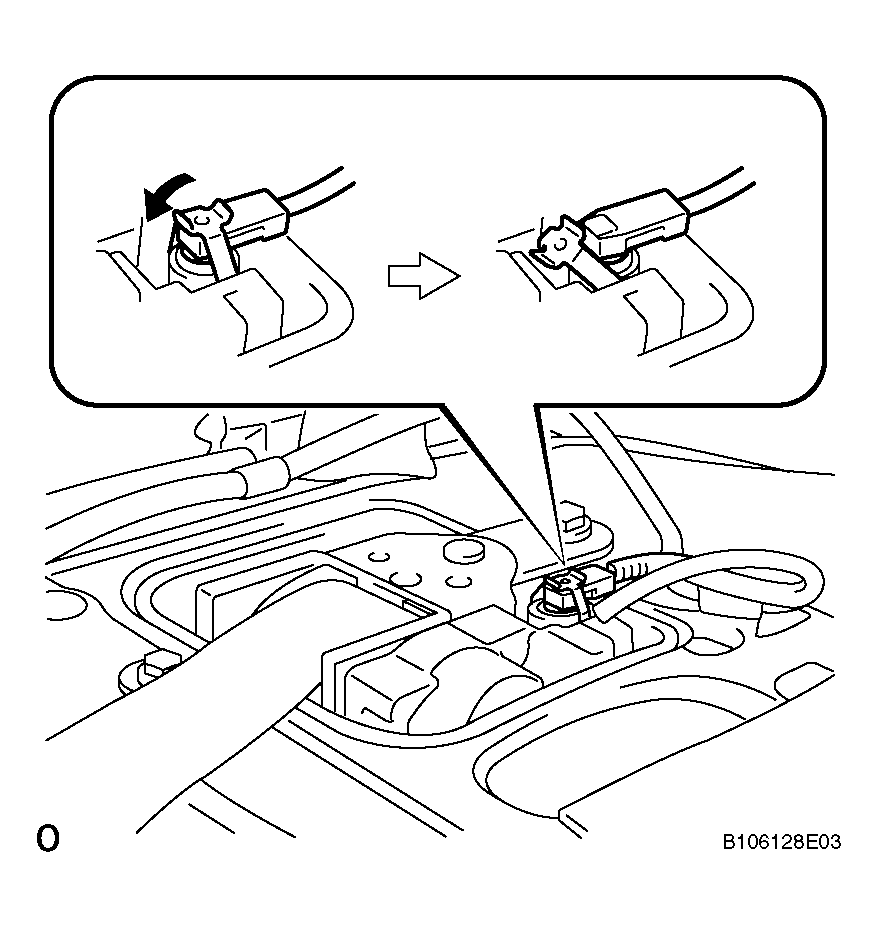

    1. Disconnect the pretensioner connector, as shown in the illustration.
    2. Disconnect the tension reducer connector.
       Fig 3: Identifying Pretensioner Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and seat belt.
       Fig 4: Identifying Seat Belt Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
