Rear Seat Inner Belt Assembly: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart SS-2.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
3. REMOVE REAR SEAT BELT OUTER ANCHOR
   1. Remove the bolt and anchor.
      Fig 1: Identifying Rear Seat Belt Outer Anchor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

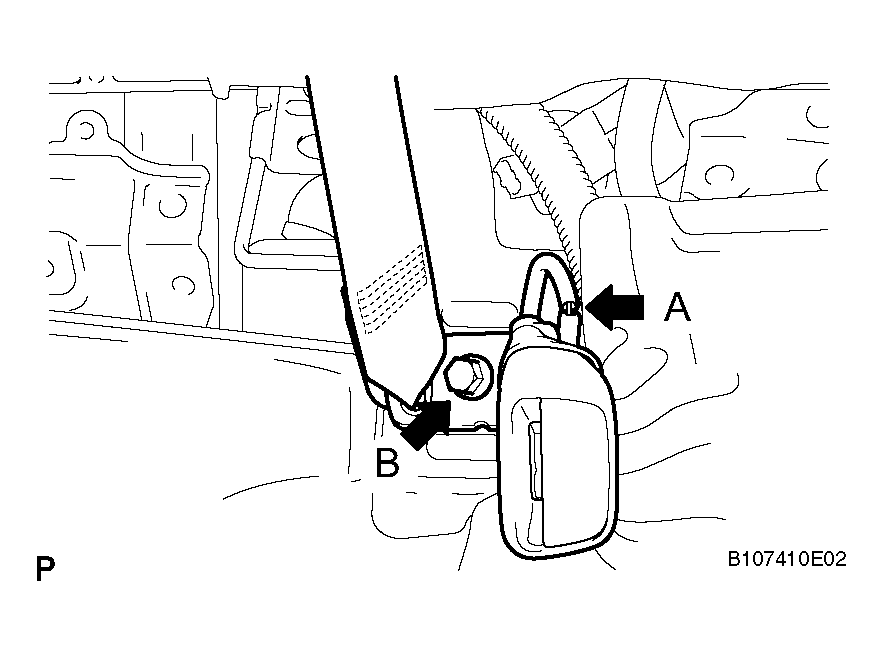

   1. Disconnect the connector labeled A.
   2. Remove the bolt and the anchor part of the rear seat inner with center belt assembly RH labeled B.
      Fig 2: Identifying Rear Seat Inner With Center Belt Assembly RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR SEAT WITH CENTER BELT ASSEMBLY LH
   1. Disconnect the connector labeled A.
   2. Remove the bolt and the anchor part of the rear seat inner with center belt assembly LH labeled B.
      Fig 3: Identifying Rear Seat With Center Belt Assembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REAR SEAT HEADREST ASSEMBLY RH AND LH
   1. Remove the 2 headrests.
7. REMOVE REAR SEATBACK ASSEMBLY (See  REMOVAL  )
8. REMOVE REAR DOOR SCUFF PLATE (See  REMOVAL  )
9. REMOVE REAR SEAT SIDE GARNISH (See  REMOVAL  )
10. REMOVE ROOF SIDE GARNISH INNER (See  REMOVAL  )
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
    1. Using a moulding remover, detach the 4 claws and remove the belt guide LH.

       HINT:

       Use the same procedures described for the RH side.

       Fig 4: Identifying Belt Guide LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a moulding remover, detach the 4 claws and remove the belt guide center.
       Fig 5: Identifying Belt Guide Center

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clip and remove the panel.
       Fig 6: Identifying Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

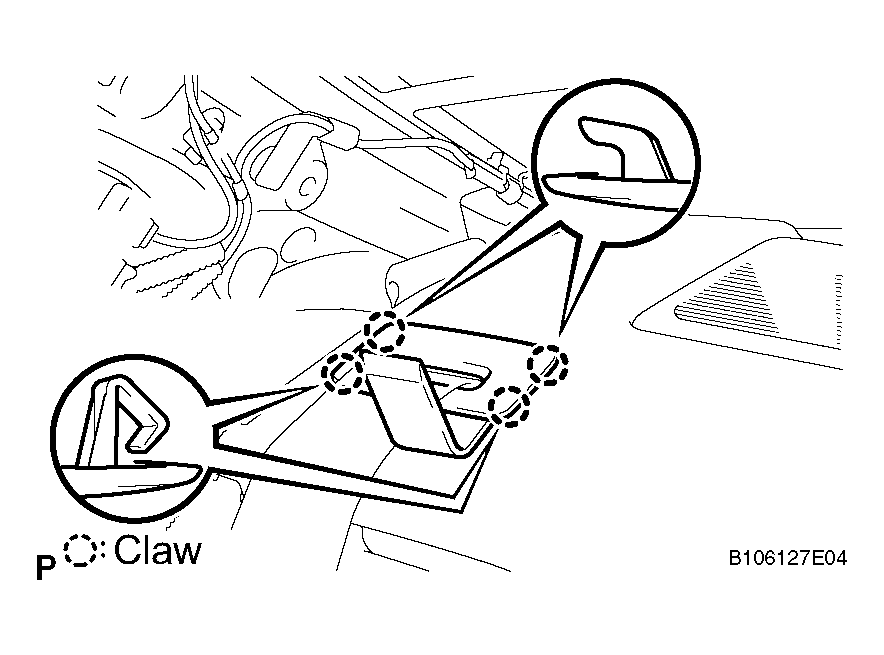

    1. Using a moulding remover, detach the 4 claws and remove the guide part of the rear seat outer belt assembly.
       Fig 7: Identifying Guide Part Of Rear Seat Outer Belt Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a moulding remover, detach the 4 claws and remove the guide part of the rear seat inner with center belt assembly RH.
       Fig 8: Identifying Guide Part Of Rear Seat Inner With Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

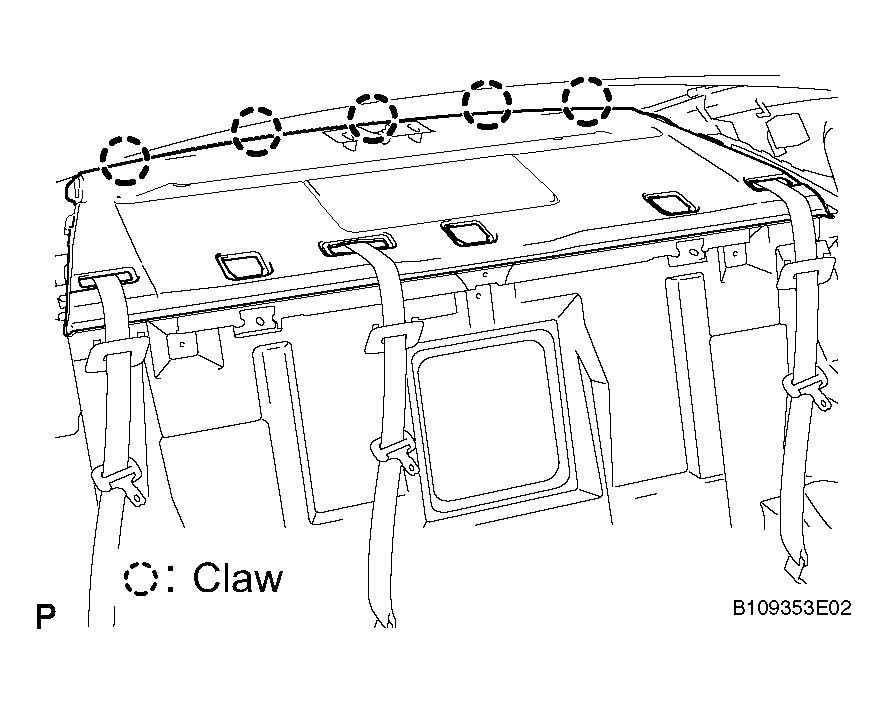

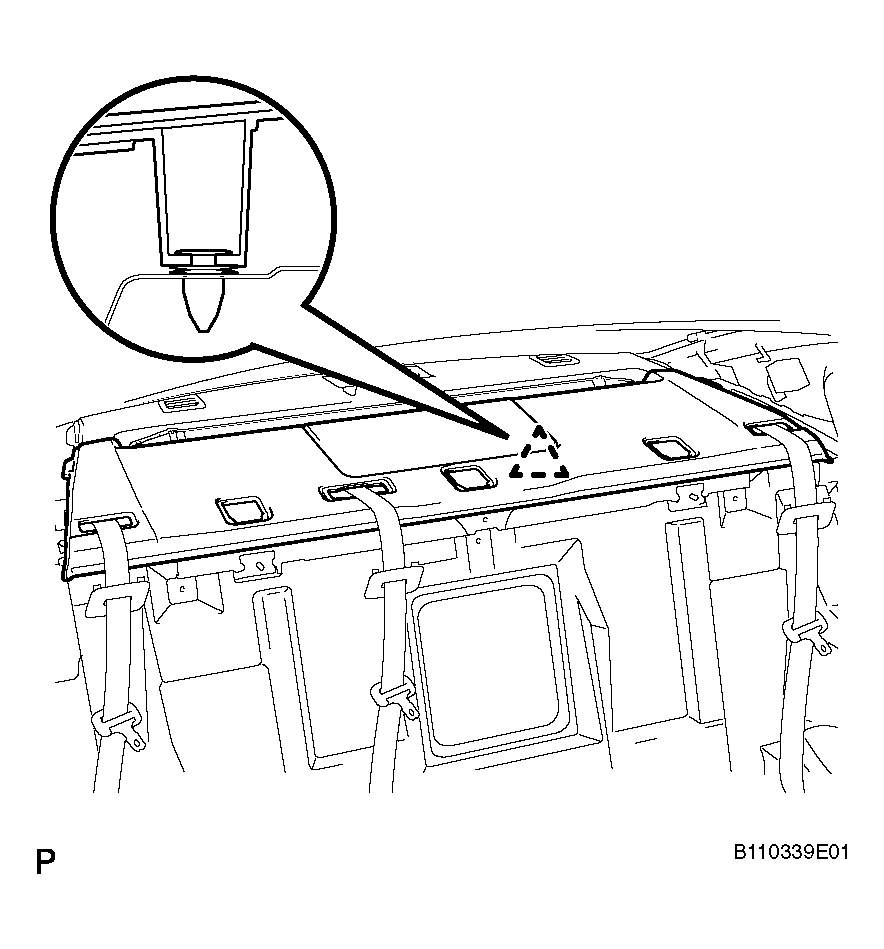

    3. Detach the clip and 5 claws.
    4. Disconnect the connector and remove the package tray trim panel.
       Fig 9: Identifying Package Tray Trim Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Remove the bolt and rear seat inner with center belt assembly RH.
       Fig 10: Identifying Bolt And Rear Seat Inner With Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
