Rear Seat Assembly: Removal

REMOVE REAR SEAT CUSHION ASSEMBLY
1. Detach the seat cushion's 2 front hooks from the vehicle body.
  NOTE: Follow the instructions below carefully as the cushion frame deforms easily.

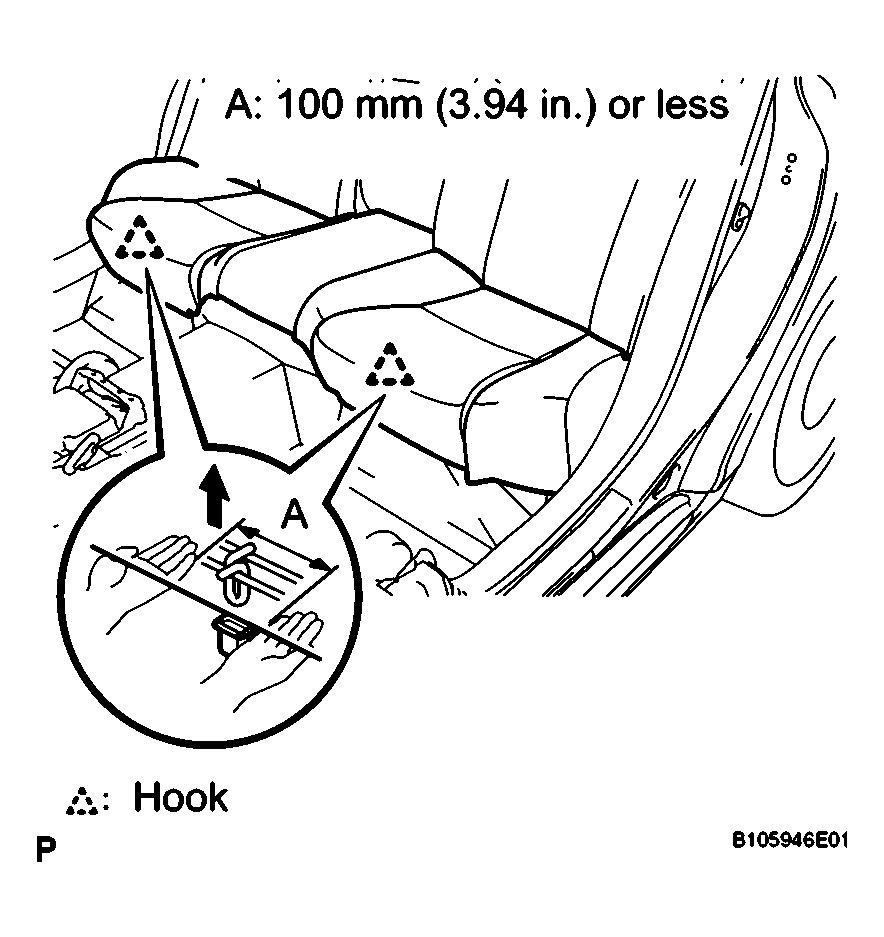

  1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
  2. Repeat for the other hook.
2. Detach the seat cushion's 2 rear hooks from the seatback.
3. Remove the seat cushion.

  Fig 1: Identifying Rear Seat Cushion Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST ASSEMBLY LH AND RH
REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
REMOVE REAR SEATBACK ASSEMBLY

Fig 2: Identifying Rear Seatback Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

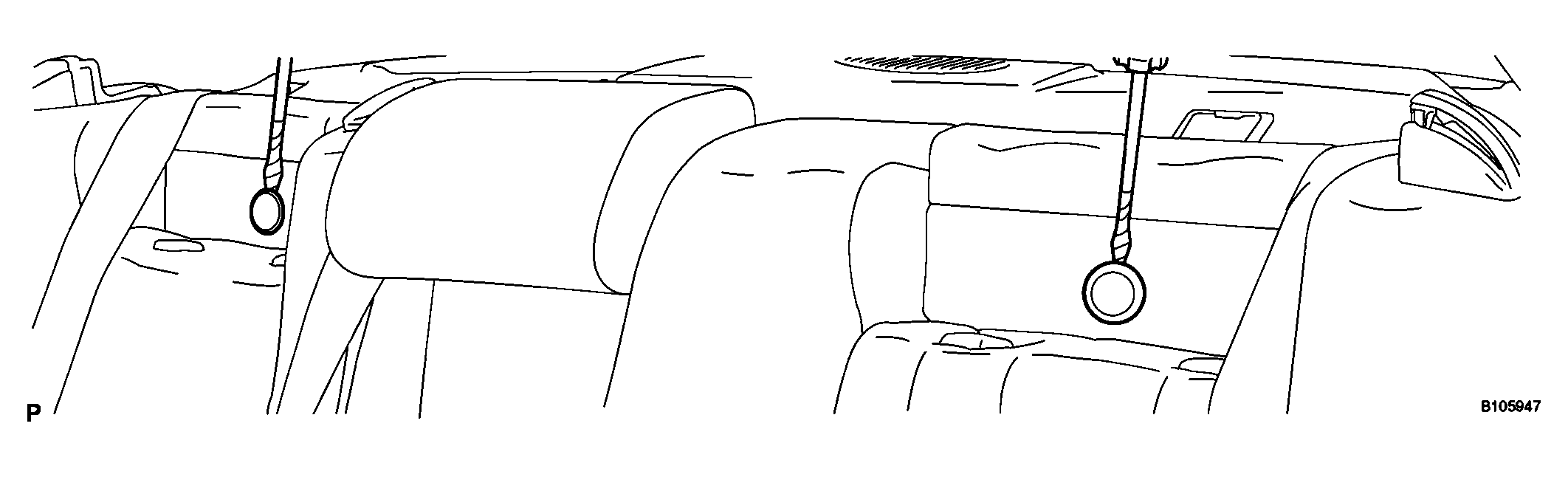

1. Using a screwdriver, detach the claws and remove the 2 rear seat covers.
  HINT:

  Tape the screwdriver tip before use.
2. Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.
3. Remove the bolt and floor anchor part.

  Fig 3: Identifying Bolt And Floor Anchor Part
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

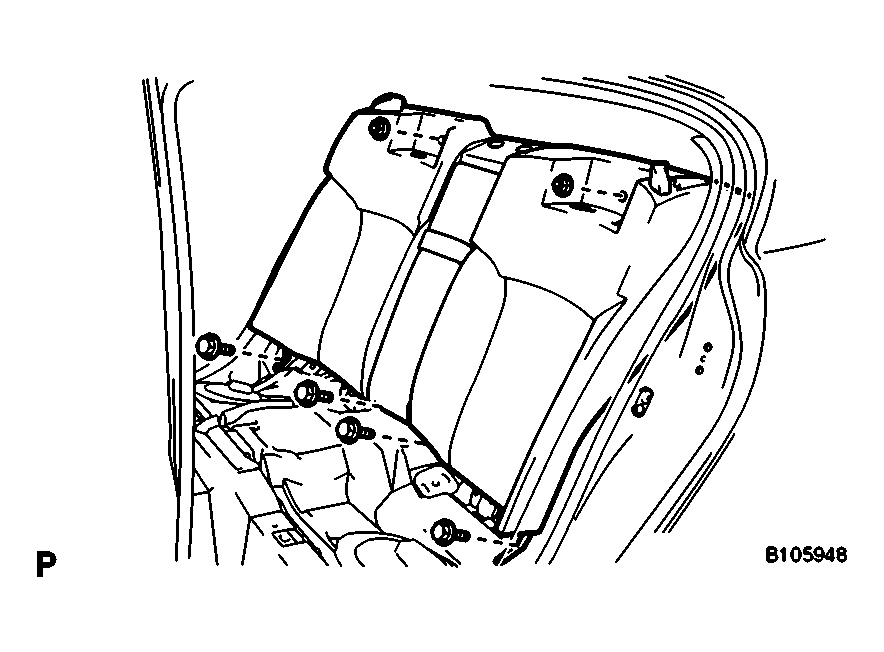

4. Remove the 4 bolts and 2 nuts.
5. Remove the seatback.

  Fig 4: Identifying Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
