Roof Headlining: Removal

HINT:

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    Remove the front seat outer belt assembly. (See REMOVAL )

  3. REMOVE FRONT SEAT ASSEMBLY

    Remove the front seat assembly. (See REMOVAL )

  4. REMOVE REAR SEAT CUSHION ASSEMBLY

    Remove the rear seat cushion assembly. (See REMOVAL )

  5. REMOVE REAR SEAT HEADREST ASSEMBLY LH

    Remove the rear seat headrest assembly. RH (See REMOVAL )

  6. REMOVE REAR SEAT HEADREST ASSEMBLY RH

    Remove the rear seat headrest assembly. (See REMOVAL )

  7. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER

    Remove the rear seat headrest assembly center. (See REMOVAL )

  8. REMOVE REAR SEATBACK ASSEMBLY

    Remove rear seatback assembly. (See REMOVAL )

  9. REMOVE CONSOLE BOX

    Remove the console box. (See REMOVAL )

  10. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a moulding remover, detach the 5 claws and remove the scuff plate.

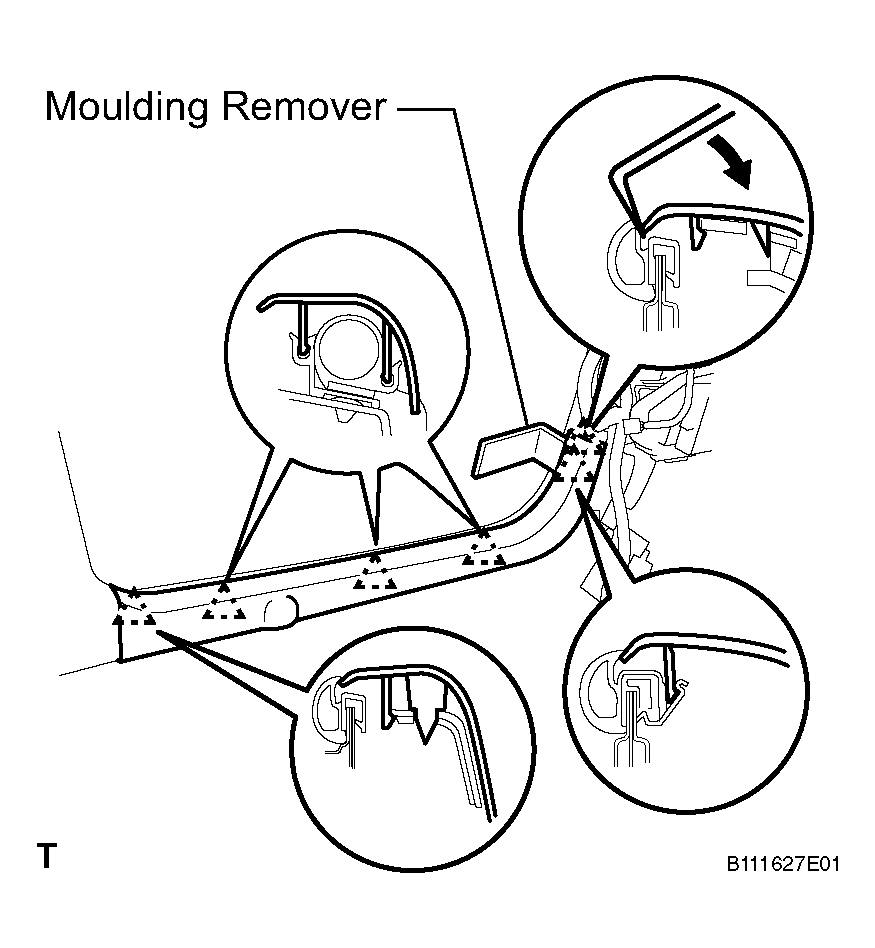

      Fig 1: Identifying Claws And Scuff Plate LH
      G04023932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  12. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Using a moulding remover, detach the 3 claws and remove the trim cover.
  13. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedures described for the LH side.

  14. REMOVE FRONT PILLAR GARNISH LH

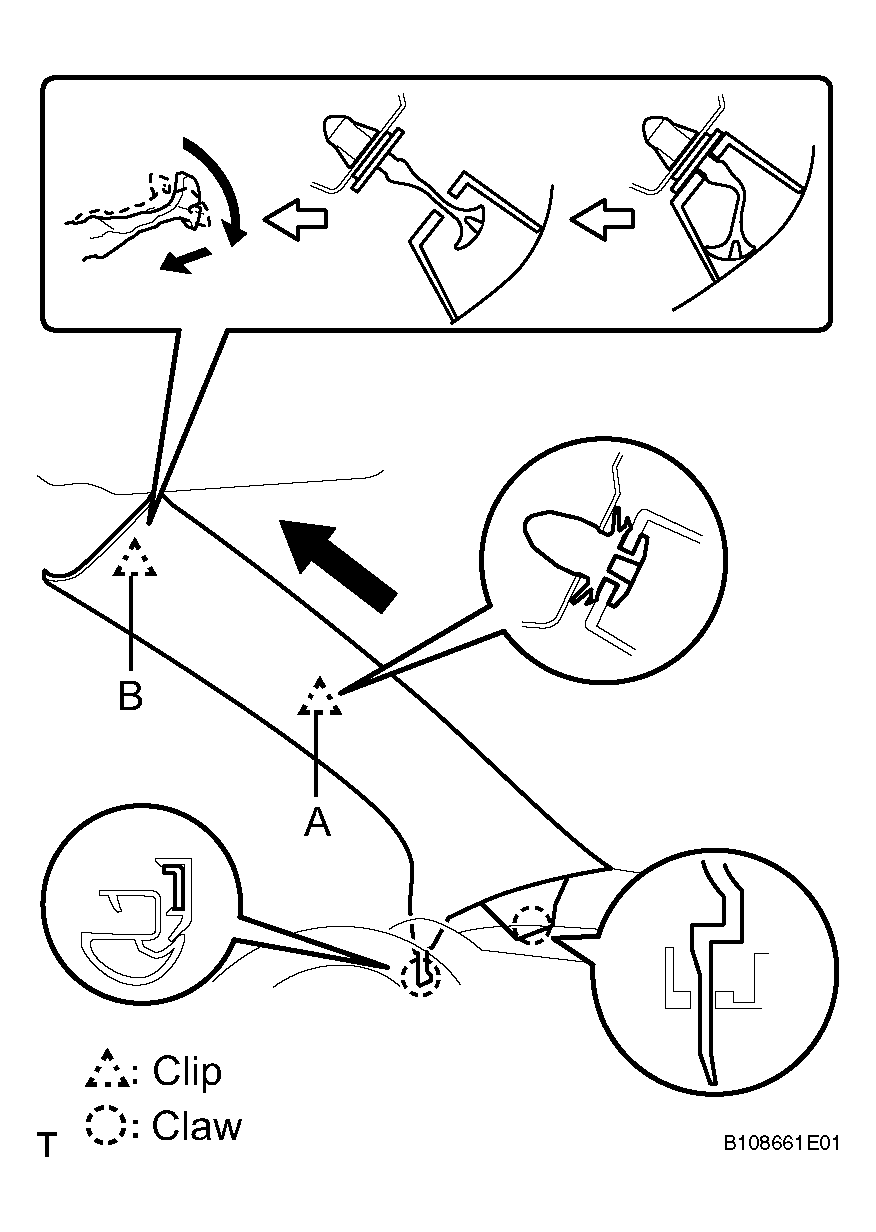

    1. Detach the clip labeled A from the vehicle body. Pull the pillar garnish so that the tip of B locks in the pillar garnish's hole.
    2. Using needle-nose pliers, rotate clip B 90° and remove the pillar garnish.

      HINT:

      If clip B is removed from the vehicle body or is damaged, replace it with a new one.

      Fig 2: Identifying Front Pillar Garnish LH
      G04023933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

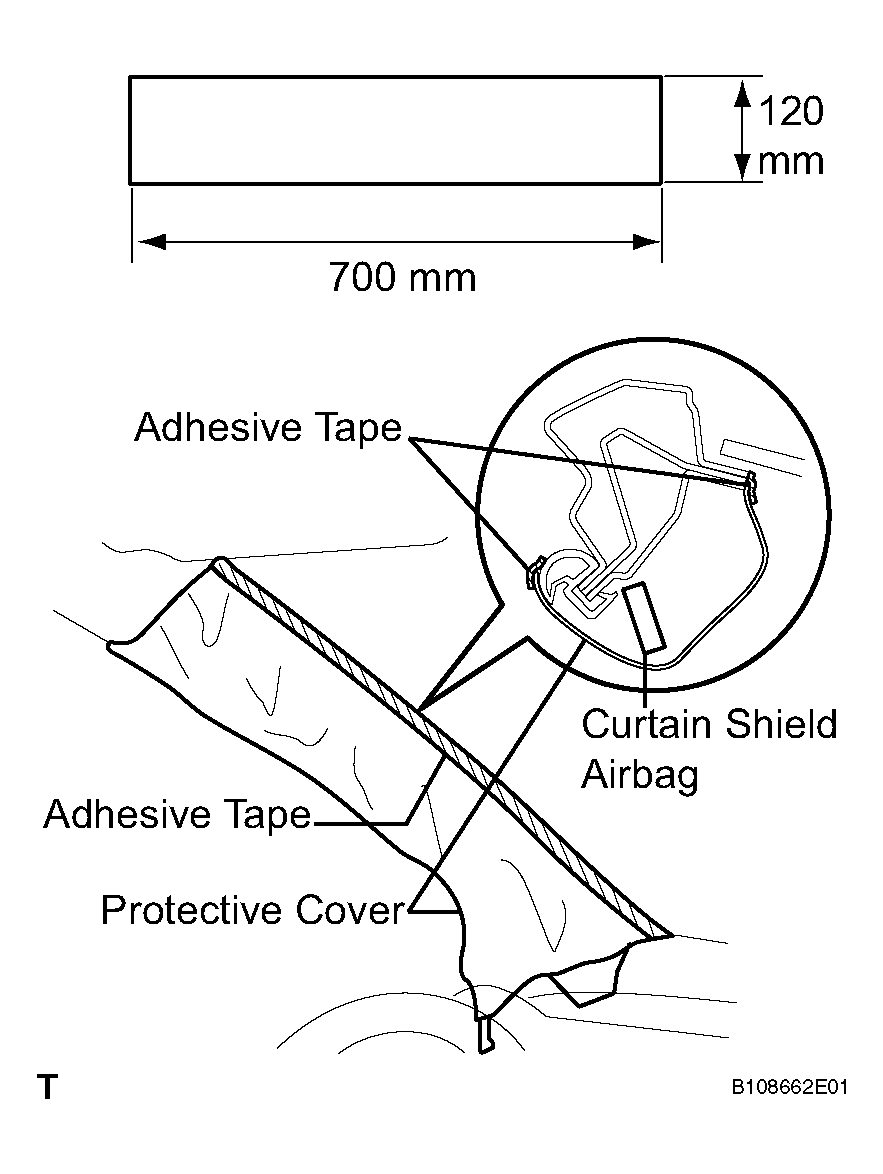

    3. Protect the curtain shield airbag.
      1. Thoroughly cover the airbag with a cloth or nylon sheet that is 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  15. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 3: Identifying Front Pillar Garnish RH
    G04023934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR DOOR SCUFF PLATE LH
    1. Detach the 5 claws and remove the scuff plate.

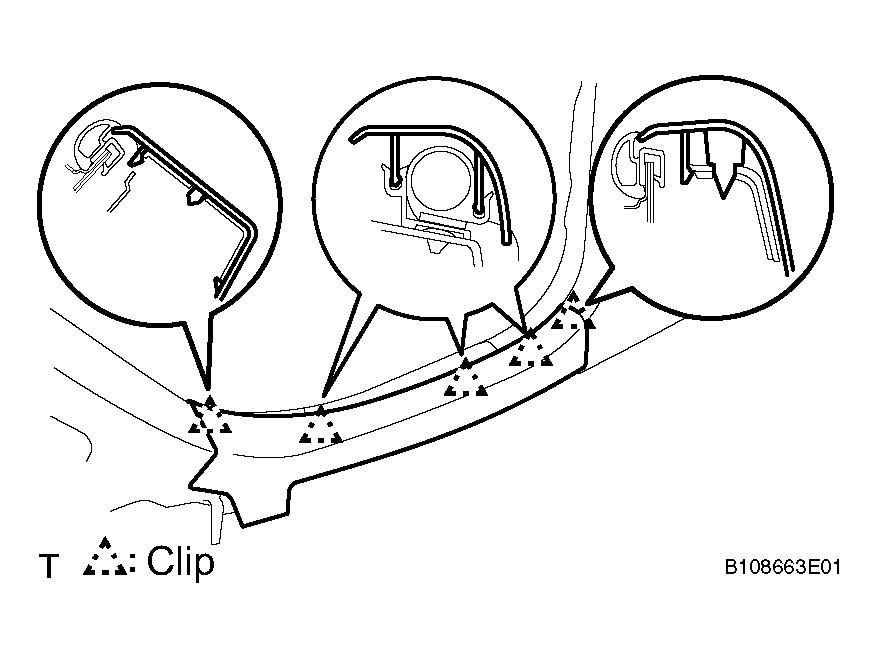

      Fig 4: Identifying Claws And Scuff Plate LH
      G04023935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

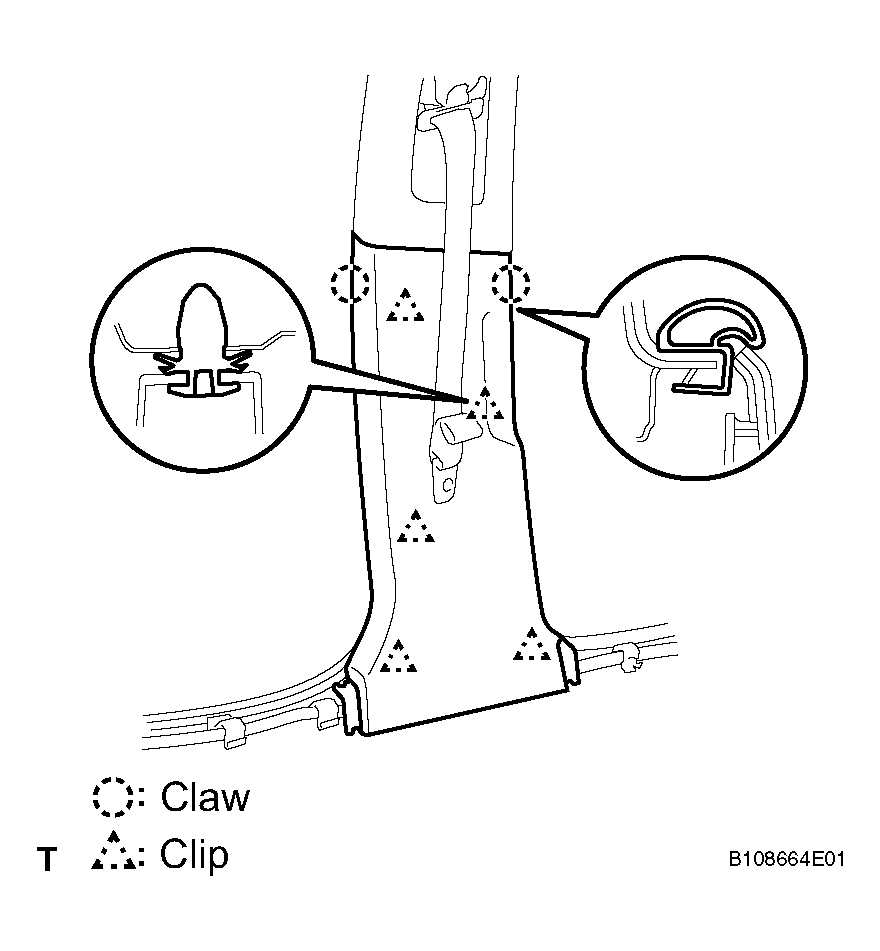

  18. REMOVE CENTER PILLAR GARNISH LOWER LH
    1. Detach the 2 claws and 5 clips, and remove the garnish.
      Fig 5: Identifying Claws, Clips And Garnish
      G04023936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE CENTER PILLAR GARNISH LOWER RH

    HINT:

    Use the same procedures described for the LH side.

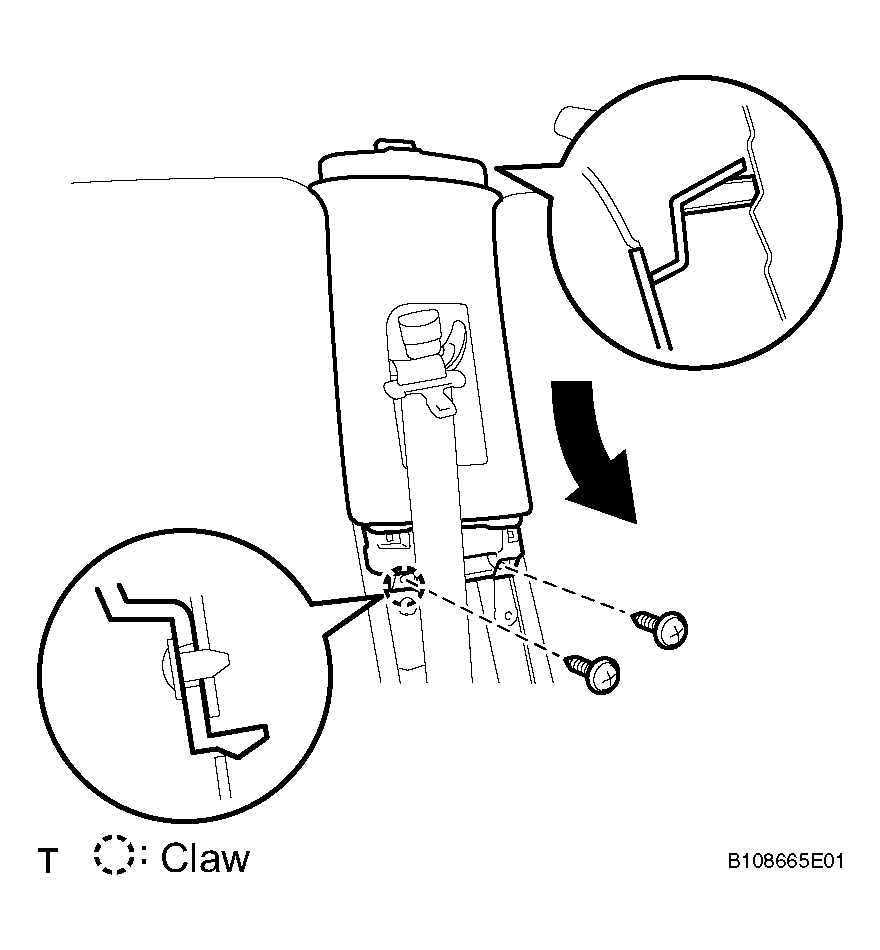

  20. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Pull the garnish in the direction indicated by the arrow in the illustration to detach the claw. Then remove the garnish.
      Fig 6: Identifying Screws And Center Pillar Garnish LH
      G04023937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

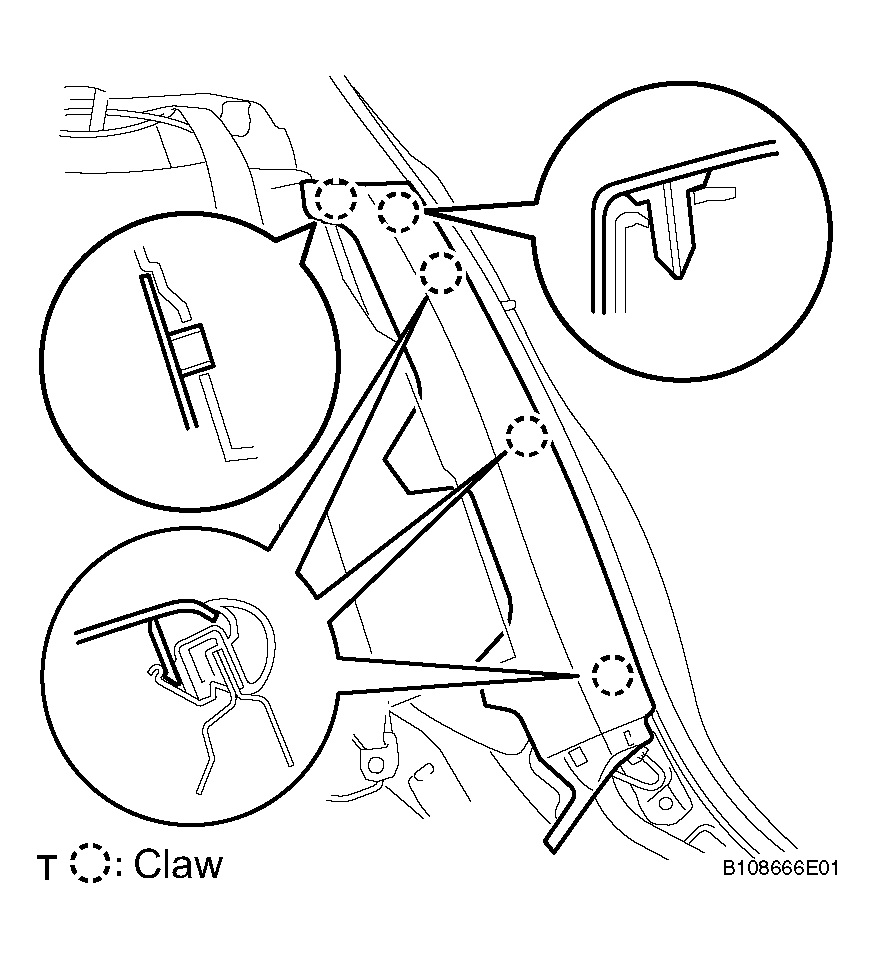

  22. REMOVE REAR SEAT SIDE GARNISH LH
    1. Using a moulding remover, pull the garnish in the direction indicated by the arrow in the illustration to detach the 5claws. Then remove the garnish.
      Fig 7: Identifying Rear Seat Side Garnish LH
      G04023938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  24. REMOVE ROOF SIDE GARNISH INNER LH
    1. Detach the 4 clips.
    2. Pull the garnish in the direction indicated by the arrow in the illustration to detach the 2 claws. Then remove the garnish.

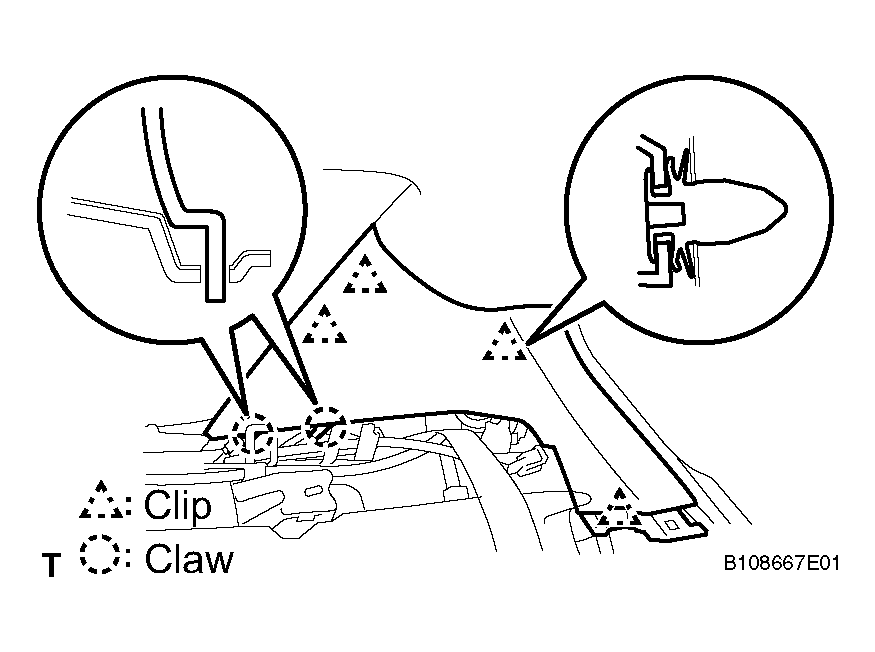

      Fig 8: Identifying Roof Side Garnish Inner LH
      G04023939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE ROOF SIDE GARNISH INNER RH

    HINT:

    Use the same procedures described for the LH side.

  26. REMOVE REAR VIEW MIRROR COVER INNER
    1. Pull the cover in the direction indicated by the arrow in the illustration. Then remove the cover.
      Fig 9: Identifying Rear View Mirror Cover Inner
      G04023940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

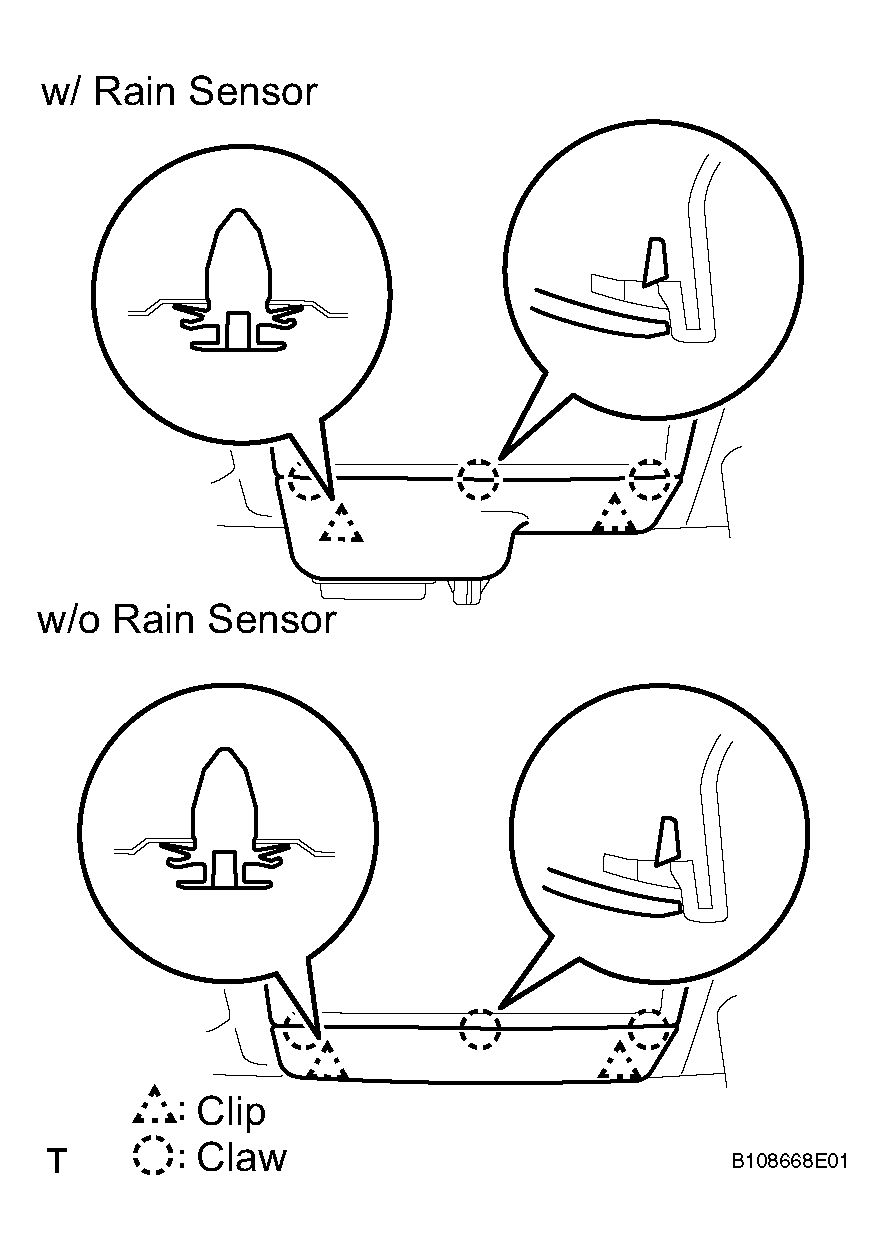

  27. REMOVE FRONT ROOF TOP GARNISH
    1. With rain sensor:

      Remove the top garnish.

      1. Using a screwdriver, detach the 3 claws and 2 clips, and remove the top garnish.

        HINT:

        Tape the screwdriver tip before use.

    2. Without rain sensor:

      Remove the top garnish.

      1. Using a screwdriver, detach the 3 claws and 2 clips, and remove the top garnish.

        HINT:

        Tape the screwdriver tip before use.

        Fig 10: Identifying Top Garnish With Or Without Rain Sensor
        G04023941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE PERSONAL LIGHT ASSEMBLY
    1. Using a screwdriver, remove the 2 covers and 2 screws.
    2. Using a moulding remover, detach the 2 clips and 3 claws.
    3. Disconnect the connector and remove the personal light.

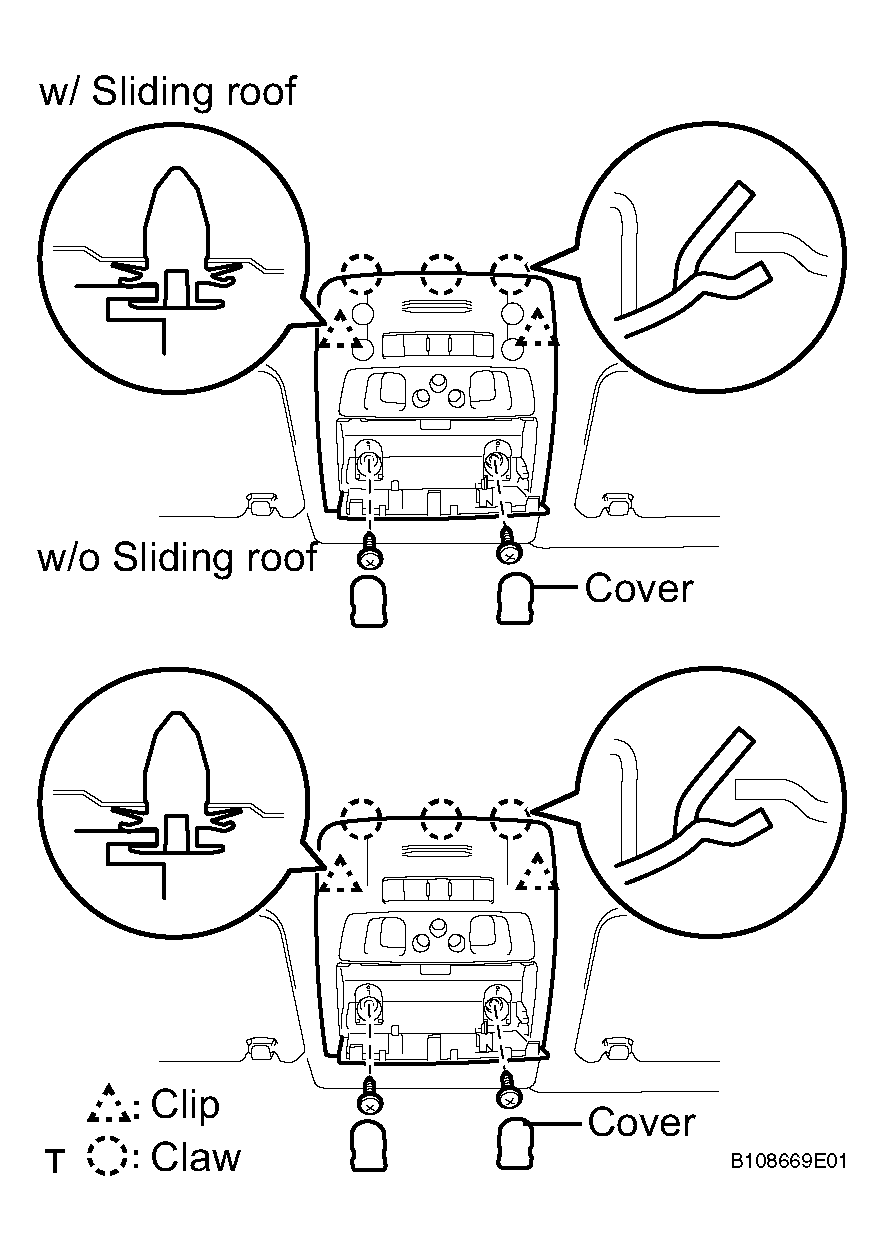

      Fig 11: Identifying Personal Light With Or Without Sliding Roof
      G04023942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR VIEW MIRROR ASSEMBLY INNER

    REMOVAL

  30. REMOVE REAR ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the rear room light from the vehicle body.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connector from the room light.
      Fig 12: Identifying Rear Room Light
      G04023943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE STEERING SPOTLIGHT ASSEMBLY
    1. Using a moulding remover, detach the 2 claws and remove the spotlight.
    2. Disconnect the connector.
  32. REMOVE ASSIST GRIP ASSEMBLY
    1. Without Sliding roof:

      Remove the assist grip.

      1. Using a screwdriver, detach the 6 claws and remove the 2 assist grip covers.

        HINT:

        Tape the screwdriver tip before use.

        Fig 13: Identifying Assist Grip Covers Without Sliding Roof
        G04023944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 2 claws in the order shown in the illustration.

        HINT:

        Repeat for the other side and remove the assist grip.

        Fig 14: Identifying Assist Grip Without Sliding Roof
        G04023945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. With sliding roof:

      Remove the assist grip.

      1. Using a screwdriver, detach the 6 claws and remove the 2 assist grip covers.

        HINT:

        Tape the screwdriver tip before use.

        Fig 15: Identifying Assist Grip Covers With Sliding Roof
        G04023946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 2 claws in the order shown in the illustration.

        HINT:

        Repeat for the other side and remove the assist grip.

        Fig 16: Identifying Assist Grip With Sliding Roof
        G04023947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE VISOR BRACKET COVER
    1. Using a moulding remover, detach the 4 claws and remove the cover.
      Fig 17: Identifying Visor Bracket Cover
      G04023948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor.
  35. REMOVE VISOR ASSEMBLY RH
    1. Remove the 2 screws and visor.
  36. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.
      Fig 18: Identifying Visor Holder
      G04023949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

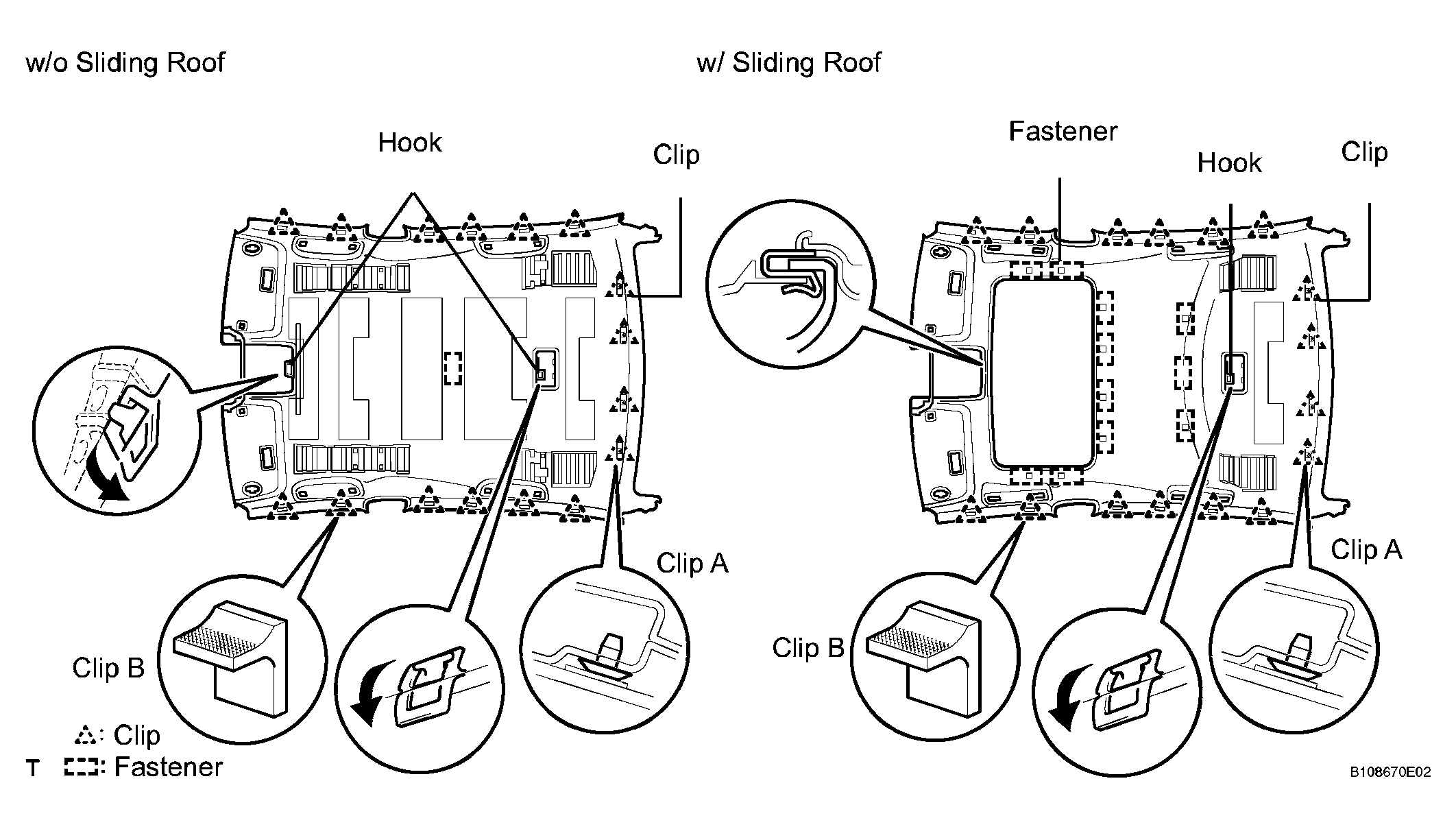

  37. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the roof wire and connector from the front pillar.
    2. Detach the 4 clips labeled A and 12 clips labeled B.
    3. Without sliding roof:
      1. Detach the 2 hooks and fastener from the vehicle body side.
    4. With sliding roof:
      1. Detach the hook and claw from the vehicle body side.
      2. Disconnect the connector from the drive gear.
      3. Detach the 4 clips labeled A and 12 clips labeled B, and 11 fasteners.
        Fig 19: Identifying Connector From Drive Gear With Sliding Roof
        G04023950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

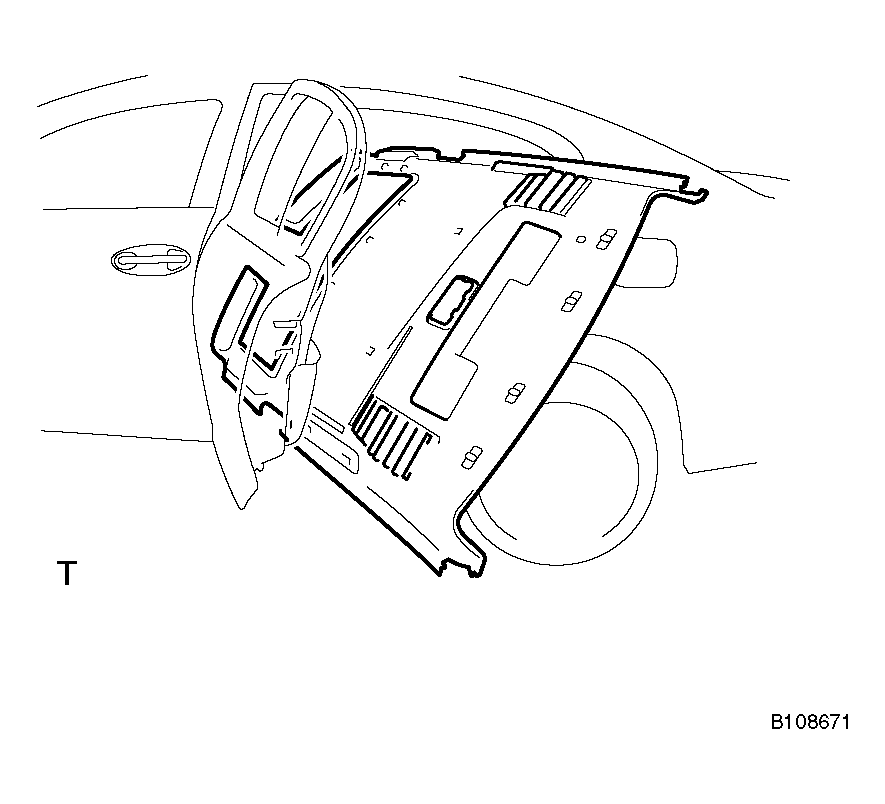

    5. Remove the roof headlining from the vehicle through the rear door, as shown in the illustration.
    6. Only when replacing the roof headlining:
      1. Remove the 11 fasteners from the roof headlining.
  38. REMOVE VANITY LIGHT ASSEMBLY
    1. Using a screwdriver, detach the claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Spread apart the detached claws and remove the bulb holder from the vanity light.
      Fig 20: Identifying Claws And Bulb Holder From Vanity Light
      G04023951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Only when replacing the roof headlining:
      1. Detach the claw and remove the vanity light assembly.
        Fig 21: Identifying Claw And Vanity Light Assembly
        G04023952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE ROOF NO.1 WIRE
    1. Only when replacing the roof headlining:
      1. Remove the double-sided tape and roof wire.
