Charging (3GR-FSE): Generator: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Remove the 2 nuts and cover.
  3. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  4. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  5. REMOVE ENGINE UNDER COVER (See  REMOVAL  )
  6. REMOVE V-RIBBED BELT (See  REMOVAL  )
  7. REMOVE COMPRESSOR WITH PULLEY ASSEMBLY
    1. Remove the compressor with pulley for 2WD (see REMOVAL ) or 4WD (see REMOVAL ).
  8. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt, pulley plate and idler pulley.

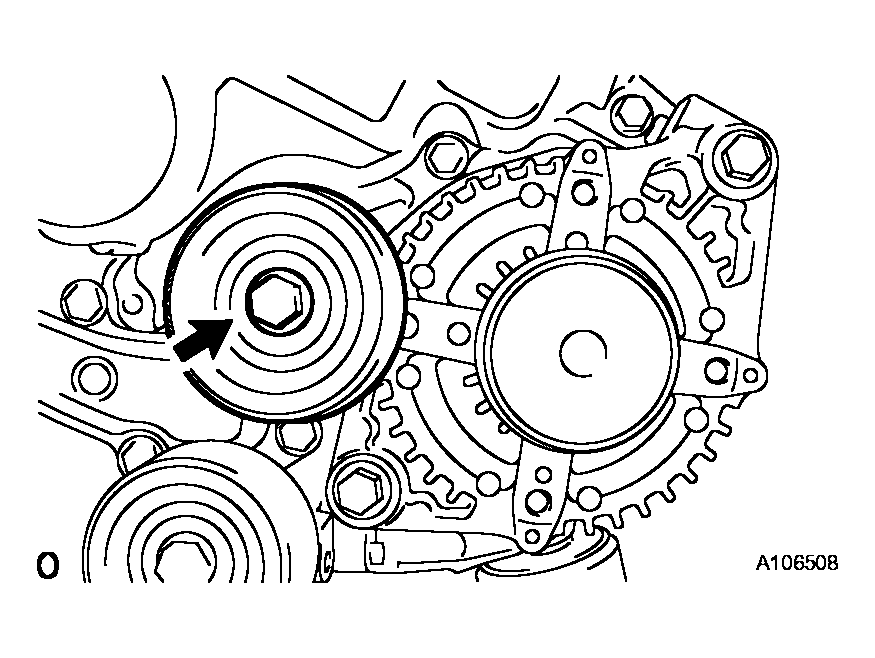

      Fig 1: Locating No.2 Idler Pulley Sub-Assembly Removing Bolt
      G04019117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE GENERATOR ASSEMBLY
    1. Detach the clamp, and remove the bolt from the generator.
    2. Disconnect the generator connector.
    3. Detach the rubber cap, and then remove the nut and battery cable.

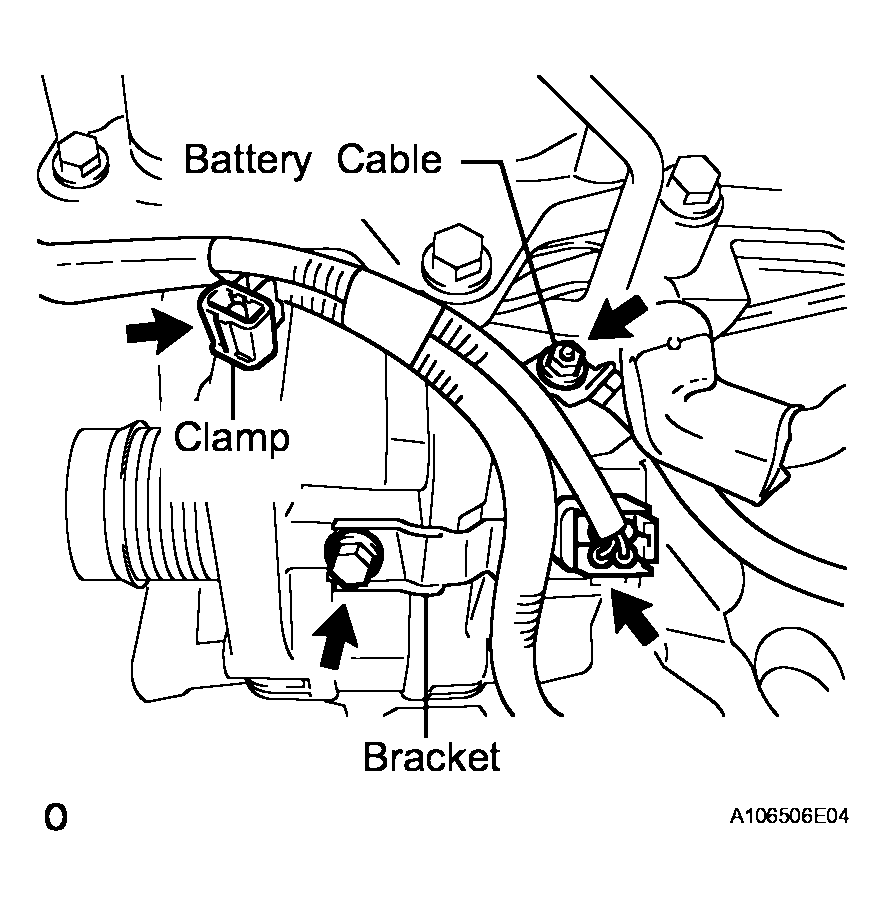

      Fig 2: Locating Generator Assembly Removing Components
      G04019118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut, bolt and generator bracket.

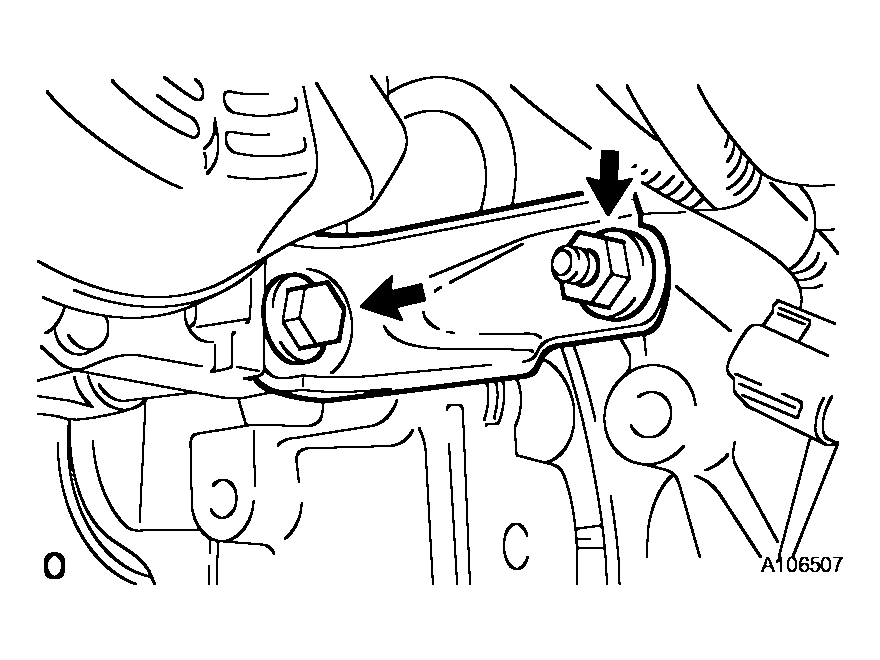

      Fig 3: Locating Generator Bracket Removing Nut And Bolt
      G04019119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and generator.

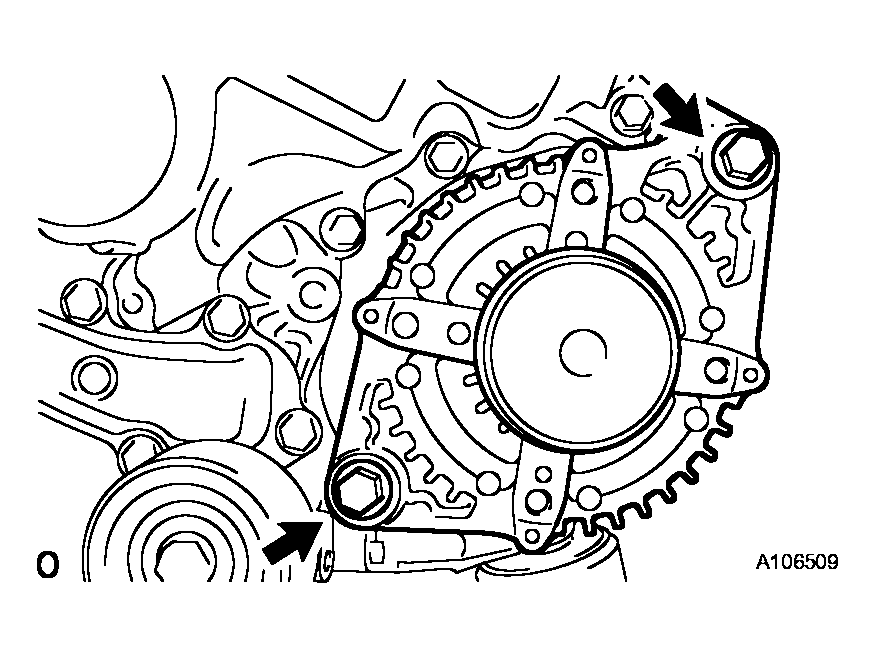

      Fig 4: Locating Generator Removing Bolts
      G04019120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
