Front Bumper: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

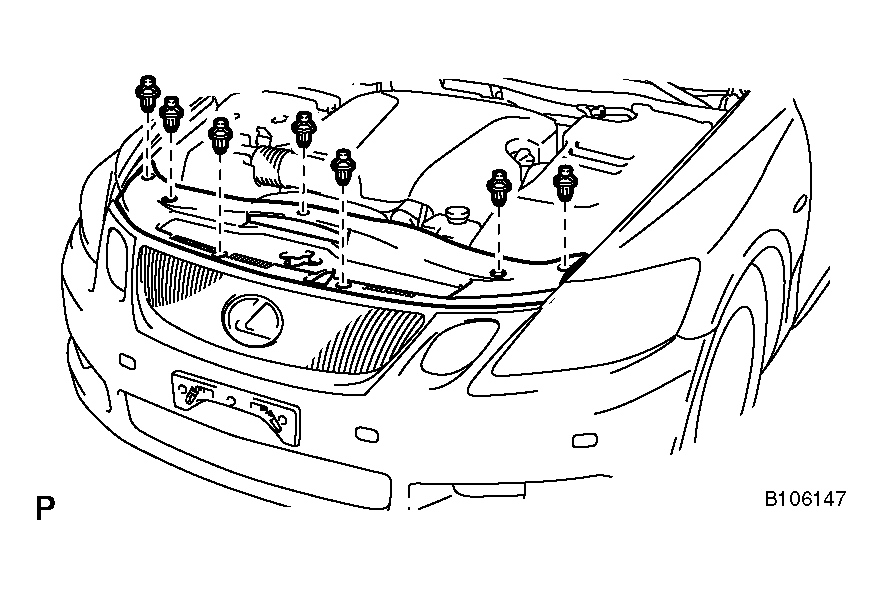

REMOVE COOL AIR INTAKE DUCT SEAL
1. Using a clip remover, remove the 7 clips and duct seal.

  Fig 1: Identifying Clips And Duct Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

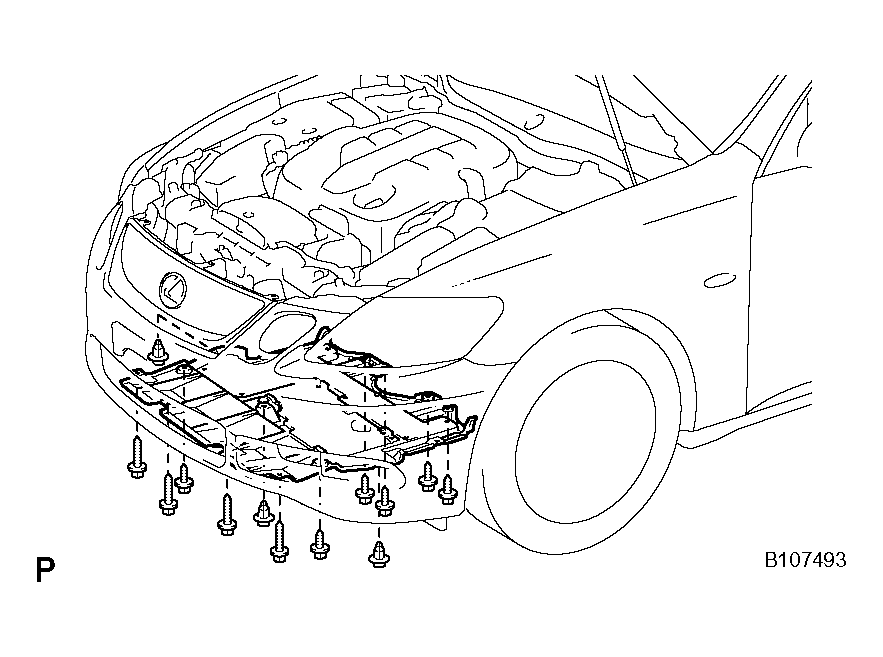

REMOVE ENGINE UNDER COVER
1. Using a clip remover, remove the 3 clips.
2. Remove the 10 screws and under cover.

  Fig 2: Identifying Engine Under Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER LINER LH
1. Using a screwdriver, remove the 2 clips.
2. Partially remove the fender liner.
  HINT:

  It is not necessary to fully remove the fender liner. Partially remove it so that the bumper assembly can be removed later.

  Fig 3: Identifying Front Fender Liner LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER LINER RH
HINT:

Use the same procedures described for the LH side.
REMOVE RADIATOR GRILLE GARNISH
1. Detach the 2 claws and remove the 2 garnishes.
REMOVE FRONT BUMPER COVER
1. Using a clip remover, remove the 2 clips.
  HINT:

  Put protective tape under the front fender.

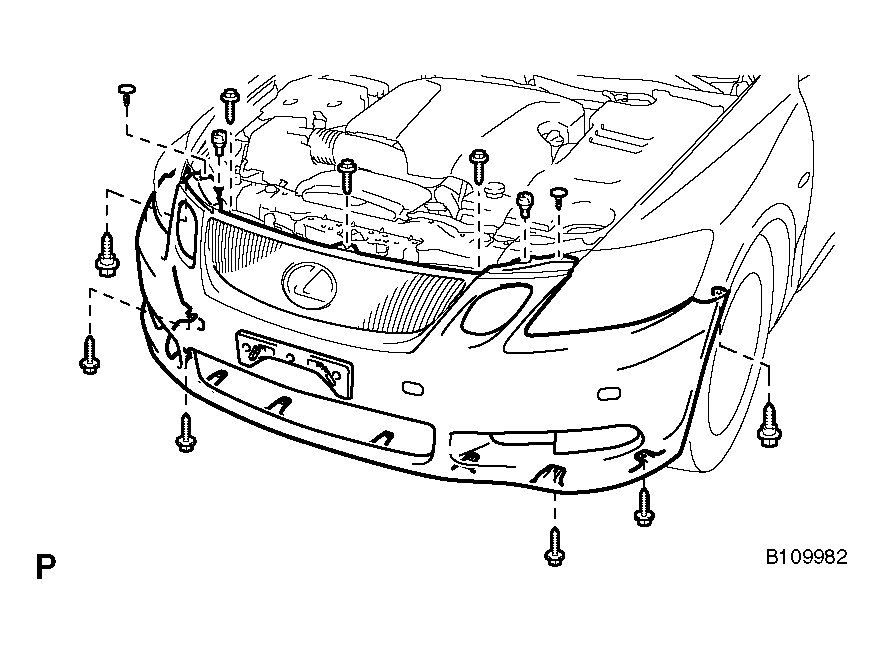

2. Remove the 6 screws and 5 bolts.

  Fig 4: Identifying Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the bumper cover to detach the 3 claws on the LH side.
4. Pull the bumper cover to detach the 3 claws on the RH side and remove the bumper cover.
5. w/ Clearance sonar system: Disconnect the ultrasonic sensor connector.

  Fig 5: Identifying Ultrasonic Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

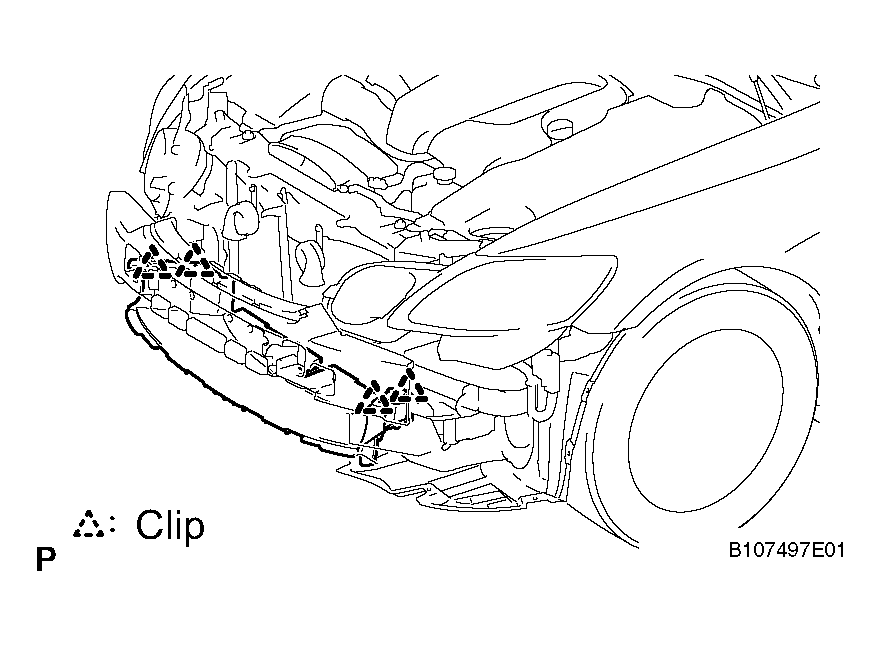

REMOVE RADIATOR SUPPORT OPENING COVER
1. Remove the 4 clips and cover.

  Fig 6: Identifying Clips And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

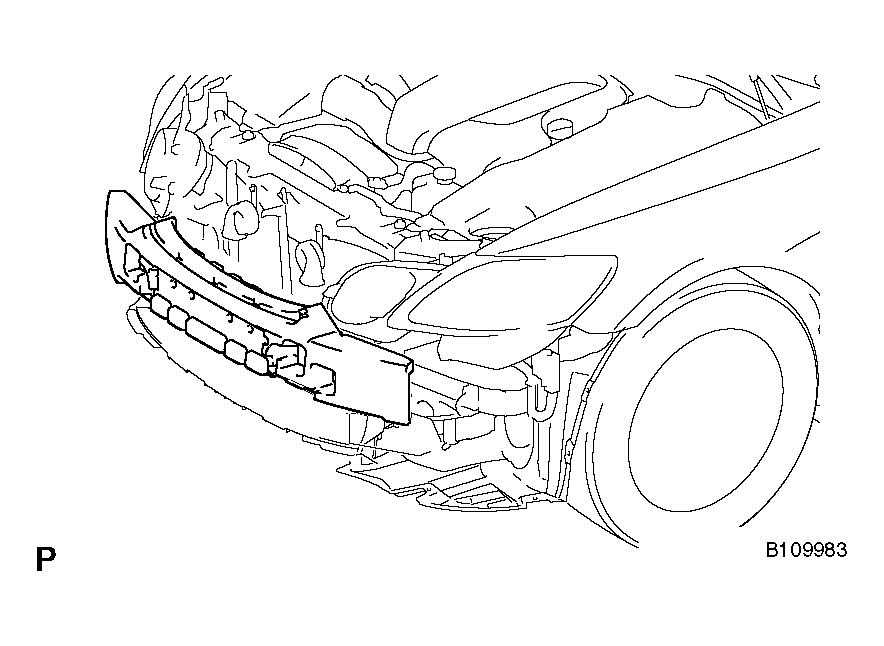

REMOVE FRONT BUMPER ENERGY ABSORBER
1. Remove the energy absorber.

  Fig 7: Identifying Energy Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

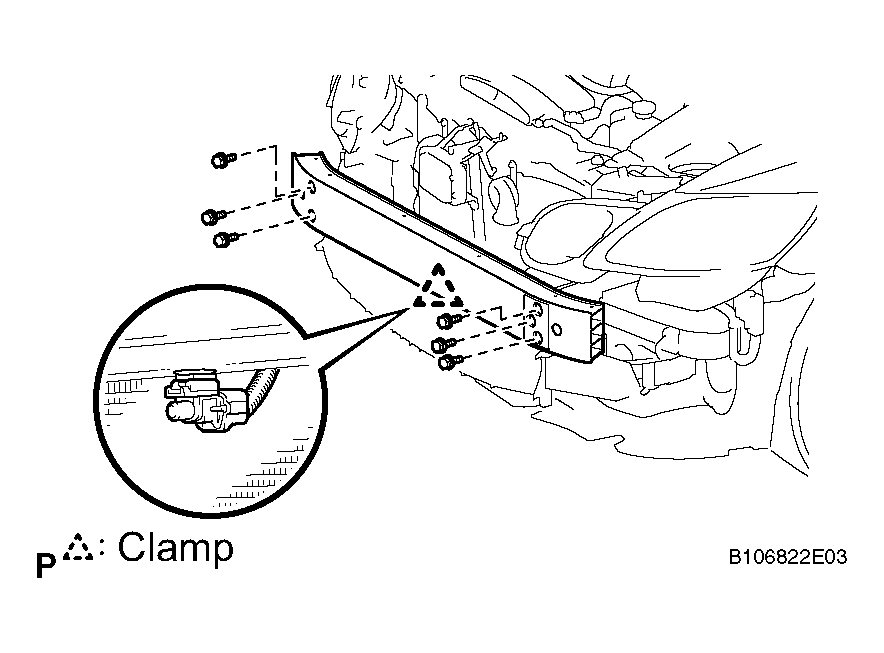

REMOVE FRONT BUMPER REINFORCEMENT
1. Detach the clamp and remove the cooler thermistor from the reinforcement.
2. Remove the 6 bolts and reinforcement.

  Fig 8: Identifying Bolts And Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

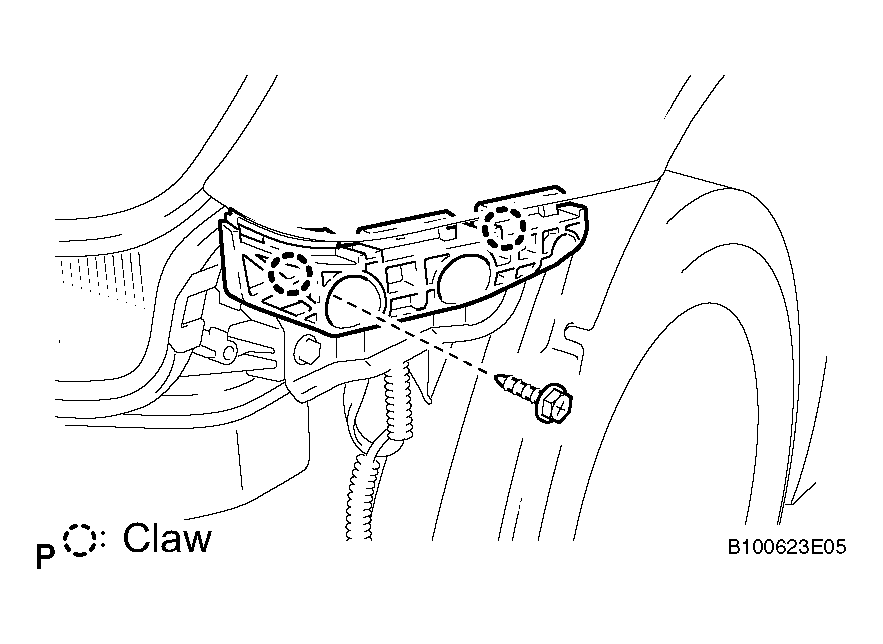

REMOVE FRONT BUMPER SIDE RETAINER LH
1. Remove the screw.
2. Detach the 2 claws and remove the retainer.

  Fig 9: Identifying Front Bumper Side Retainer LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER SIDE RETAINER RH
HINT:

Use the same procedures described for the LH side.
