3GR-FSE COMPRESSOR AND PULLEY (for 2WD): Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )
REMOVE NO. 1 AIR CLEANER INLET (See REMOVAL )
REMOVE V-BANK COVER (See REMOVAL )
REMOVE FAN AND GENERATOR V BELT (See REMOVAL )
REMOVE ENGINE UNDER COVER (See REMOVAL )
DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE

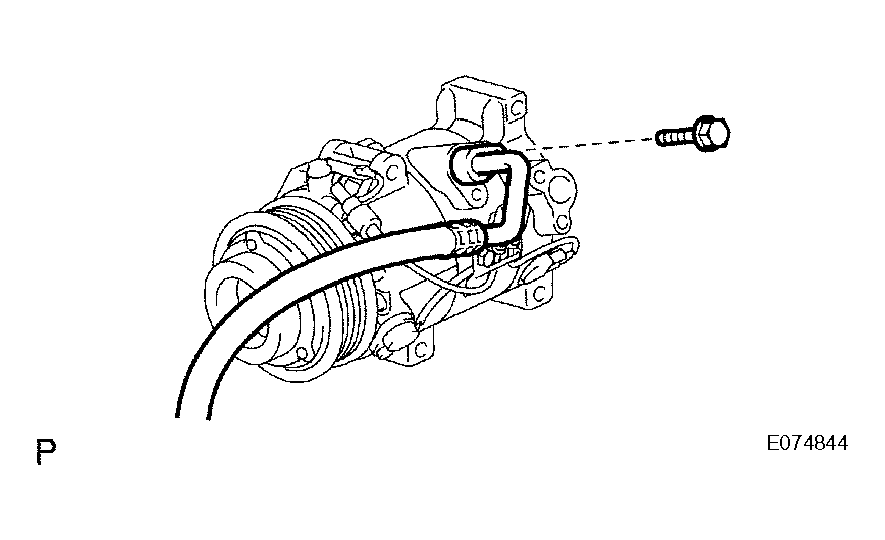

1. Remove the bolt and disconnect the cooler refrigerant suction hose from the compressor.
2. Remove the O-ring from the cooler refrigerant suction hose.

  Fig 1: Identifying Cooler Refrigerant Suction Hose From Compressor And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

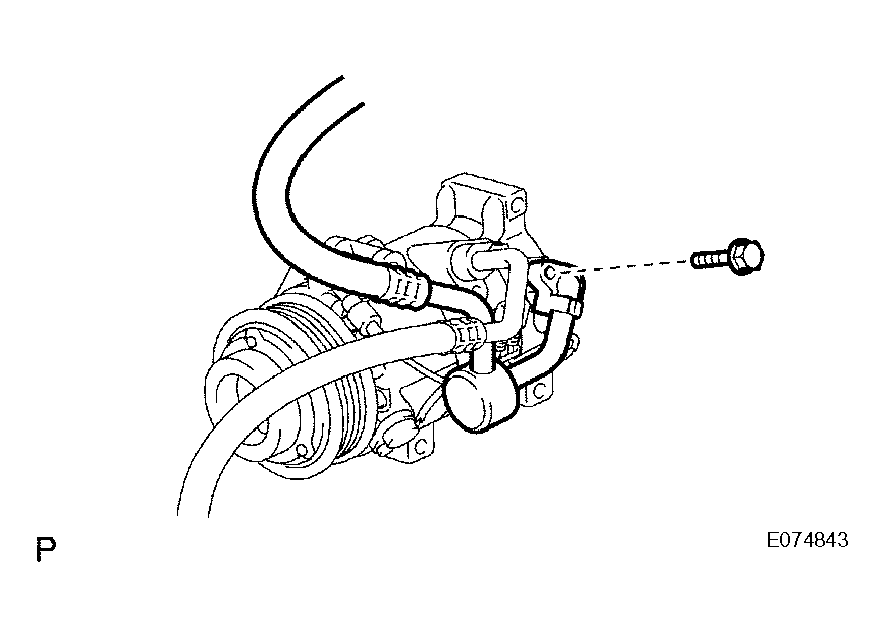

1. Remove the bolt and disconnect the discharge hose from the compressor.
2. Remove the O-ring from the discharge hose.

  Fig 2: Identifying Discharge Hose From Compressor And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
REMOVE COMPRESSOR ASSEMBLY
1. Disconnect the magnetic clutch connector.

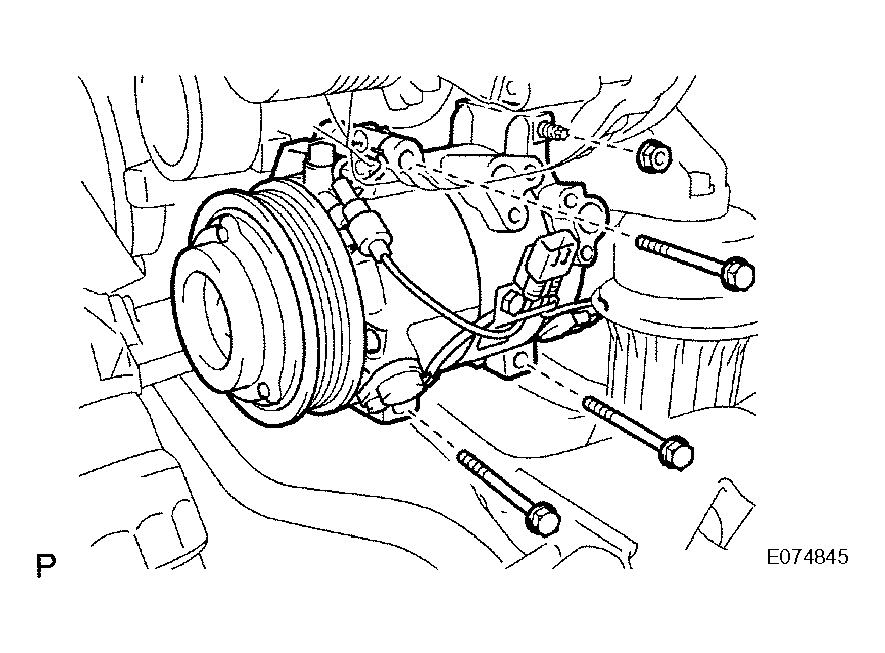

2. Remove the 3 bolts and nut.

  Fig 3: Identifying Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

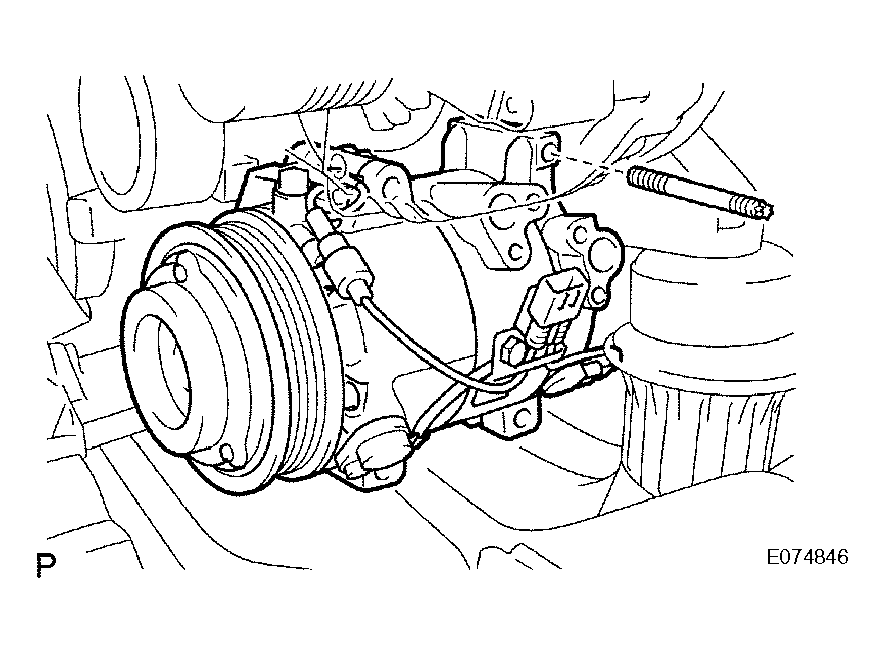

3. Using an E8 "torx" socket, remove the stud bolt and compressor.

  Fig 4: Identifying Stud Bolt And Compressor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
