Instrument Panel Safety Pad: Reassembly

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL ENGINE SWITCH
   1. Install the engine switch.

      For 3GR-FE (see INSTALLATION )

      For 3UZ-FE (see INSTALLATION )

2. INSTALL FRONT STEREO COMPONENT SPEAKER (See  INSTALLATION  )
3. INSTALL FRONT NO. 2 SPEAKER LH (See  INSTALLATION  )
4. INSTALL FRONT NO. 2 SPEAKER RH (See  INSTALLATION  )
5. INSTALL NO. 1 SPEAKER HOLE COVER
   1. Attach the 4 clips to install the speaker panel.
      Fig 1: Identifying No. 1 Speaker Hole Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 claws and 2 clips to install the speaker panel.
      Fig 2: Identifying Instrument Panel No. 1 Speaker Panel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 claws and 2 clips to install the speaker panel.
8. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
   Fig 3: Identifying Front Passenger Airbag

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
   1. Attach the 6 claws to install the register.

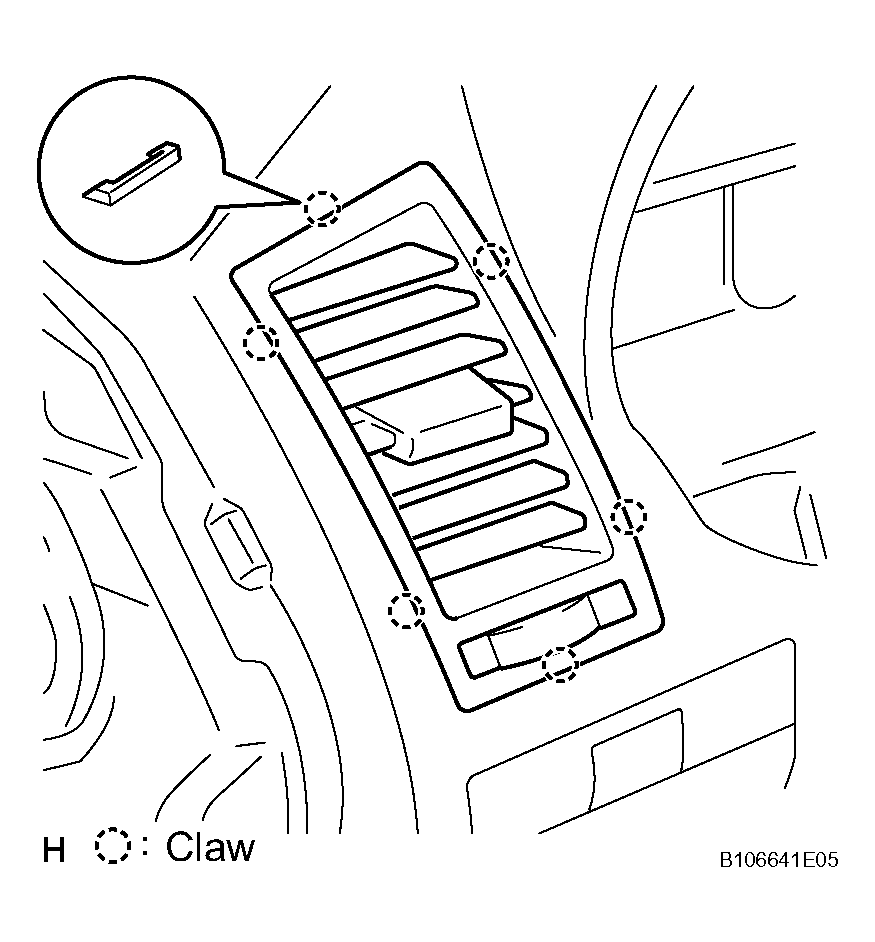

      Fig 4: Identifying Instrument Panel No. 1 Register

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
    1. Attach the 8 claws to install the register.

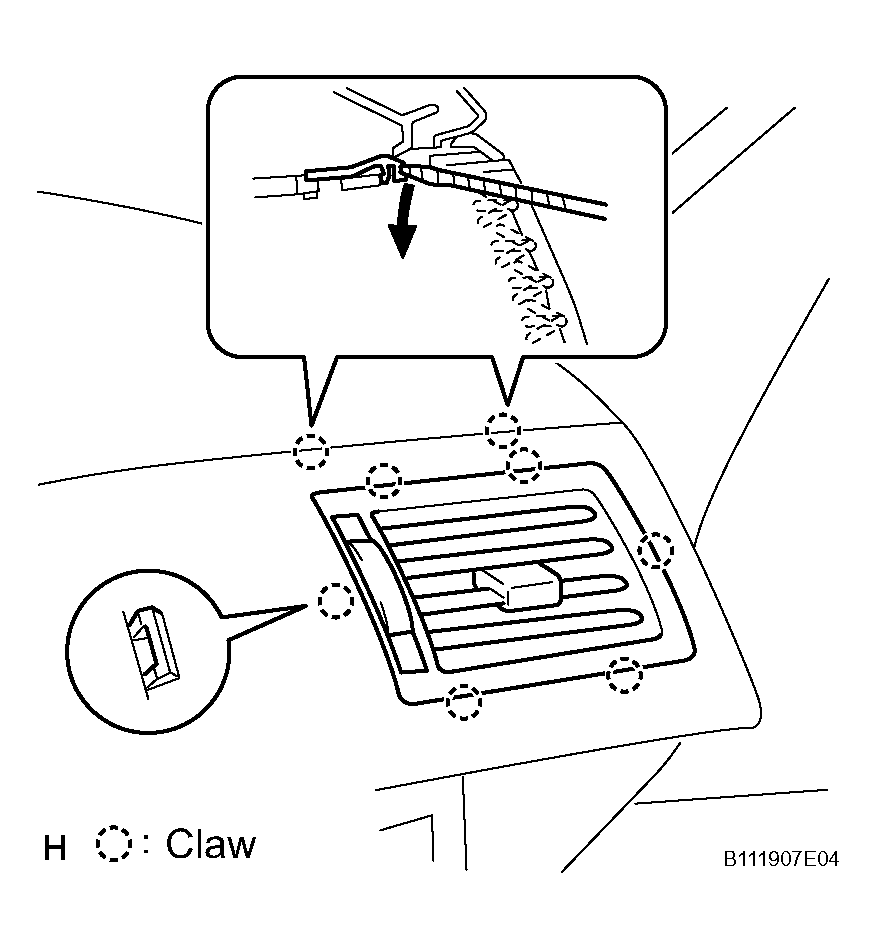

       Fig 5: Identifying Instrument Panel No. 3 Register

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
    1. Attach the 6 clips and 4 claws to install the register.

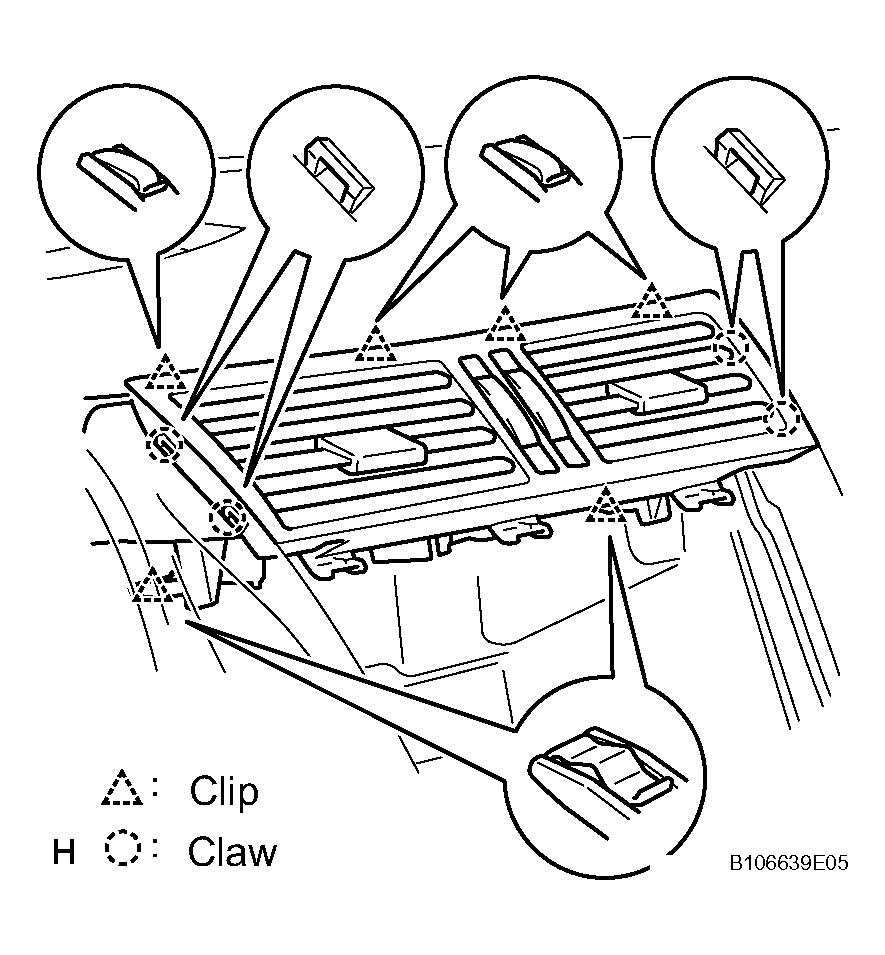

       Fig 6: Identifying Instrument Panel No. 2 Register

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the duct with the 4 screws.

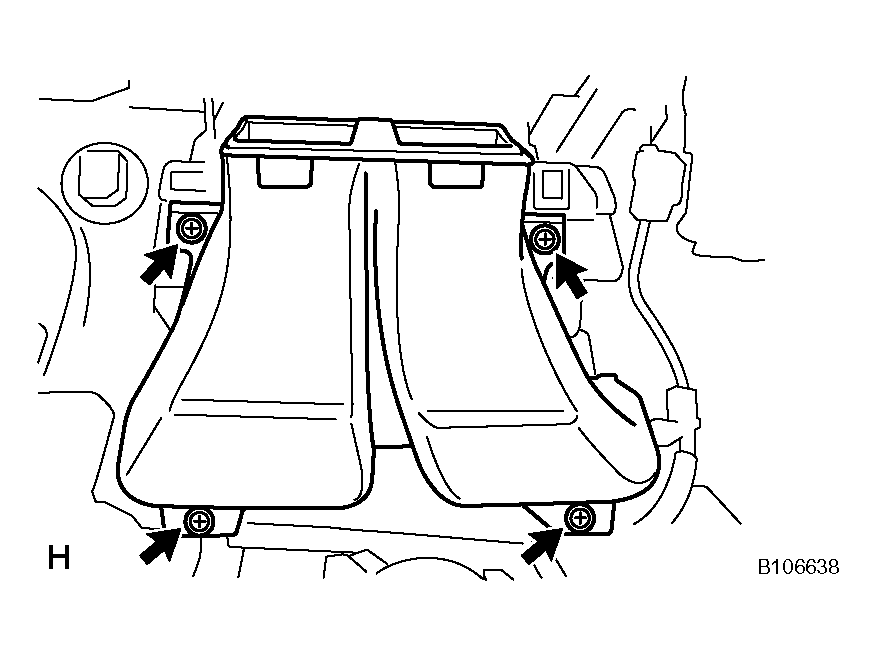

       Fig 7: Identifying No. 2 Heater To Register Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the duct with the 3 screws.

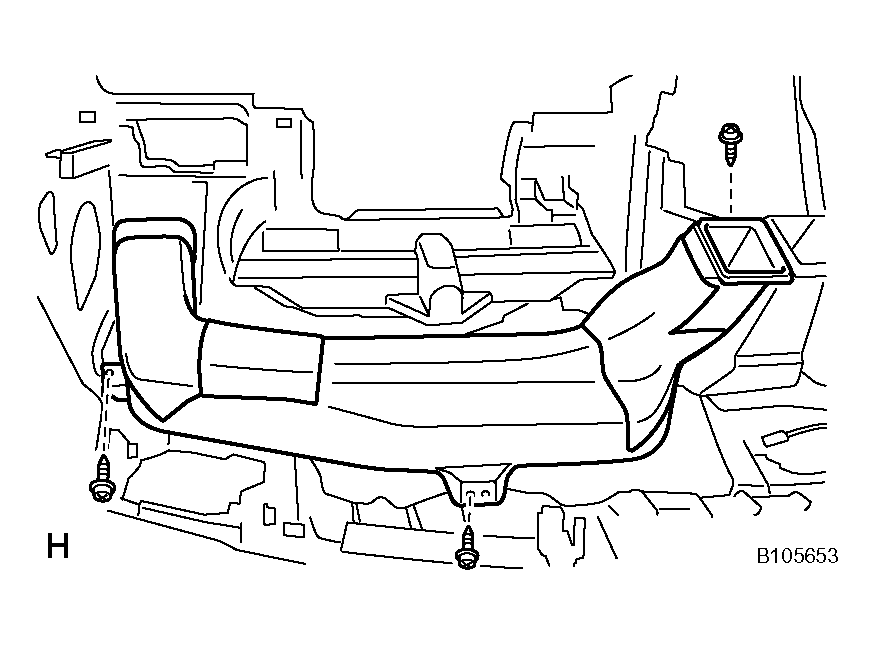

       Fig 8: Identifying No. 1 Heater To Register Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Install the duct with the 3 screws.

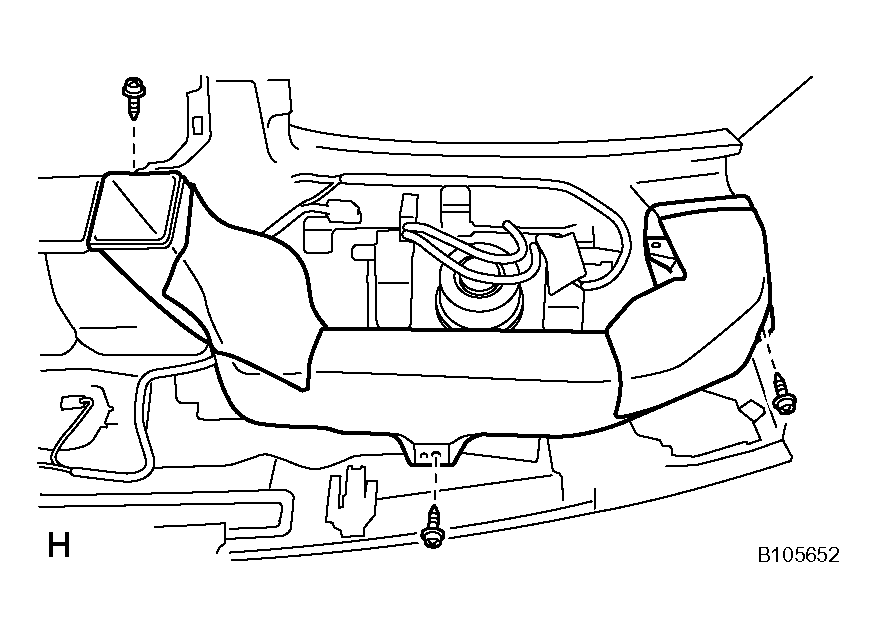

       Fig 9: Identifying No. 3 Heater To Register Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the duct with the 3 screws.

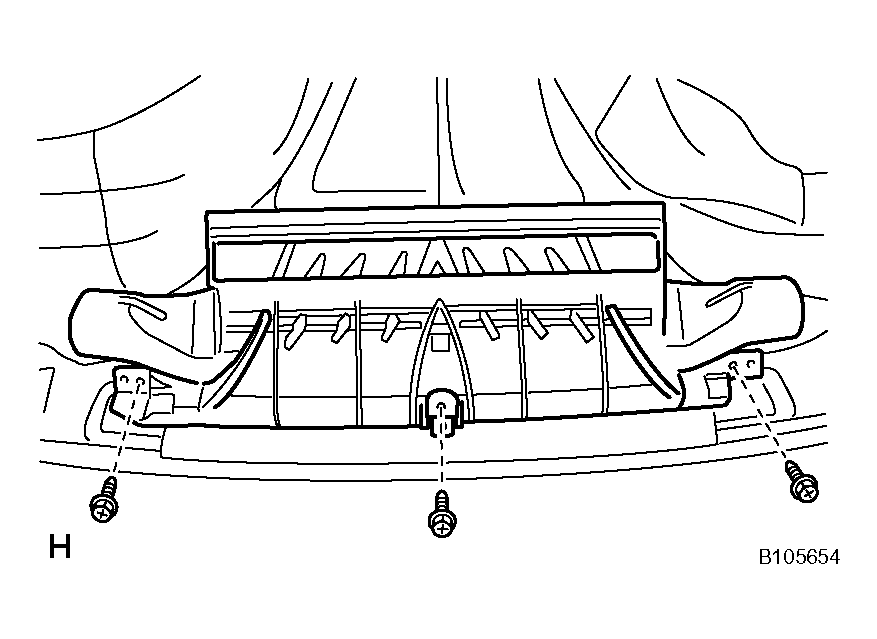

       Fig 10: Identifying Defroster Nozzle

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Install the duct with the screw.
       Fig 11: Identifying Side No. 2 Defroster Nozzle Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL SIDE DEFROSTER NOZZLE DUCT NO. 1
    1. Install the duct with the screw.
       Fig 12: Identifying Side Defroster Nozzle Duct No. 1

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
