Engine Switch: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws and install the switch.
    2. Connect the switch connector.

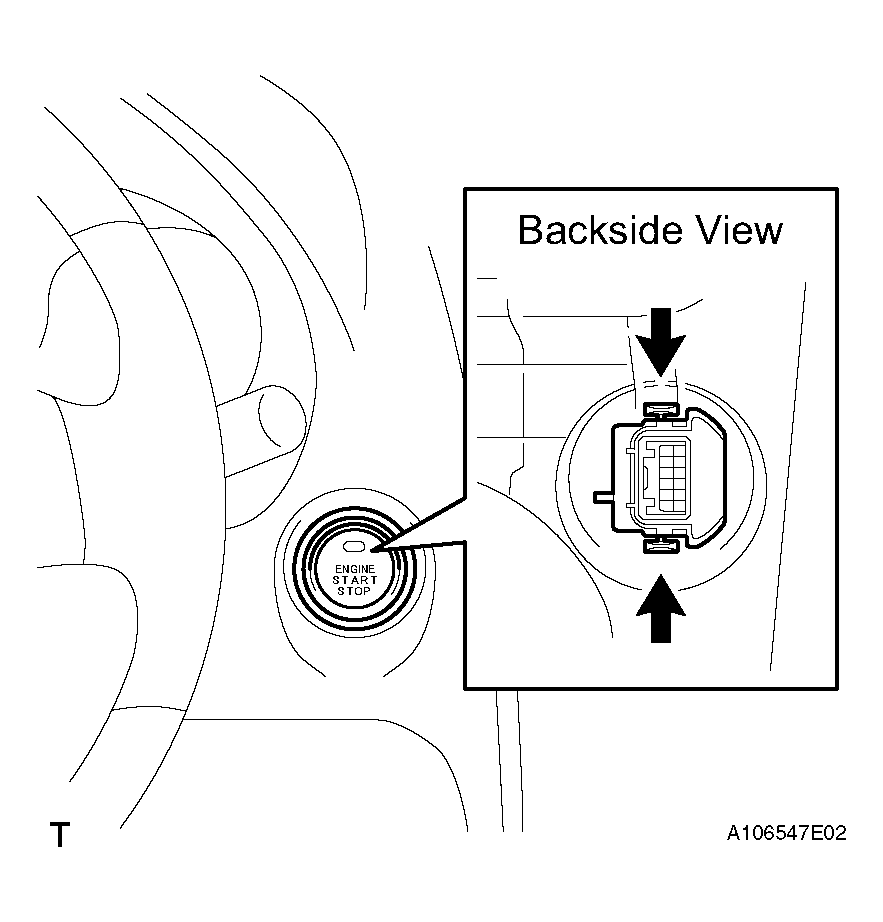

      Fig 1: Identifying Engine Switch
      G04019048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  3. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY (See  INSTALLATION  )
  5. INSTALL INSTRUMENT SIDE PANEL LH (See  INSTALLATION  )
  6. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  7. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  9. INSTALL FRONT CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  10. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  13. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DTC CHECK / CLEAR ).
