Headlight Dimmer Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at lest 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE NO. 3 STEERING WHEEL COVER LOWER (See  REMOVAL  )
  4. REMOVE STEERING WHEEL COVER LOWER NO.2 (See  REMOVAL  )
  5. REMOVE STEERING PAD (See  REMOVAL  )
  6. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  7. REMOVE STEERING COLUMN COVER LOWER (See  REMOVAL  )
  8. REMOVE STEERING COLUMN COVER UPPER (See  REMOVAL  )
  9. REMOVE SPIRAL CABLE SUB-ASSEMBLY W/STEERING SENSOR (See  REMOVAL  )
  10. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See  REMOVAL  )
  11. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Disconnect the connector.

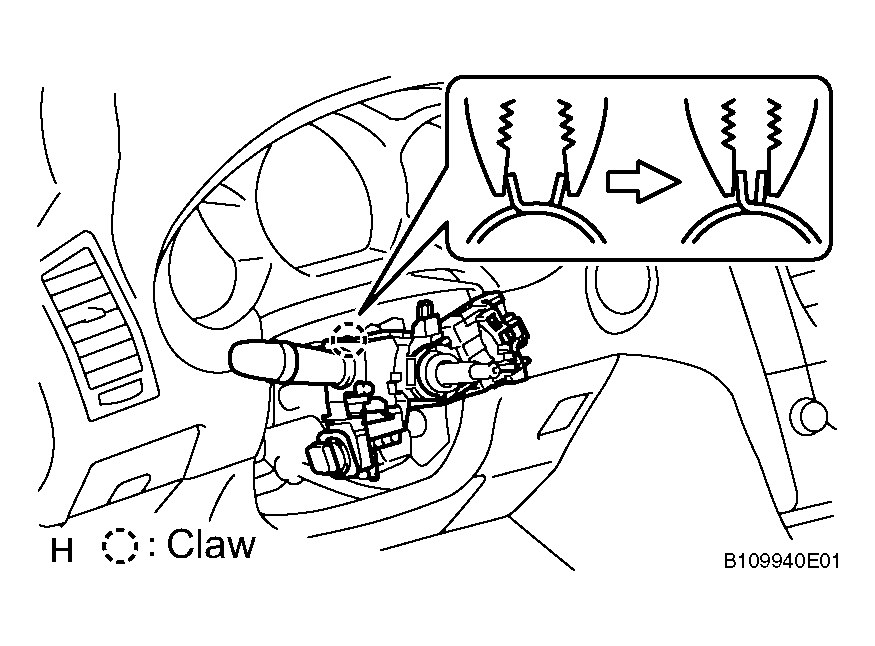

    2. Detach the clamp from the headlight dimmer switch as shown in the illustration.
      Fig 1: Detaching Clamp From Headlight Dimmer Switch
      G04021712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the claw and remove the headlight dimmer switch as shown in the illustration.
      Fig 2: Identifying Headlight Dimmer Switch
      G04021713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
