Engine Timing Verification

CAUTION:

Do not rotate the crankshaft using the damper bolt. The bolt has left-hand threads and can be inadvertently loosened resulting in loss of camshaft timing. Only rotate the damper itself in a clockwise direction (as viewed from the front).

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the vacuum pump. Refer to PUMP, VACUUM, REMOVAL AND INSTALLATION  .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
    GC0207926Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lower gearbox bolts (1a) and remove the dust shield (1b).
    GC0207922Courtesy of CHRYSLER GROUP, LLC
  6. Using the (Special Tool No. 2069100090, Holder, Front Damper 3 Pin), rotate the crankshaft clockwise (as viewed from the front) and install the (Special Tool No. 2063600090, Pin, Flywheel Locking) timing tool through the crankcase and into the flexplate.
    GC0207924Courtesy of CHRYSLER GROUP, LLC
  7. Install the (Special Tool No. 2063500090, Locking, Camshaft) timing tool (1a) on the vacuum pump mounting surface while positioning the pin (1b) in the camshaft hole (1c).
  8. Install and securely tighten the timing tool bolts in the vacuum pump mounting surface.
    NOTE:

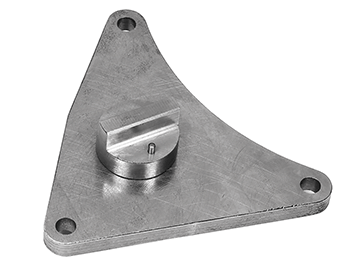

    If the (Special Tool No. 2063500090, Locking, Camshaft)

    GC0188865Courtesy of CHRYSLER GROUP, LLC

    bolts can not be installed because the holes are not aligned, the engine timing is not correct and must be reset

    Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .

  9. If the engine timing is correct, remove the (Special Tool No. 2063500090, Locking, Camshaft) and the (Special Tool No. 2063600090, Pin, Flywheel Locking).
    GC0207925Courtesy of CHRYSLER GROUP, LLC
  10. Install the dust shield (1a) and tighten the bolts (1b) securing the gearbox to the engine to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  11. Install the vacuum pump. Refer to PUMP, VACUUM, REMOVAL AND INSTALLATION  .
  12. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  13. Connect the negative battery cable.
  14. Remove the support and lower the vehicle.
