Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

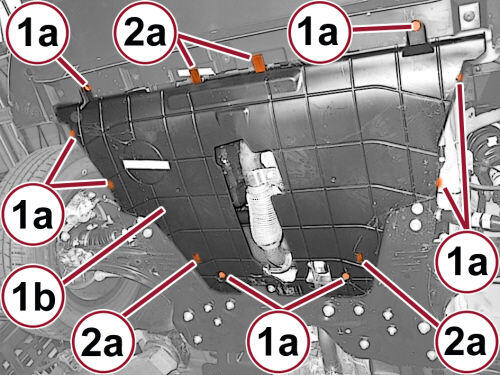

2. Remove the belly pan fasteners (1a) securing the belly pan (1b).
3. Release the belly pan retainers (2a) and remove the belly pan from the vehicle.

INSTALLATION

1. Inspect the belly pan for damage.
2. Position the belly pan onto the vehicle and fully seat the belly pan retainers.
3. Install and securely tighten the belly pan fasteners.
