Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0163599Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

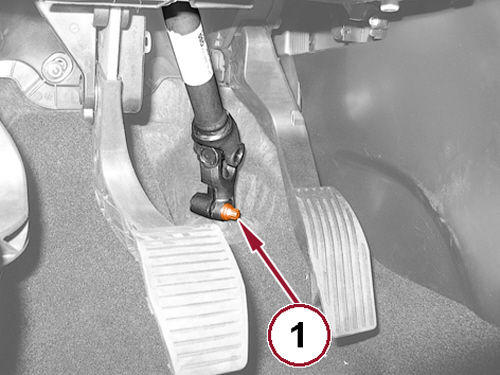

  2. Remove and DISCARD  the intermediate shaft pinch bolt (1) securing the steering column to the pinion steering gear.
  3. Remove the front wheels. Refer to REMOVAL .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL  .
  5. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL  .

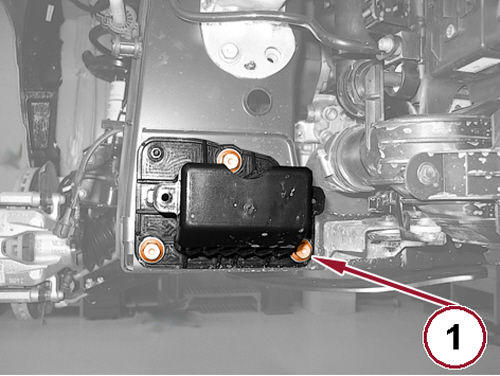

    GC0165682Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolts (1) and the load beam extensions.
    GC0164648Courtesy of CHRYSLER GROUP, LLC
  7. If equipped, remove the bolts and remove the reinforcement bracket (1).

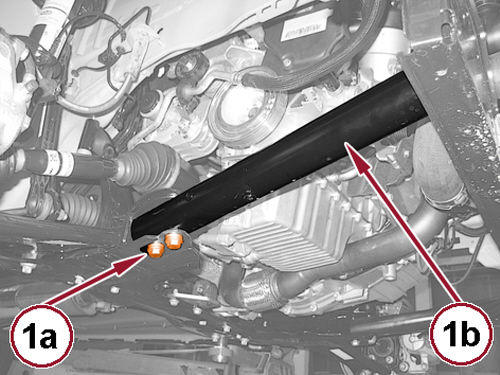

    GC0163225Courtesy of CHRYSLER GROUP, LLC
  8. Remove the bolts (1a) and remove the lower load beams (1b).

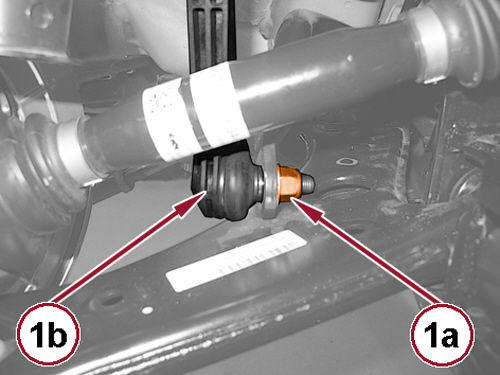

    GC0165742Courtesy of CHRYSLER GROUP, LLC
  9. Remove and DISCARD  the stabilizer bar link nuts (1a) at the stabilizer bar. Separate the stabilizer bar links (1b) from the stabilizer bar.
    GC0163338Courtesy of CHRYSLER GROUP, LLC

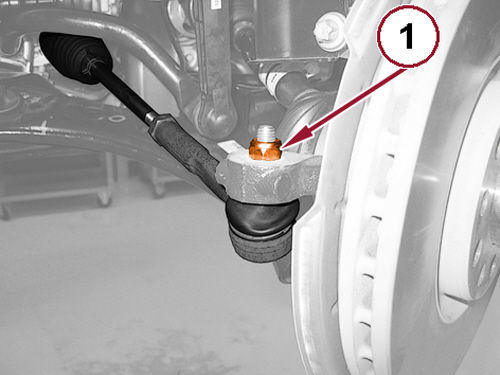

  10. Remove and DISCARD  the nuts (1) securing the tie rods to the knuckles.

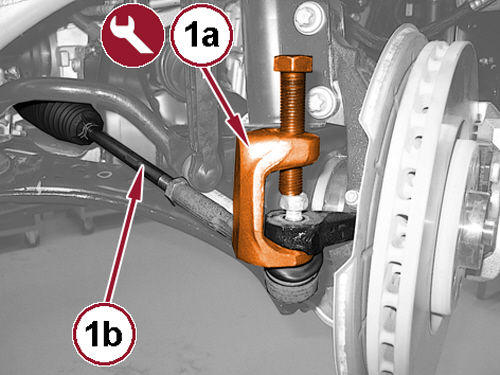

    GC0165037Courtesy of CHRYSLER GROUP, LLC
  11. Fit the special tool #1871000700 (1a) and release the tie rods (1b) from the knuckles.
    GC0165935Courtesy of CHRYSLER GROUP, LLC

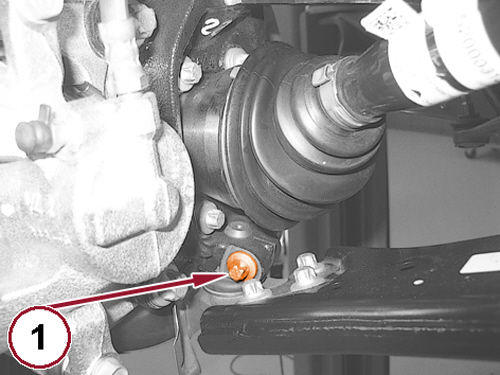

  12. Remove the bolts (1) at the wheel control arms and separate the lower control arms from the knuckles.
    GC0164885Courtesy of CHRYSLER GROUP, LLC

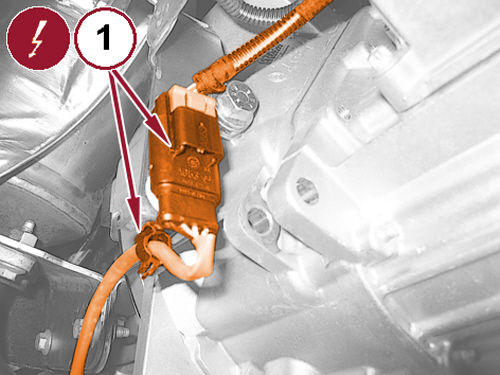

  13. Disconnect the O2 sensor wire harness connector (1) to the catalytic converter.
    GC0165746Courtesy of CHRYSLER GROUP, LLC

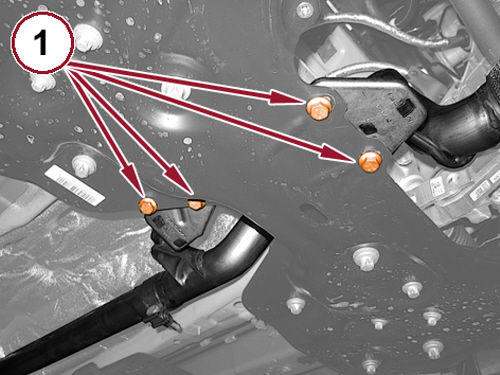

  14. Remove the bolts (1) of the front bracket supporting the exhaust pipe.

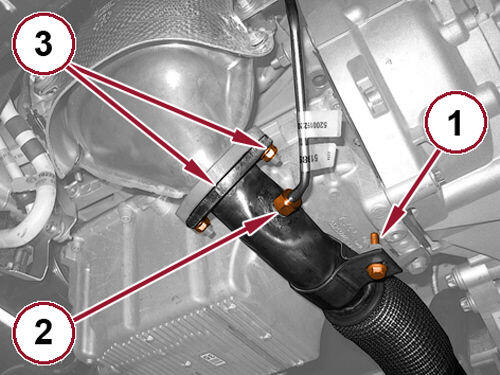

    GC0165874Courtesy of CHRYSLER GROUP, LLC
  15. Remove the bolt (1) securing the exhaust pipe support bracket collar.
  16. Unscrew the fitting (2) and disconnect the exhaust gas Downstream Particulate Filter (DPF) outlet pipe.
  17. Remove and DISCARD  the nuts (3) and disconnect the exhaust pipe from the DPF.

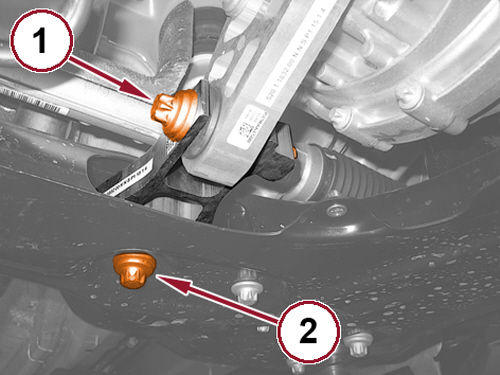

    GC0165697Courtesy of CHRYSLER GROUP, LLC
  18. Remove the bolt (1) securing the rear engine mount isolator to the engine.
  19. Loosen the bolt (2) securing the rear engine mount isolator to the suspension crossmember.

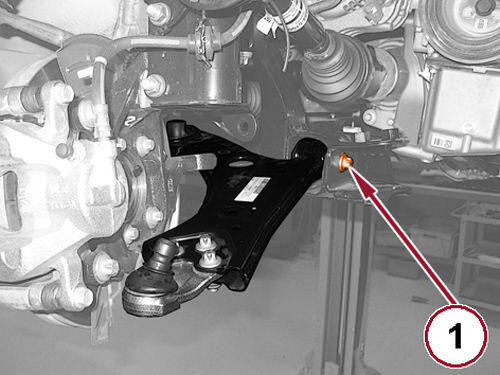

    GC0163416Courtesy of CHRYSLER GROUP, LLC
  20. Loosen the bolt securing the control arm, left and right, to the suspension crossmember.
    GC0164505Courtesy of CHRYSLER GROUP, LLC
  21. Loosen the control arm bolts (1).
  22. Loosen the stabilizer bar bolts (2).
  23. Loosen the steering gear bolts (3).
    GC0164752Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The following step requires the use of universal tool #2000043000, body centering conical/round pin #2000043300, crossmember centering pin/bracket #2000043500 and crossmember centering pin #2000043600.

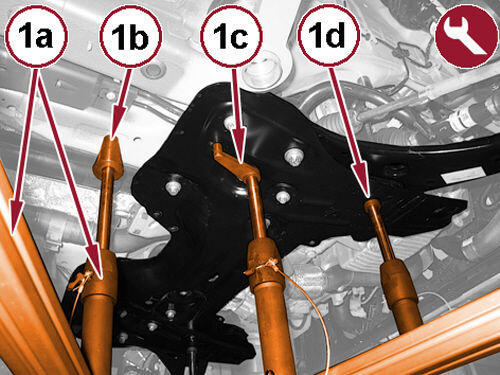

  24. Using a suitable hydraulic lift, support the front suspension crossmember with the gear (1a), (1b), (1c) and (1d) as shown in the figure.

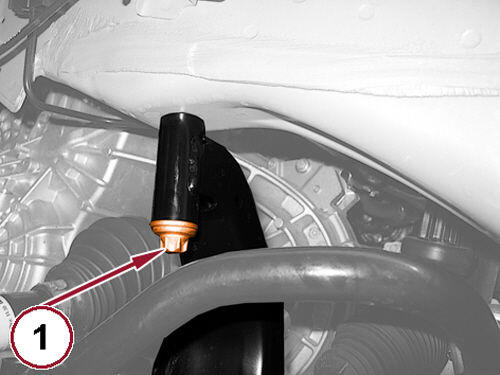

    GC0164169Courtesy of CHRYSLER GROUP, LLC
  25. Remove the bolts (1) attaching the front suspension crossmember to the left and right side panels.

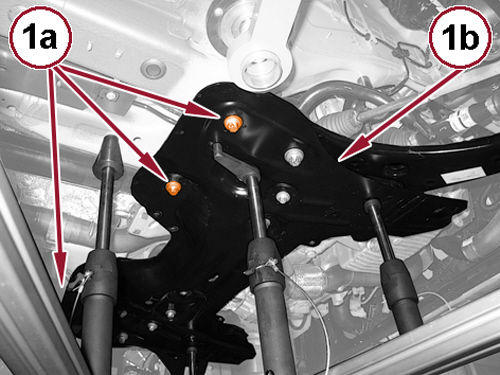

    GC0163499Courtesy of CHRYSLER GROUP, LLC
  26. Remove the four bolts (1a) and remove the front suspension crossmember (1b).
  27. If needed, remove the following components:
