Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL .
  2. Disconnect the stabilizer bar links from the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL  .

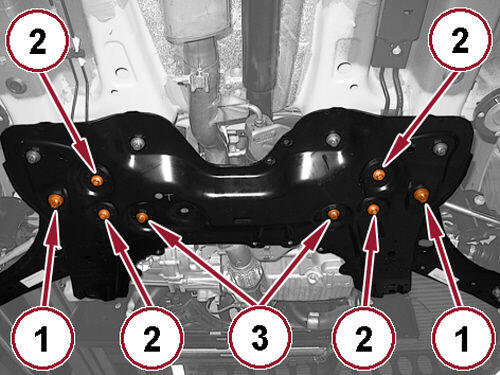

    GC0164505Courtesy of CHRYSLER GROUP, LLC
  3. Remove the front stabilizer bar bolts (2).
  4. Remove the stabilizer bar.
