Rear Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

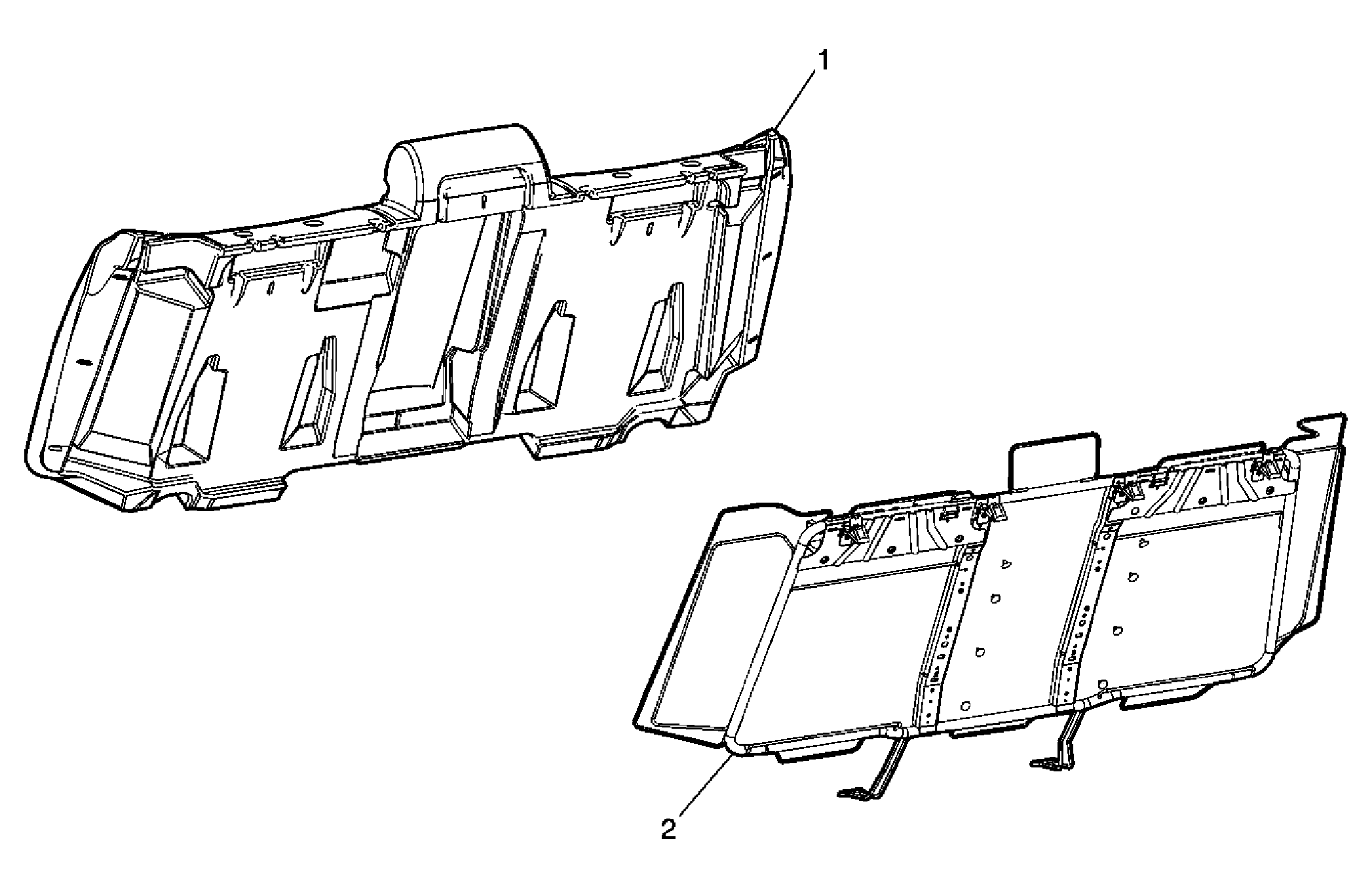

Fig 1: Seat Back Frame Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear . Remove the rear seat head restraints, if equipped. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
1	Rear Seat Back Cushion Cover Tip: Remove the J-hooks that secure the cover to the frame. Disconnect the electrical connector. Remove the seat back cover and pad as an assembly.
2	Frame, Rear Seat Back Cushion Tip: Remove the rear seat heater module from the seat back frame. Refer to Heated Seat Control Module Replacement - Rear . Remove the wiring harness from the seat back frame.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .
Remove the rear seat head restraints, if equipped. Refer to Rear Seat Head Restraint Replacement .
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .

Rear Seat Back Cushion Cover
Tip:

Remove the J-hooks that secure the cover to the frame.
Disconnect the electrical connector.
Remove the seat back cover and pad as an assembly.

Frame, Rear Seat Back Cushion
Tip:

Remove the rear seat heater module from the seat back frame. Refer to Heated Seat Control Module Replacement - Rear .
Remove the wiring harness from the seat back frame.
