Rear Seat Armrest Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

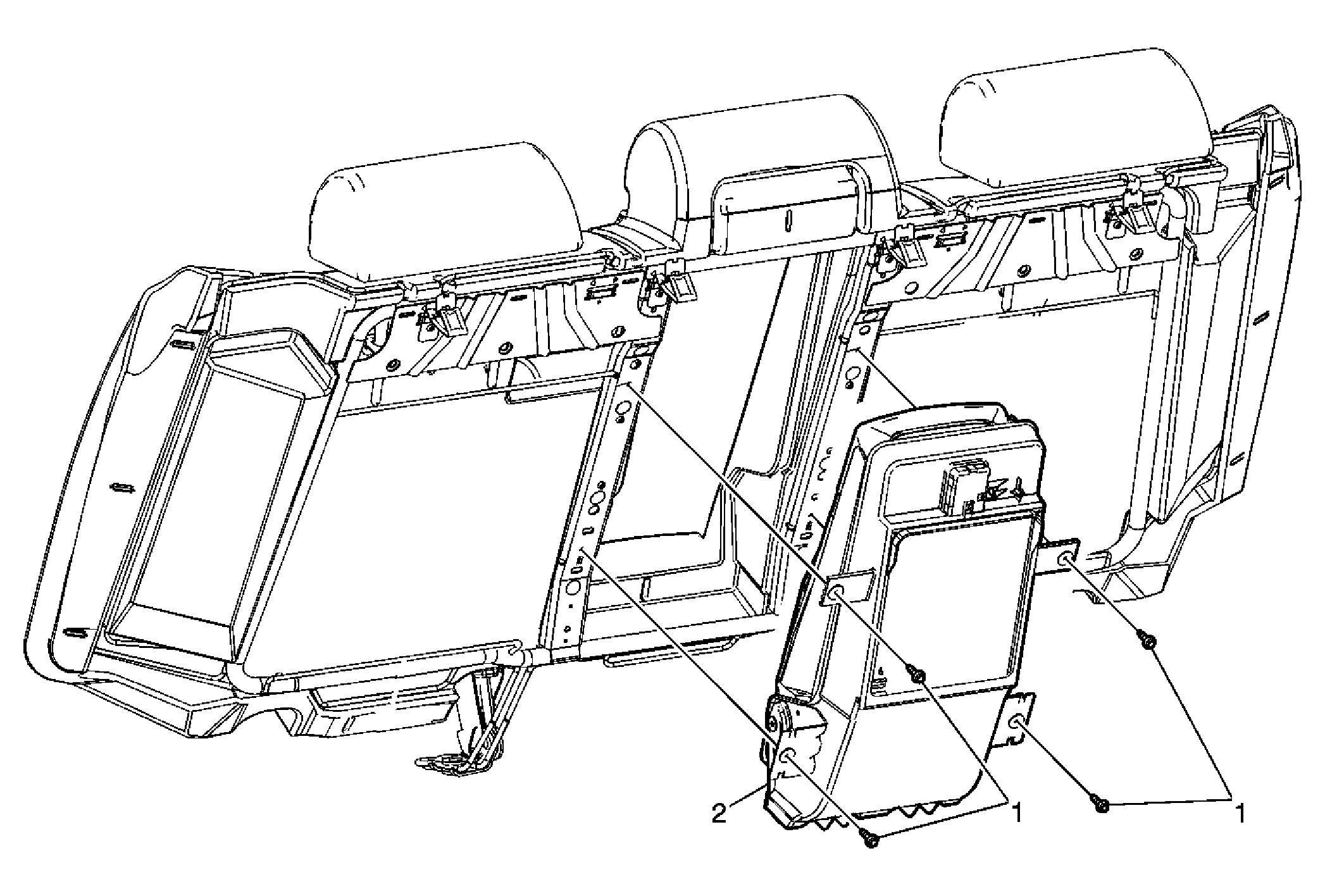

Fig 1: Armrest Replacement - Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .
1	Bolt, Rear Seat Armrest (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Armrest Assembly, Rear Seat

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .

Bolt, Rear Seat Armrest (Qty: 4)

Tighten: 2 N.m (18 lb in)

Armrest Assembly, Rear Seat
