Wiper Motor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

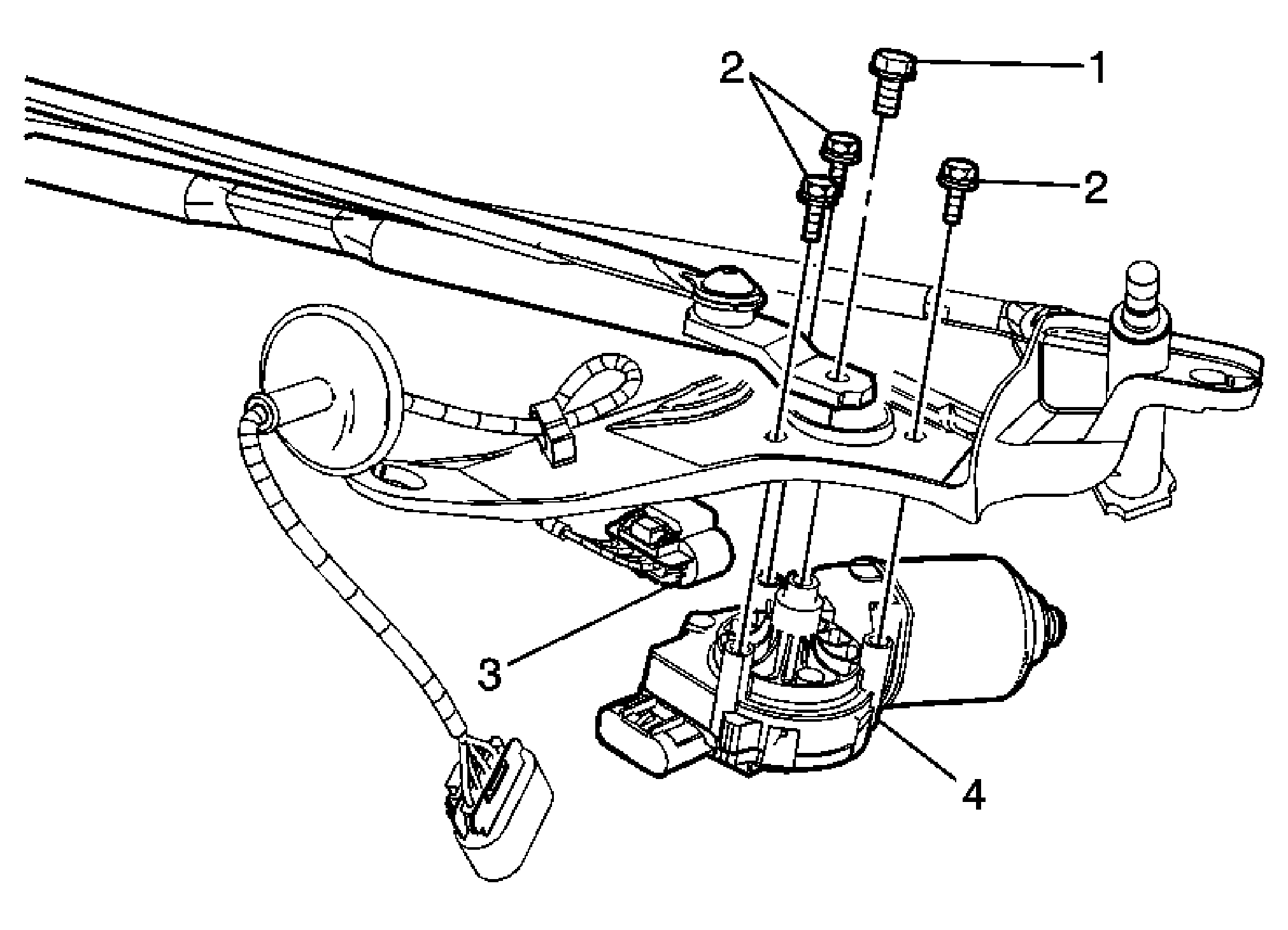

Fig 1: Wiper Motor Replacement

GM1592545

Courtesy of GENERAL MOTORS CORP.

Wiper Motor Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the wiper motor module support bracket. Refer to Wiper Motor Module Support Bracket Replacement . Remove the wiper drive system module. Refer to Wiper Transmission Replacement .
1	Bolt, Windshield Wiper Motor Crank Arm Tighten: 9 N.m (80 lb in)
2	Bolts, Windshield Wiper Motor (Qty: 3) Tighten: 6 N.m (53 lb in)
3	Harness Assembly, Windshield Wiper Motor Wiring Tip: Disconnect the harness electrical connector from the wiper motor.
4	Motor Assembly, Windshield Wiper Tip: Use the J 39232 or equivalent to separate the transmission arm from the wiper motor crank arm pivot. See Special Tools . Use the J 39529 or equivalent to install the transmission arm onto the wiper motor crank arm pivot. See Special Tools .
