Wiper Motor Module Support Bracket Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

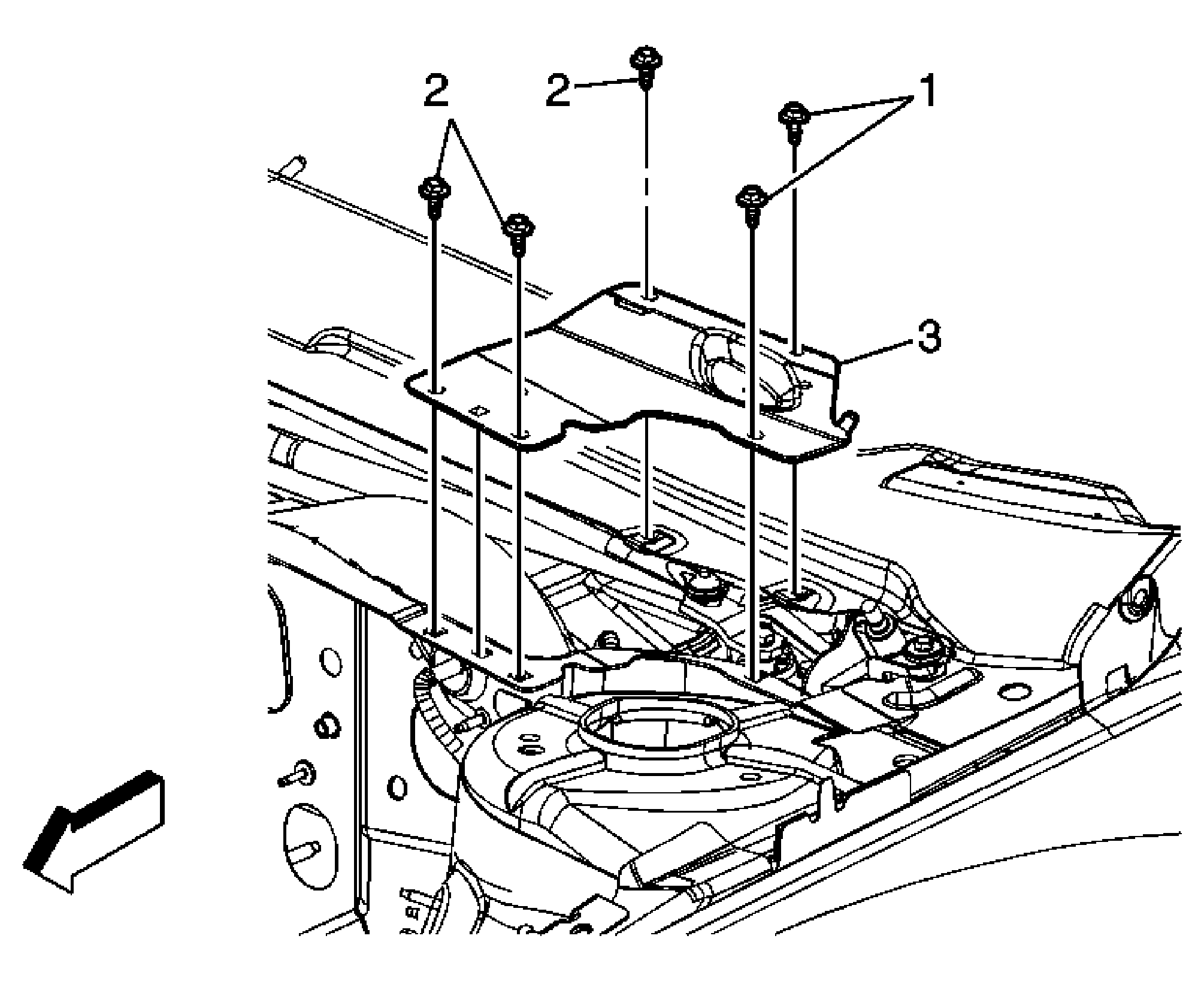

Fig 1: Wiper Motor Module Support Bracket Replacement
GM1589360Courtesy of GENERAL MOTORS CORP.
Wiper Motor Module Support Bracket Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Bolts, Windshield Frame Reinforcement (Qty: 2)

Tighten:  8 N.m (71 lb in)
2 Bolts, Windshield Frame Reinforcement (Qty: 3)

Tighten:  8 N.m (71 lb in)
3 Frame, Windshield Reinforcement
