Wiper Arm Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Wiper Arm Replacement

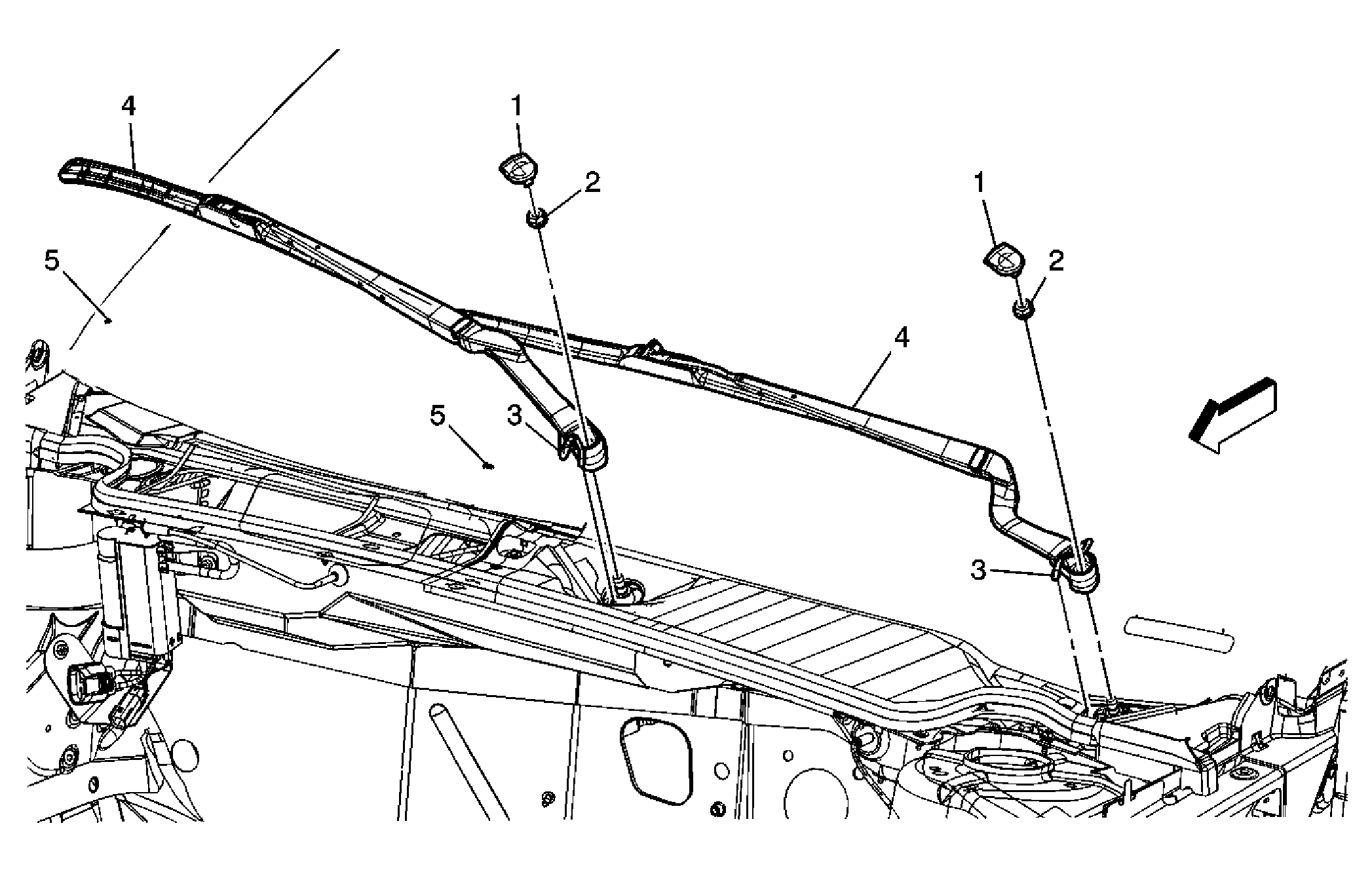

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the wiper arm blades. Refer to Wiper Arm Blade Replacement . |
|
| 1 | Windshield Washer Transmission Nut Cap Tip: Use a small flat-bladed tool to remove the transmission cap. |
| 2 | Windshield Washer Transmission Support Nut Tip: Hold the wiper arm blade tip to the target points in the lower blackout area of the windshield while tightening the nut. Tighten: 32 N.m (24 lb ft) |
| 3 | Windshield Wiper Arm Hose Tip: Disconnect the hose from the air inlet grille panel elbow. |
| 4 | Windshield Washer Arm Assembly Tip: Slightly rock the arm on the wiper pivot shaft to remove. |
| 5 | Windshield Wiper Blade Target Points Tip: Hold the wiper arm blade tip to the target points in the lower blackout area of the windshield while tightening the wiper arm transmission nut. |
