Front Bumper Impact Bar Bracket Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

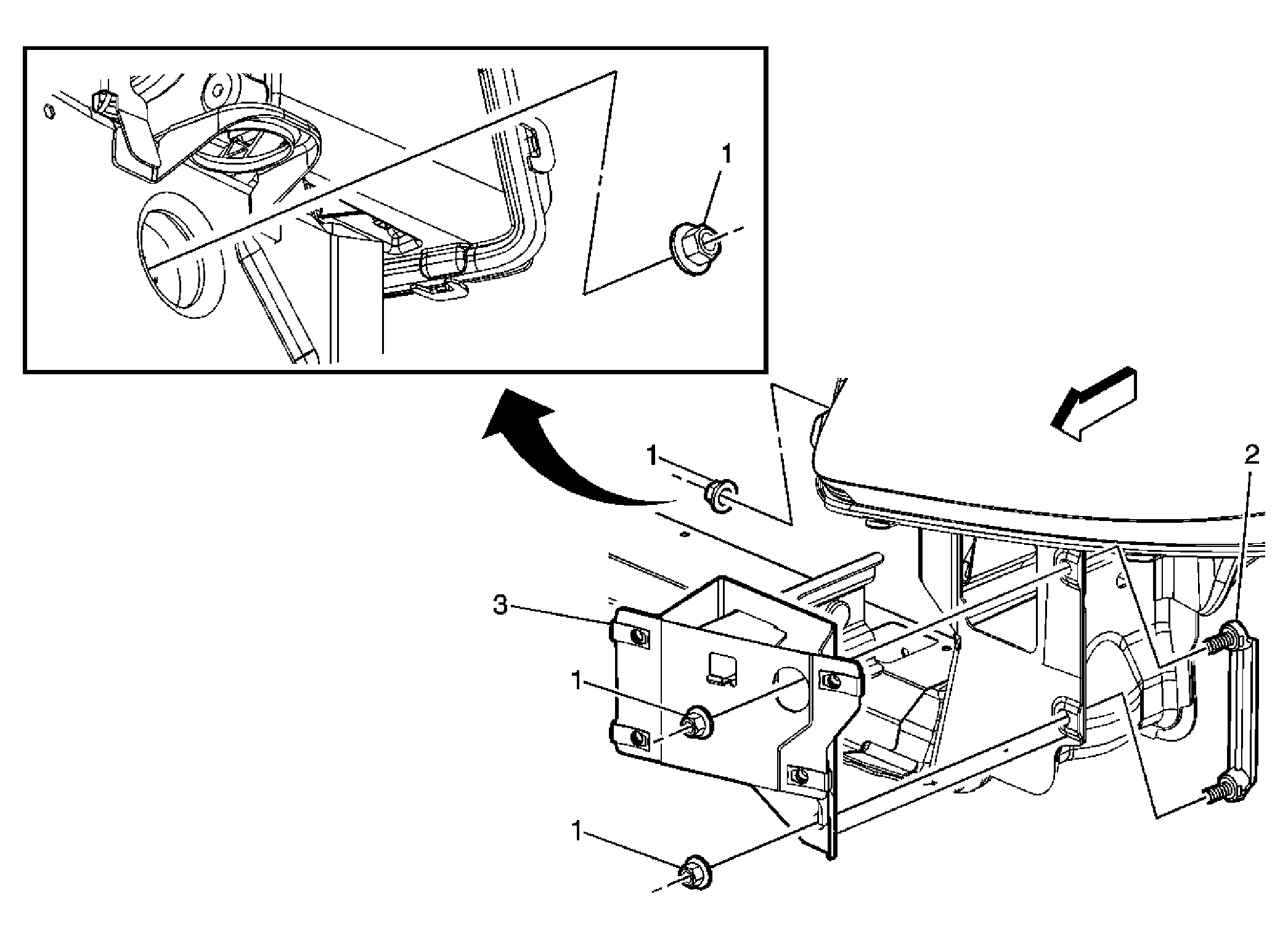

Fig 1: View of Front Bumper Impact Bar Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front fascia. Refer to Front Bumper Fascia Replacement . Remove the energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement . Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
1	Front Bumper Bar Bracket Bolt (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Front Bumper Impact Bar Bracket Retainer
3	Front Bumper Impact Bar Bracket
