Front Bumper Fascia Energy Absorber Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

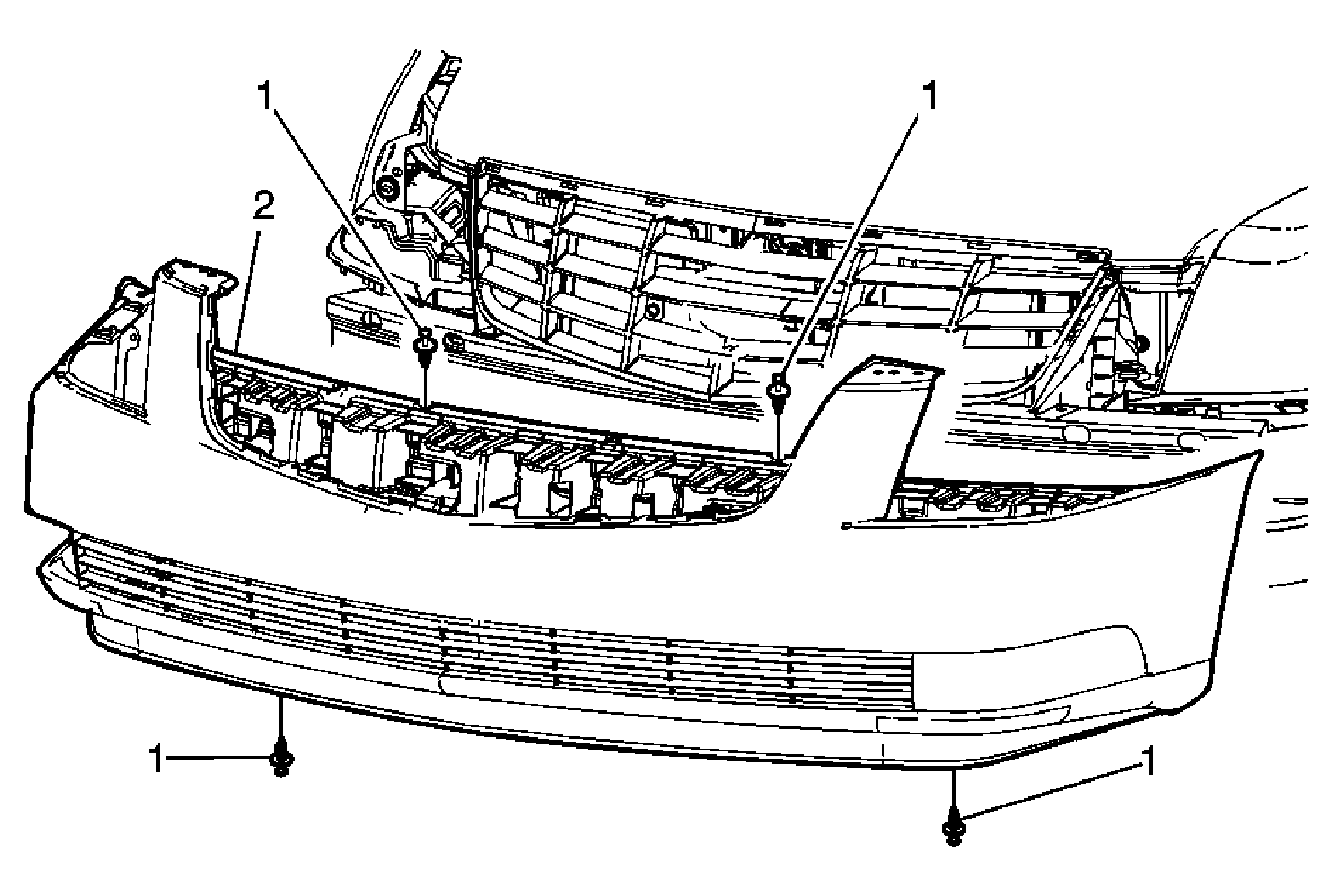

Fig 1: Energy Absorber Replacement - Front
GM1613084Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Energy Absorber Replacement

Callout Component Name
Preliminary Procedure:
Remove front fascia. Refer to Front Bumper Fascia Replacement .
1 Retainers, Fascia Absorber (Qty: 4)
2 Absorber, Front Fascia
Tip:  Absorber is attached to the front fascia.
