Diagnosis System (Combination Meter): Description

COMBINATION METER SELF-DIAGNOSIS MODE

The following meter functions can be checked during Combination Meter Self-Diagnosis Mode:

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE: SYMBOL
  • Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to Diagnosis Procedure . Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to Removal and Installation .
  • Combination meter self-diagnosis mode will function with the ignition switch ON. Combination meter self-diagnosis mode will exit upon pressing the push-button ignition switch OFF.

How to Initiate Self-Diagnosis Mode

  1. Ignition switch OFF.
  2. While pressing the trip reset switch (1), place the ignition switch ON.
    GNSDB138874Courtesy of NISSAN NORTH AMERICA, INC.
  3. Keep pressing the trip reset switch for 1 second or more.
  4. Press the trip reset switch at least 3 times. (Within 7 seconds after the push-button ignition switch is pressed ON.)
  5. "Work instruction code" is indicated in the top portion of information display and self-diagnosis is started.
  6. The mode switches in the order shown below each time the trip reset switch is pressed.
NOTE: SYMBOL If the trip reset switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically canceled.
Test order Test item Description
1 Work instruction code This item is displayed, but not used.
2 Part number
3 Software code
4 EEPROM code
5 Hardware code
6 P.C.B code
7 Circuit check The pointer of the following items moves from 0 to MAX twice:
  • Speedometer
  • Tachometer
  • Engine coolant temperature gauge
  • Fuel gauge
NOTE: SYMBOL If any one of the pointers does not sweep, replace combination meter.
8 Color check*1 Performs the color check of the information display.
9 error code*2 Displays the error code of the following items:
  • Speedometer
  • Tachometer
  • Engine coolant temperature gauge
  • Fuel gauge
  • Illumination switch
  • Trip reset switch
10 Warning/indicator lamp check Warnings/indicator lamps illuminate.
NOTE: SYMBOL
  • When either one of them does not turn ON, replace combination meter.
  • SRS air bag warning lamp or security indicator lamp do not illuminate.
NOTE: SYMBOL When the trip reset switch is pressed during the indication of test order "10," test item returns to test order "2."

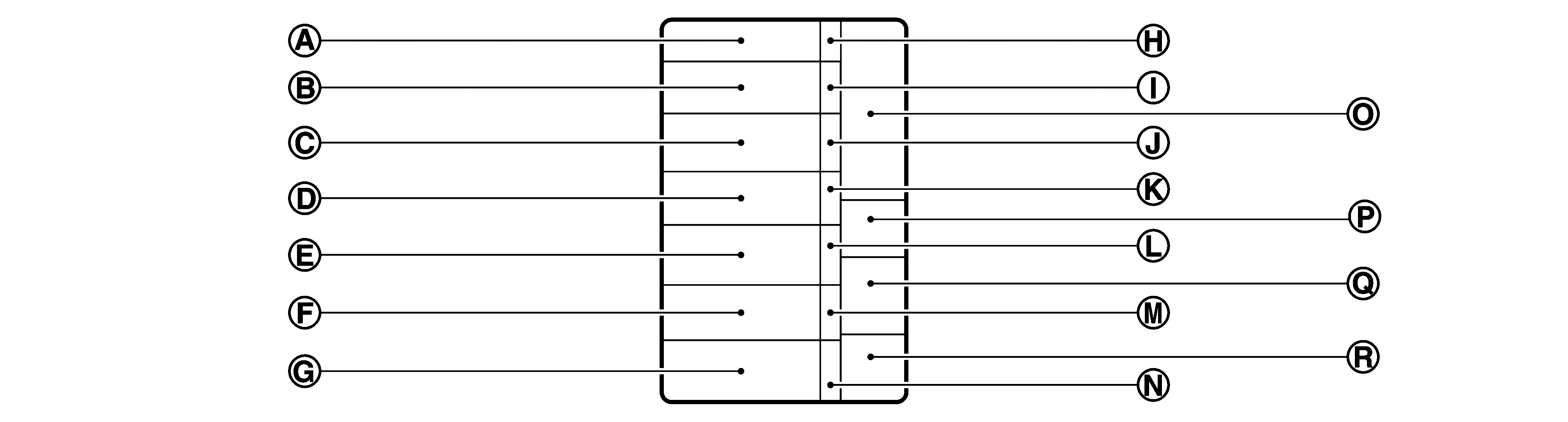

*1: Color Check

GNSDB127974Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Blue SYMBOL Red SYMBOL Pink
SYMBOL Green SYMBOL Light blue SYMBOL Yellow
SYMBOL White SYMBOL White SYMBOL Black
SYMBOL Light blue SYMBOL Black SYMBOL Pink
SYMBOL Black SYMBOL Blue SYMBOL Black
SYMBOL Dark blue SYMBOL White SYMBOL Blue

*2: Error Code

GNSDB109394Courtesy of NISSAN NORTH AMERICA, INC.
Item Code Description Action to take/Reference
SYMBOL Speedometer 0 Normal -
1 A vehicle speed signal cannot be received from ABS actuator and electric unit (control unit). Select "Self Diagnostic Result" mode of "ABS". Refer to DTC Index .
2 A vehicle speed signal received from the ABS actuator and electric unit (control unit) is abnormal.
SYMBOL Tachometer 0 Normal -
1 An engine speed signal cannot be received from ECM. Select "Self Diagnostic Result" mode of "ENGINE". Refer to DTC Index .
SYMBOL Fuel gauge 0 Normal -
1 Fuel gauge circuit is short. Refer to Diagnosis Procedure .
2 Fuel gauge circuit is open.
SYMBOL Engine coolant temperature gauge 0 Normal -
1 An engine coolant temperature signal cannot be received from ECM. Select "Self Diagnostic Result" mode of "ENGINE". Refer to DTC Index .
SYMBOL Illumination switch 0 Normal -
1 Illumination switch circuit is shorted for 5 minutes or more. Refer to Diagnosis Procedure .
SYMBOL Trip reset switch 0 Normal -
2 Trip reset switch circuit is shorted for 5 minutes or more. Refer to Diagnosis Procedure .
SYMBOL - 0 Displays "0" constantly. -
SYMBOL - 0 Displays "0" constantly. -

How to Reset Error Code

Error codes stored in combination meter can be reset by following the instructions below:

  1. Ignition switch OFF.
  2. While pressing the trip reset switch, ignition switch ON.
  3. Keep pressing the trip reset switch for 1 second or more.
  4. Press the trip reset switch at least 3 times. (Within 7 seconds after the push-button ignition switch is pressed ON.)
  5. Ignition switch OFF.
  6. Perform self-diagnosis and check that the error codes are reset.
