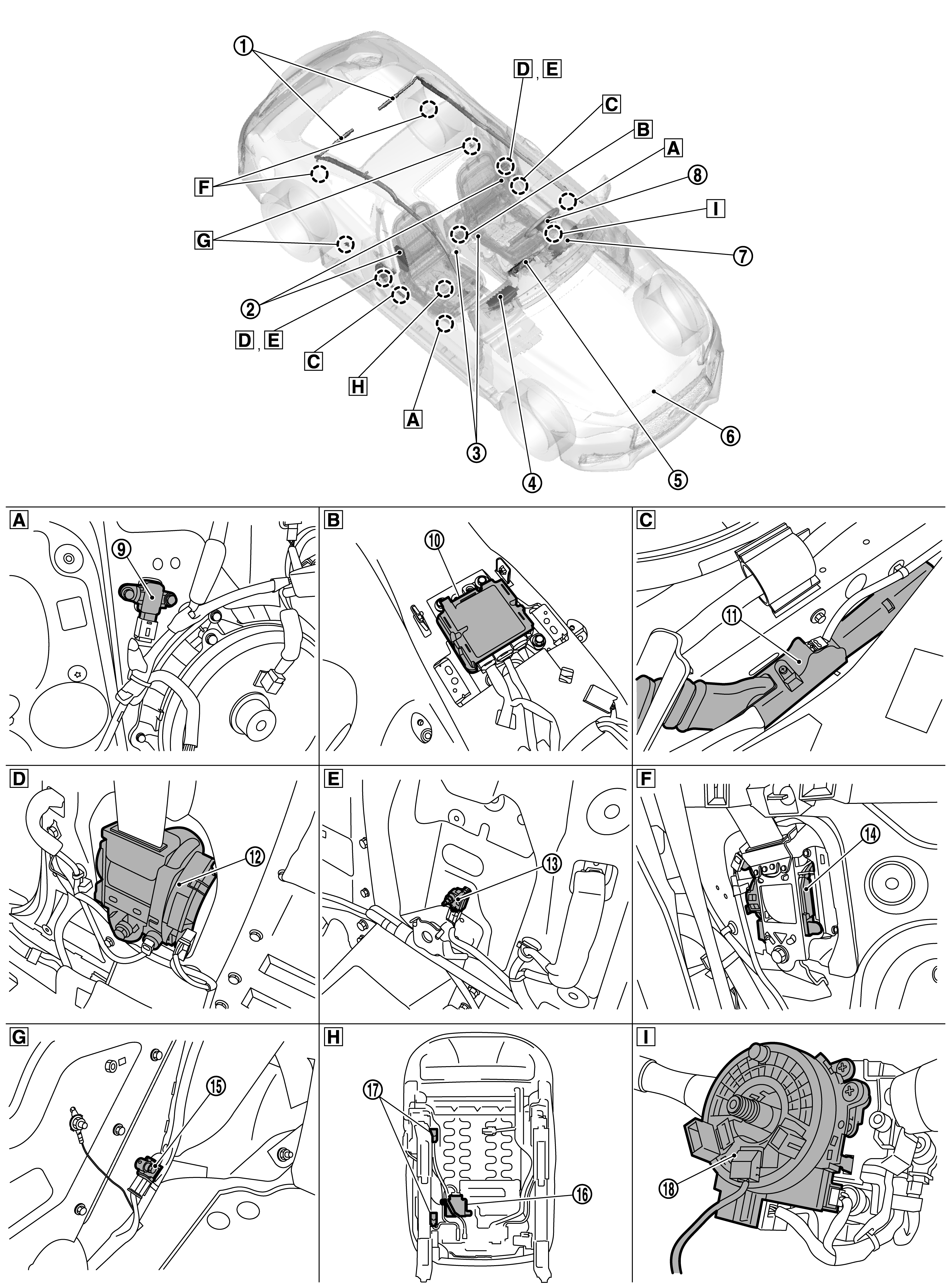

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with front door finisher removed	View with center console assembly removed	Behind floor carpet
Behind center pillar lower garnish	View with seat belt retractor removed	View with rear side finisher removed
View with rear side finisher removed	Backside passenger seat cushion frame	View with steering wheel removed

No.	Component		Function
	Curtain air bag module		Refer to CURTAIN AIR BAG MODULE .
	Side air bag module		Refer to SIDE AIR BAG MODULE .
	Seat belt buckle switch		Fastening or not fastening of seat belt is judged. This judge is used for control of front air bag system.
	Passenger air bag module		Refer to PASSENGER AIR BAG MODULE .
	Integral switch (Front passenger air bag OFF indicator)		Refer to FRONT PASSENGER AIR BAG OFF INDICATOR .
	Crash zone sensor		Refer to CRASH ZONE SENSOR .
	Combination meter (air bag warning lamp)		Indicates air bag malfunctioning and deployment by blinking and illuminating air bag warning lamp.
	Driver air bag module		Refer to DRIVER AIR BAG MODULE .
	Front door satellite sensor		Refer to SATELLITE SENSOR .
	Air bag diagnosis sensor unit		Refer to AIR BAG DIAGNOSIS SENSOR UNIT .
	Lap pre-tensioner		Refer to DOUBLE PRE-TENSIONER SEAT BELT .
	Front seat belt pre-tensioner		Refer to SEAT BELT PRE-TENSIONER WITH LOAD LIMITER .
	B-pillar satellite sensor		Refer to SATELLITE SENSOR .
	Rear seat belt pre-tensioner		Refer to SEAT BELT PRE-TENSIONER WITH LOAD LIMITER .
	C-pillar satellite sensor		Refer to SATELLITE SENSOR .
	Occupant detection system control unit		Refer to OCCUPANT DETECTION SYSTEM CONTROL UNIT .
	Occupant detection system sensor		Refer to OCCUPANT DETECTION SYSTEM SENSOR .
	Spiral cable		Refer to SPIRAL CABLE .
