Side Air Bag Module
Side air bag module is built into seatback side.
Side air bag module mainly consists of air bag
and inflator
which inflates air bag.
Courtesy of NISSAN NORTH AMERICA, INC.

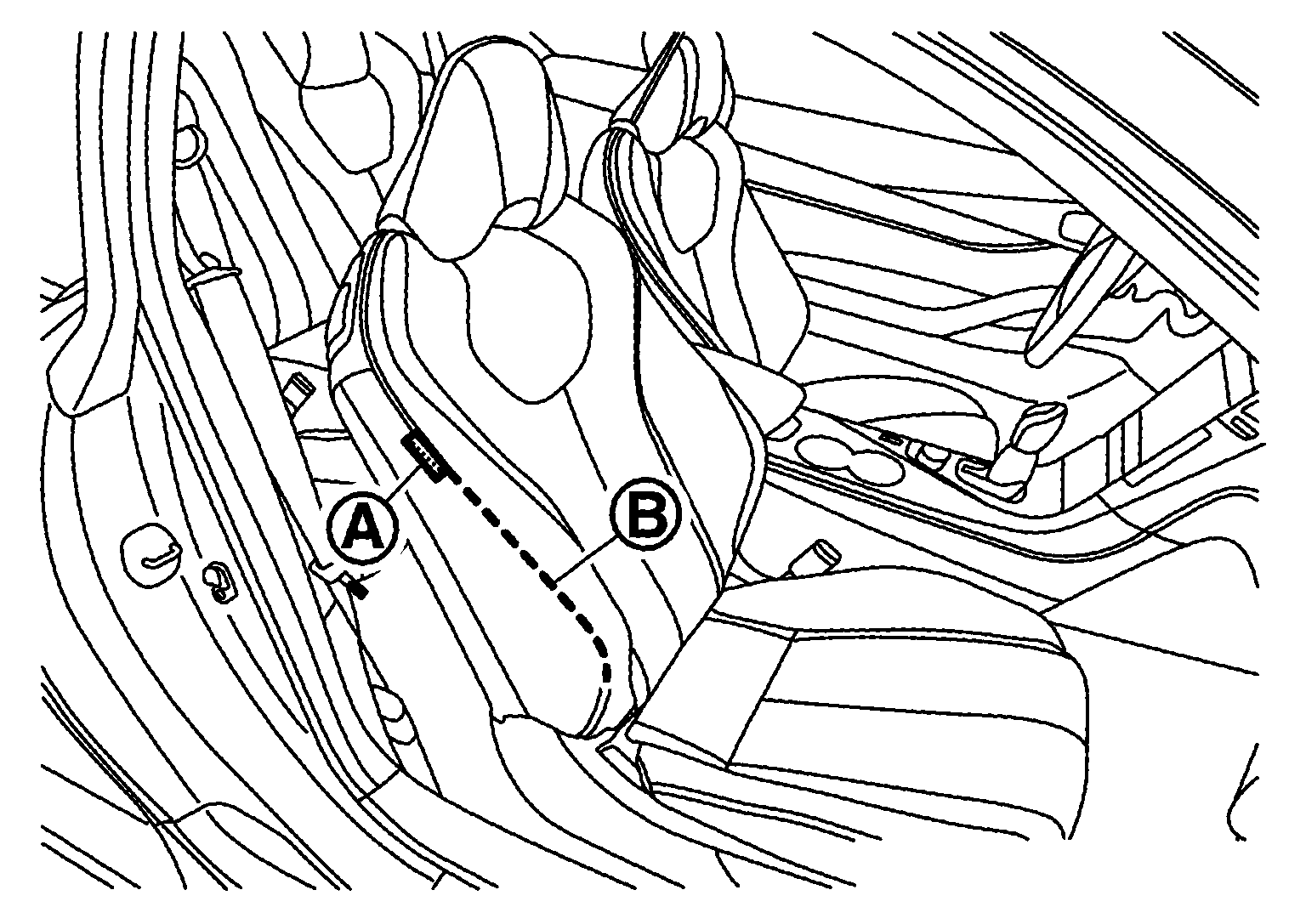

Identification mark
is installed to seatback side stitch indicating that side air bag is equipped.
Courtesy of NISSAN NORTH AMERICA, INC.
Side air bag inflates through seatback side stitch
.
Courtesy of NISSAN NORTH AMERICA, INC.
