Driver Air Bag Module
Driver Air Bag Module
Driver air bag module is built into steering wheel.
Driver air bag module mainly consists of air bag
and inflator
which inflates air bag.
Courtesy of NISSAN NORTH AMERICA, INC.

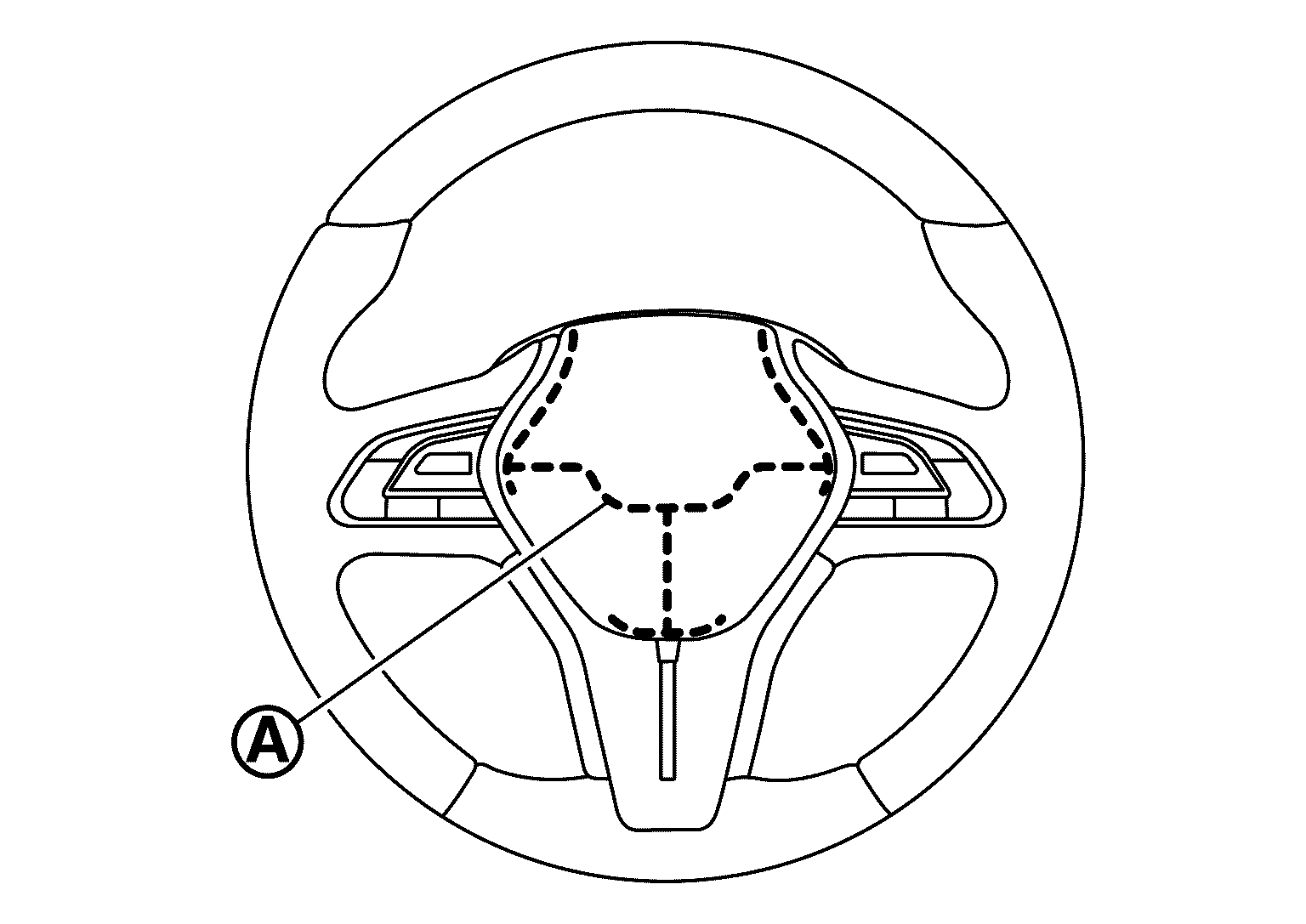

Driver air bag inflates by breaking steering wheel center pad surface
.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
