Curtain Air Bag Module
- Curtain air bag module is built into roof side portion (LH and RH).

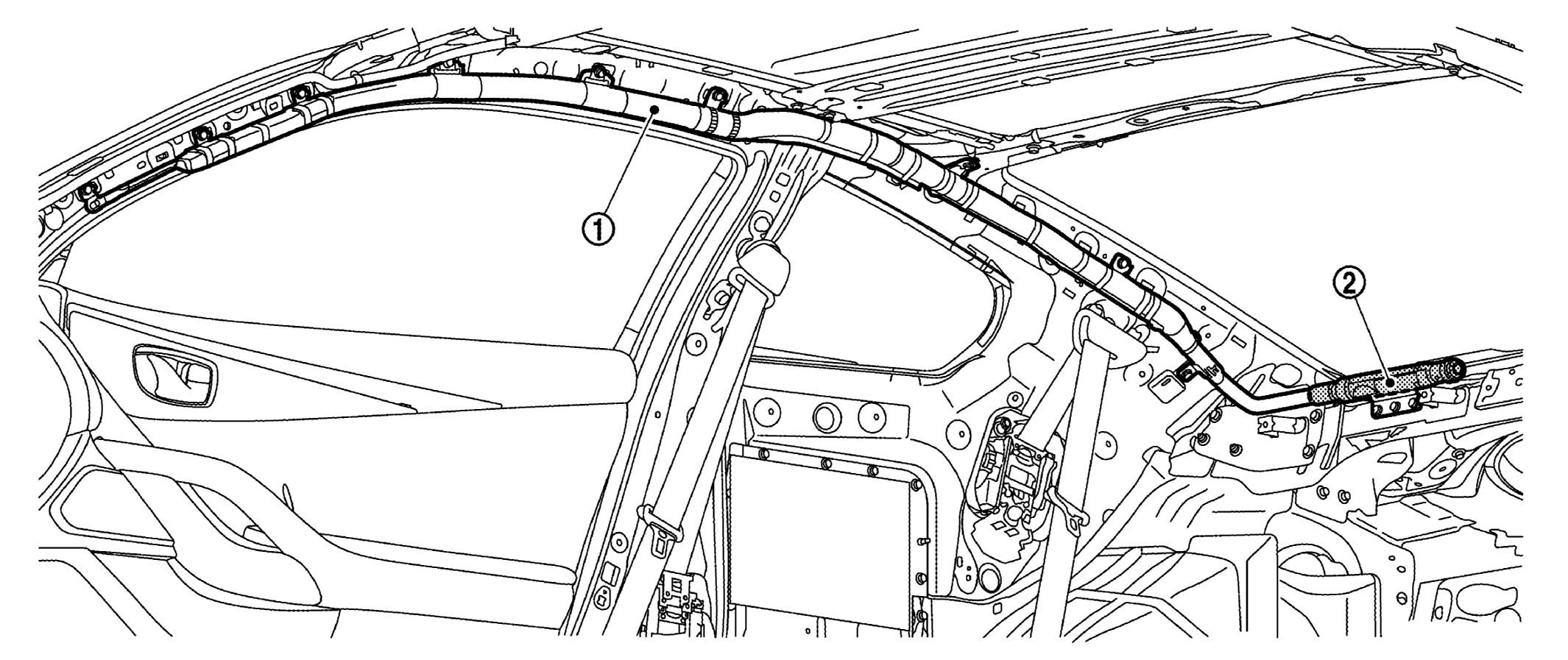

- Curtain air bag module mainly consists of air bag
and inflator
which inflates air bag.

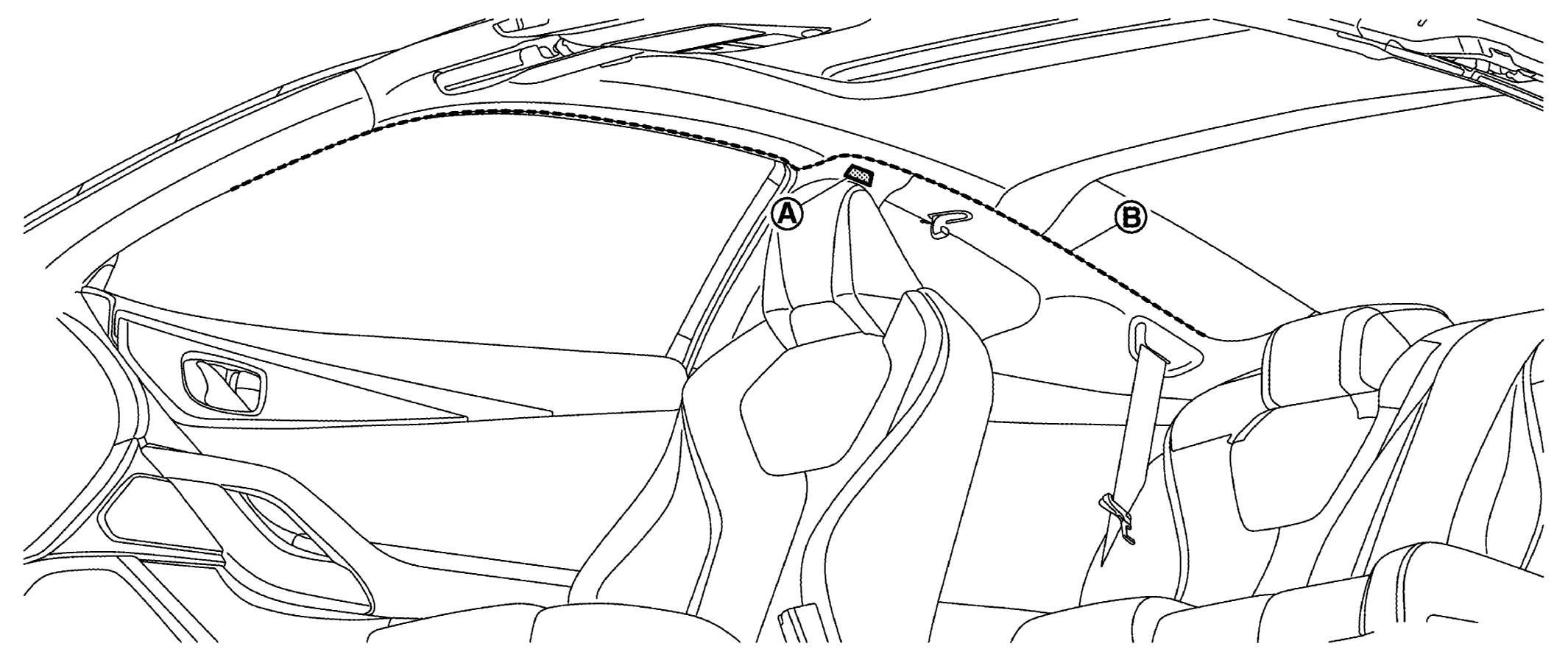

- Identification mark
is installed to center pillar upper garnish upper indicating that SRS curtain air bag is equipped.
- Curtain air bag inflates through a space
between headliner, rear pillar finisher and roof side portion.
