Component Parts Location

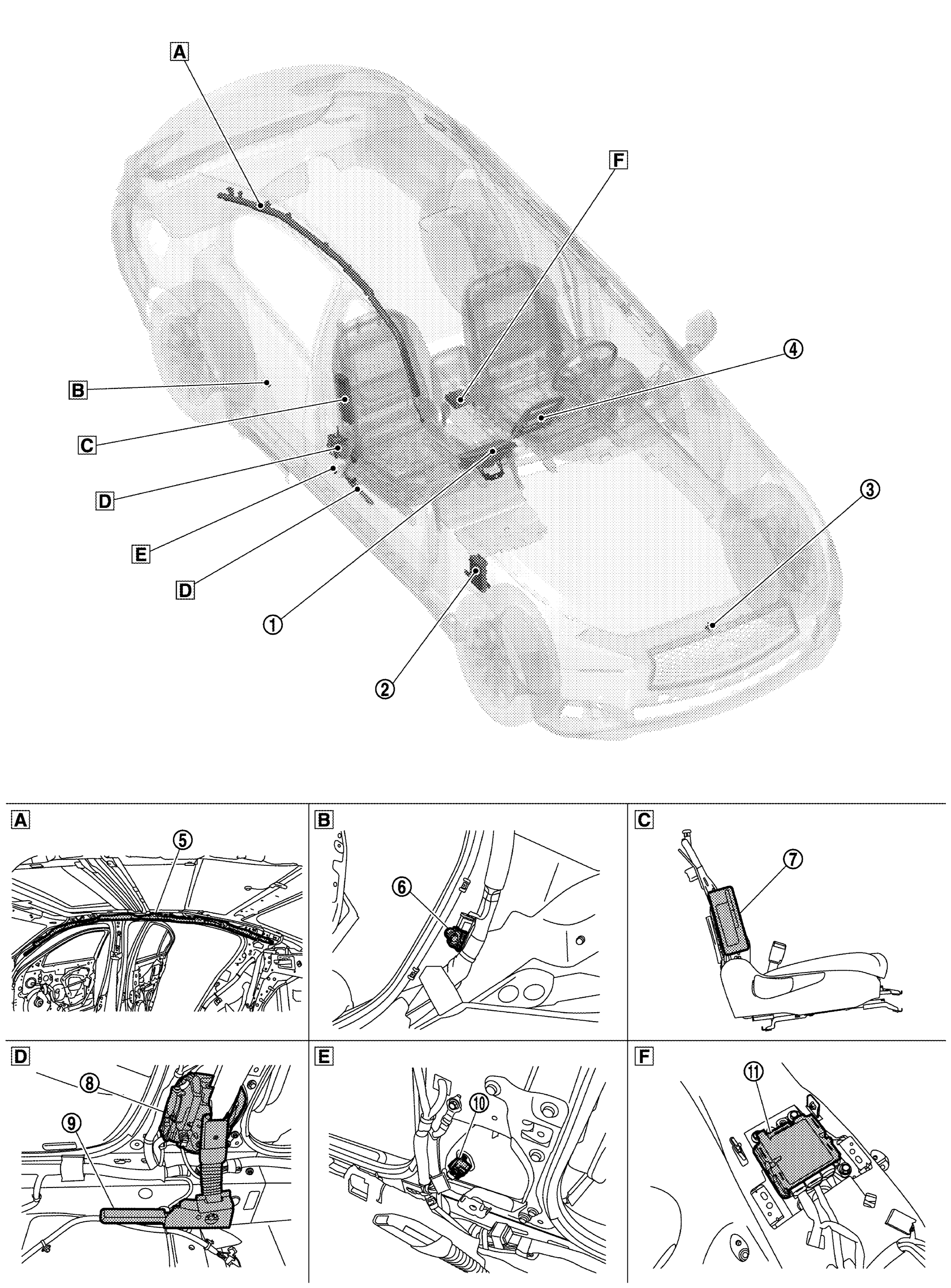

Fig 1: SRS Airbag Control System Component Parts Location (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

	View with headlining assembly removed		Behind rear wheel house garnish		View with seatback pad removed
	Behind center pillar lower garnish		View with seat belt pre-tensioner retractor removed		View with center console assembly removed

No.	Component		Function
	Passenger air bag module		Refer to PASSENGER AIR BAG MODULE .
	BCM		Receive the collision detection signal when air bag diagnosis sensor unit detects collision. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Crash zone sensor		Refer to CRASH ZONE SENSOR .
	Integral switch (Front passenger air bag OFF indicator)		Refer to FRONT PASSENGER AIR BAG OFF INDICATOR .
	Curtain air bag module RH		Refer to CURTAIN AIR BAG MODULE .
	C-pillar satellite sensor RH		Refer to SATELLITE SENSOR .
	Side air bag module RH		Refer to SIDE AIR BAG MODULE .
	Seat belt pre-tensioner RH		Refer to SEAT BELT PRE-TENSIONER WITH LOAD LIMITER .
	Lap pre-tensioner RH		Refer to DOUBLE PRE-TENSIONER SEAT BELT .
	B-pillar satellite sensor RH		Refer to SATELLITE SENSOR .
	Air bag diagnosis sensor unit		Refer to AIR BAG DIAGNOSIS SENSOR UNIT .

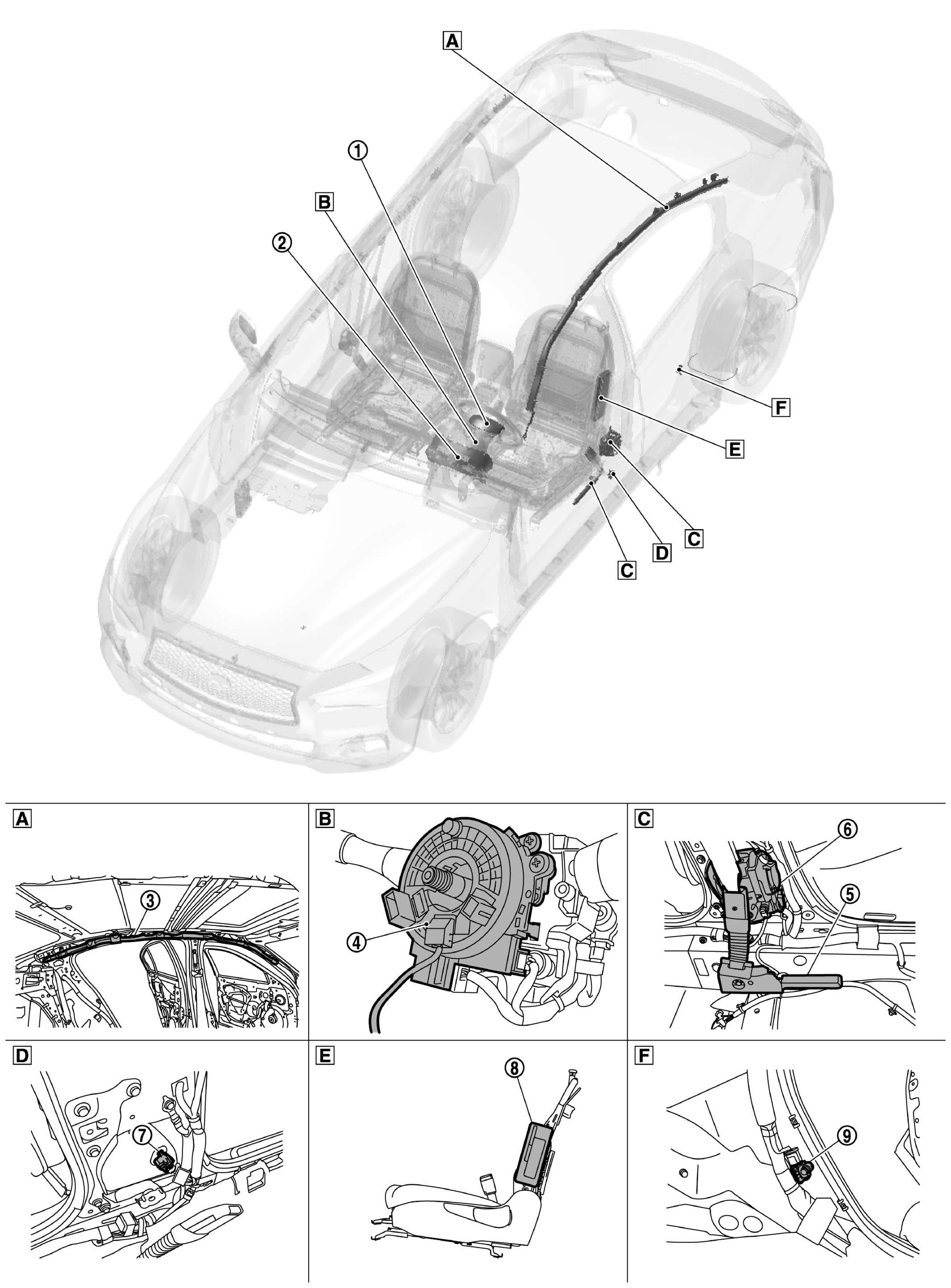

Fig 2: SRS Airbag Control System Component Parts Location (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

	View with headlining assembly removed		View with steering wheel removed		Behind center pillar lower garnish
	View with seat belt pre-tensioner retractor removed		View with seatback pad removed		Behind rear wheel house garnish

No.	Component	Function
	Driver air bag module	Refer to DRIVER AIR BAG MODULE .
	Combination meter (air bag warning lamp)	Indicates air bag malfunctioning and deployment by blinking and illuminating air bag warning lamp.
	Curtain air bag module LH	Refer to CURTAIN AIR BAG MODULE .
	Spiral cable	Refer to SPIRAL CABLE .
	Lap pre-tensioner LH	Refer to DOUBLE PRE-TENSIONER SEAT BELT .
	Seat belt pre-tensioner LH	Refer to SEAT BELT PRE-TENSIONER WITH LOAD LIMITER .
	B-pillar satellite sensor LH	Refer to SATELLITE SENSOR .
	Side air bag module LH	Refer to SIDE AIR BAG MODULE .
	C-pillar satellite sensor LH	Refer to SATELLITE SENSOR .

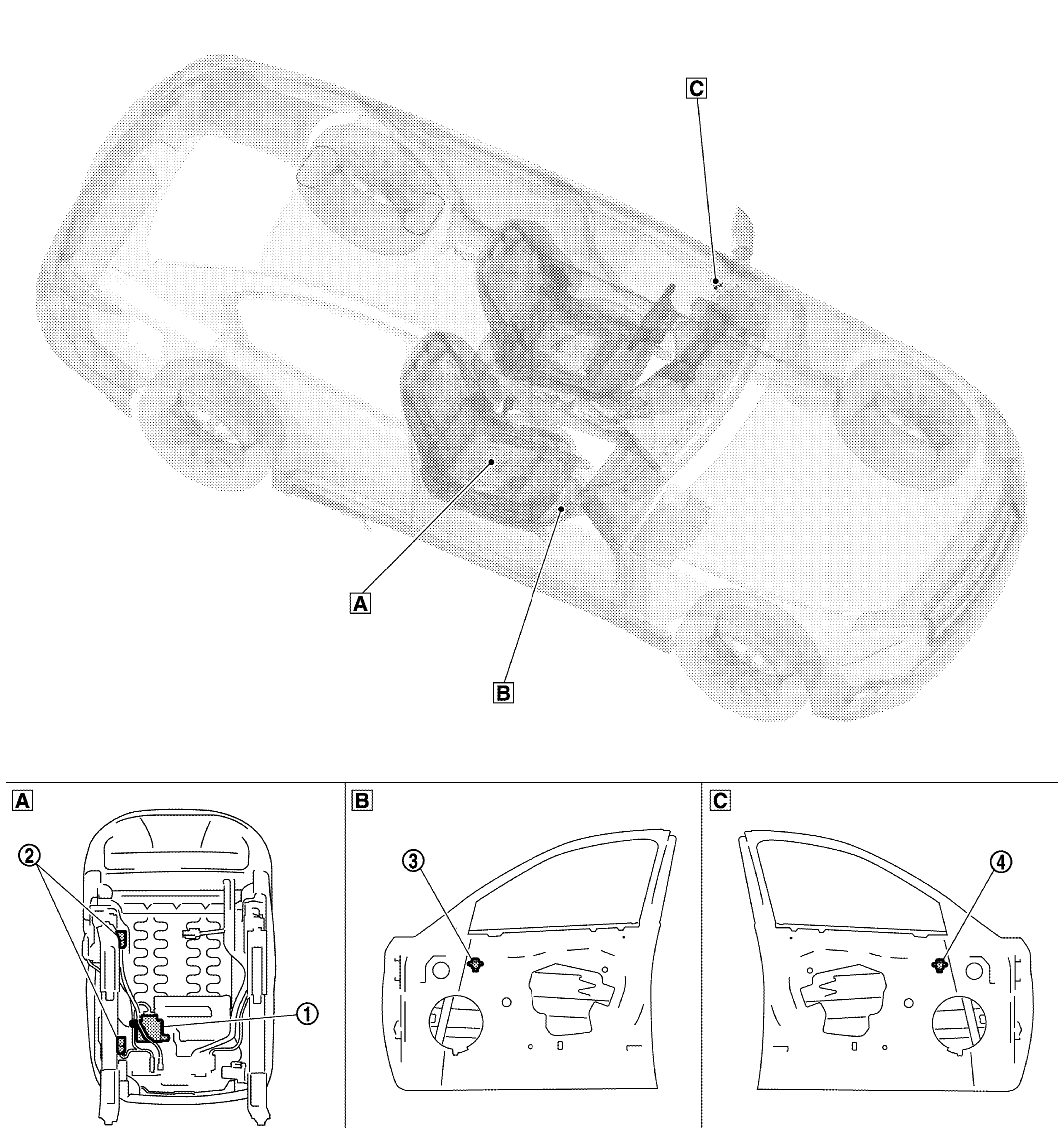

Fig 3: SRS Airbag Control System Component Parts Location (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Backside passenger seat cushion frame

View with front door finisher RH removed

View with front door finisher LH removed

No.	Component		Function
	Occupant detection system control unit		Refer to OCCUPANT DETECTION SYSTEM CONTROL UNIT .
	Occupant detection system sensor		Refer to OCCUPANT DETECTION SYSTEM SENSOR .
	Front door satellite sensor RH		Refer to SATELLITE SENSOR .
	Front door satellite sensor LH		Refer to SATELLITE SENSOR .
