System Description
>>
Component Parts
>>
Air Bag Module
>>
Driver Air Bag Module
Driver Air Bag Module
Driver air bag module is built into steering wheel.
Driver air bag module mainly consists of air bag and inflator which inflates air bag.

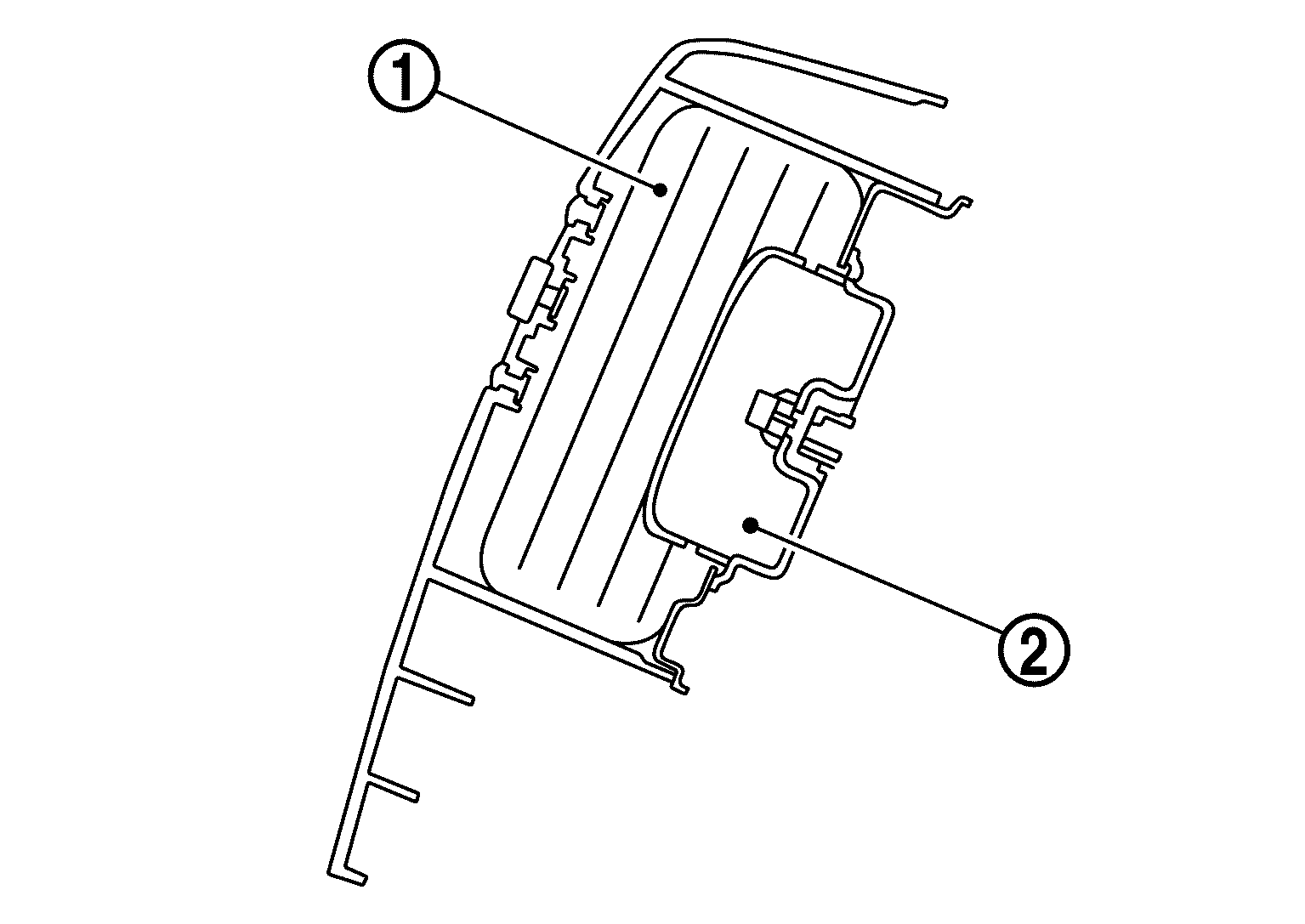

Fig 1: Identifying Driver Air Bag Module And Inflator
Courtesy of NISSAN NORTH AMERICA, INC.
Driver air bag inflates by breaking steering wheel center pad surface.

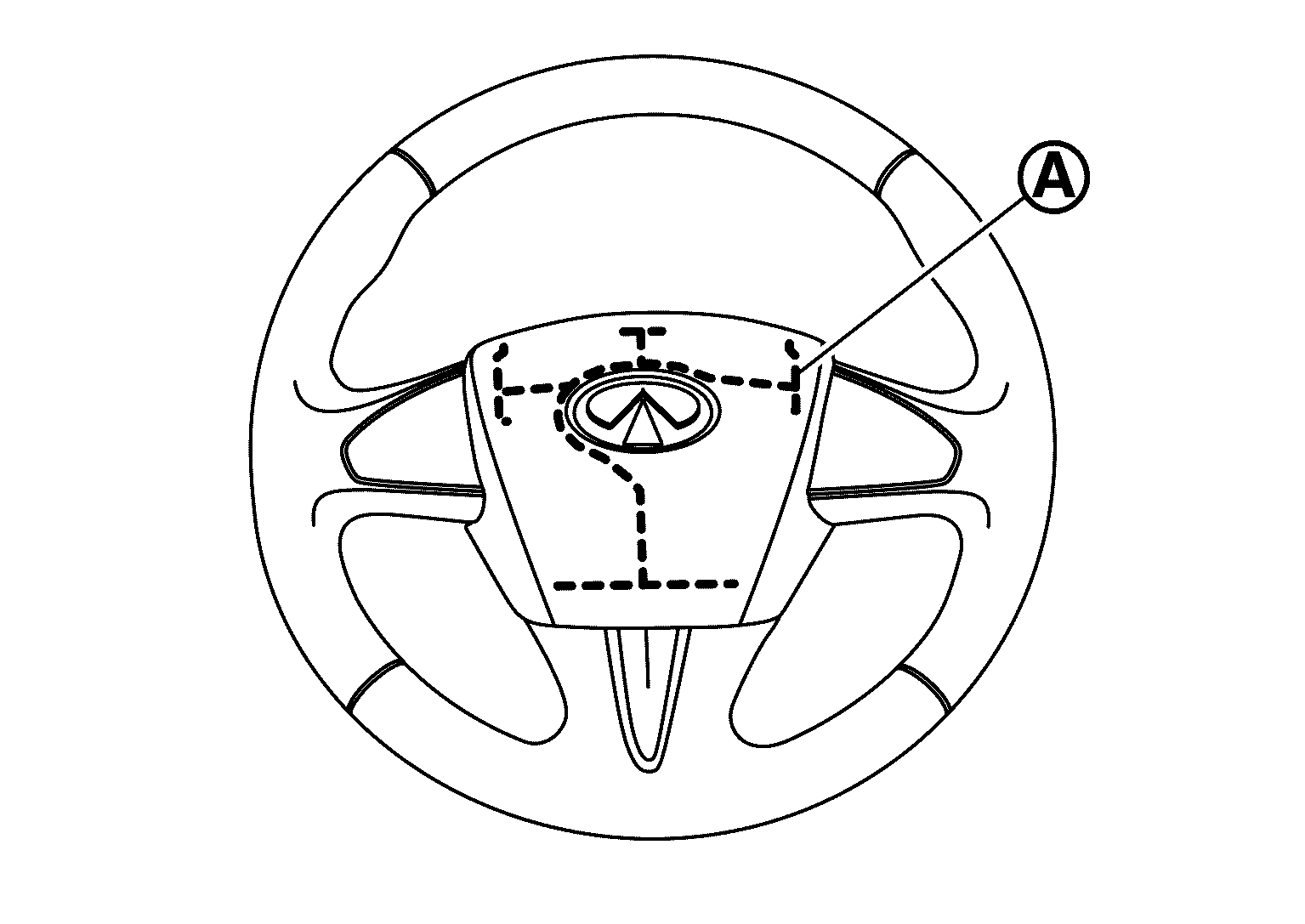

Fig 2: Identifying Steering Wheel Center Pad Surface
Courtesy of NISSAN NORTH AMERICA, INC.
