Curtain Air Bag Module

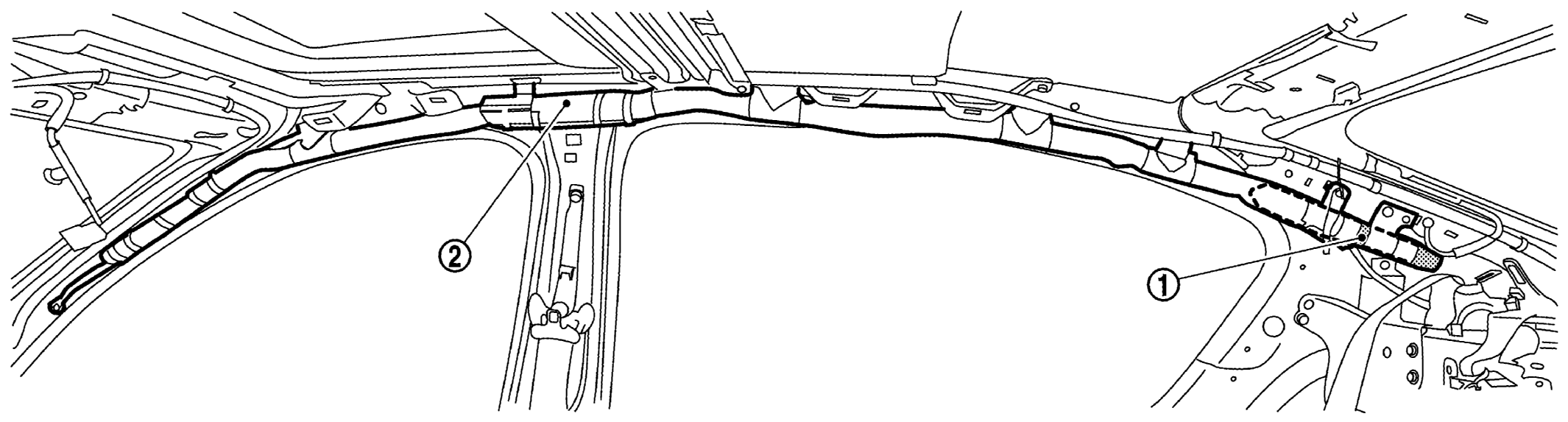

- Curtain air bag module is built into roof side portion LH and RH.
- Curtain air bag module mainly consists of air bag and inflator which inflates air bag.

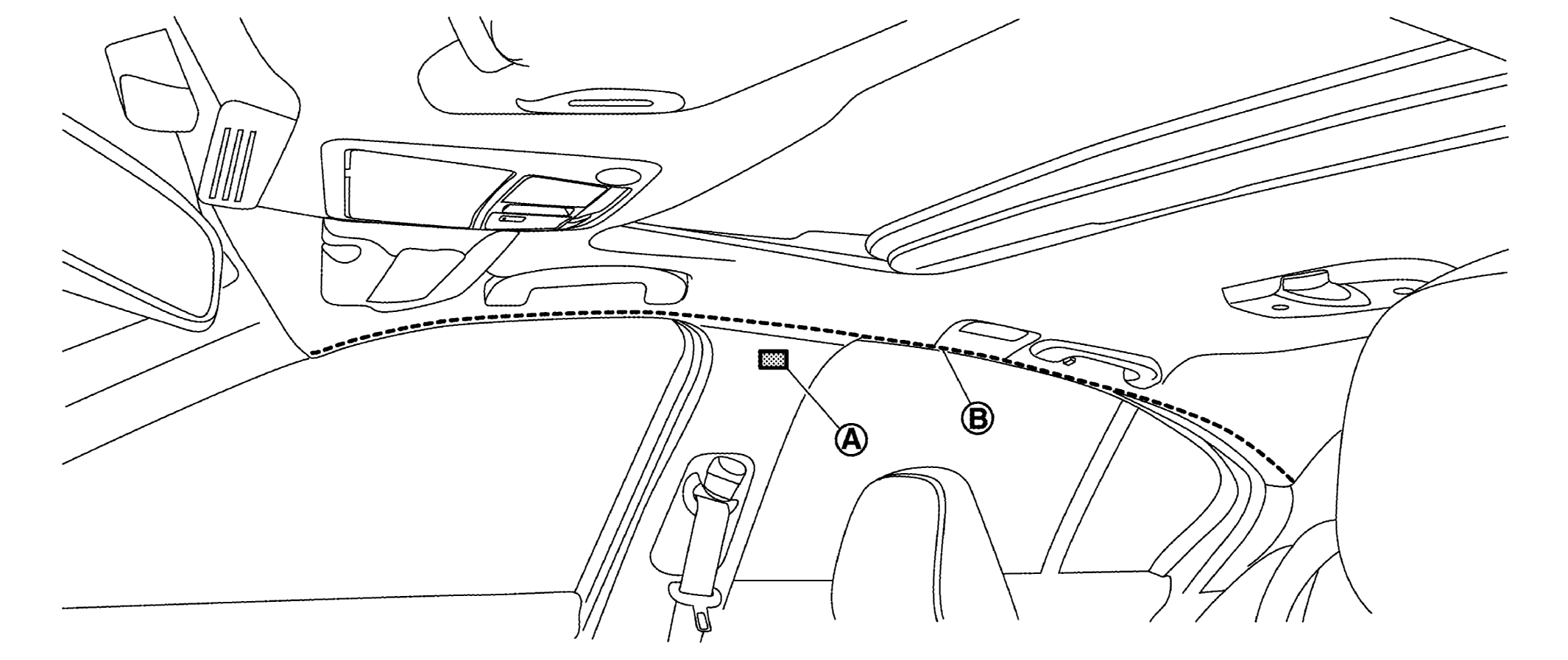

- Identification mark is installed to center pillar upper garnish upper indicating that SRS curtain air bag is equipped.
- Curtain air bag inflates through a space between headliner and roof side portion.
