Infiniti
>>
2015
>>
Q50 Base, RWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
SRS Airbag (Exc Hybrid)
>>
System Description
>>
Component Parts
>>
Air Bag Module
>>
Passenger Air Bag Module
Passenger Air Bag Module
Passenger air bag module is built into instrument panel.
Passenger air bag module mainly consists of air bag and inflator which inflates air bag.

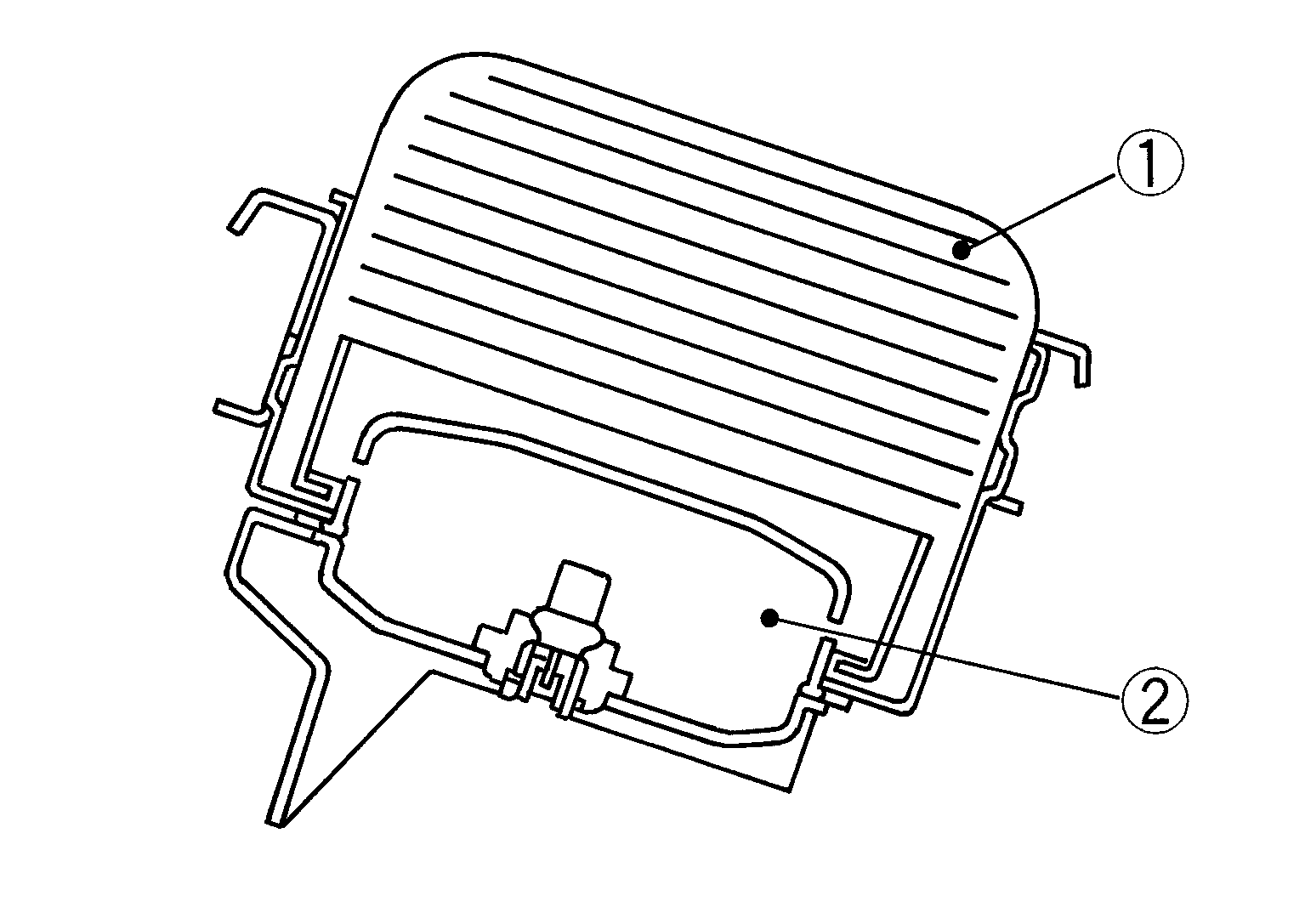

Fig 1: Identifying Passenger Air Bag And Inflator
Courtesy of NISSAN NORTH AMERICA, INC.
Passenger air bag inflates by breaking instrument panel surface.

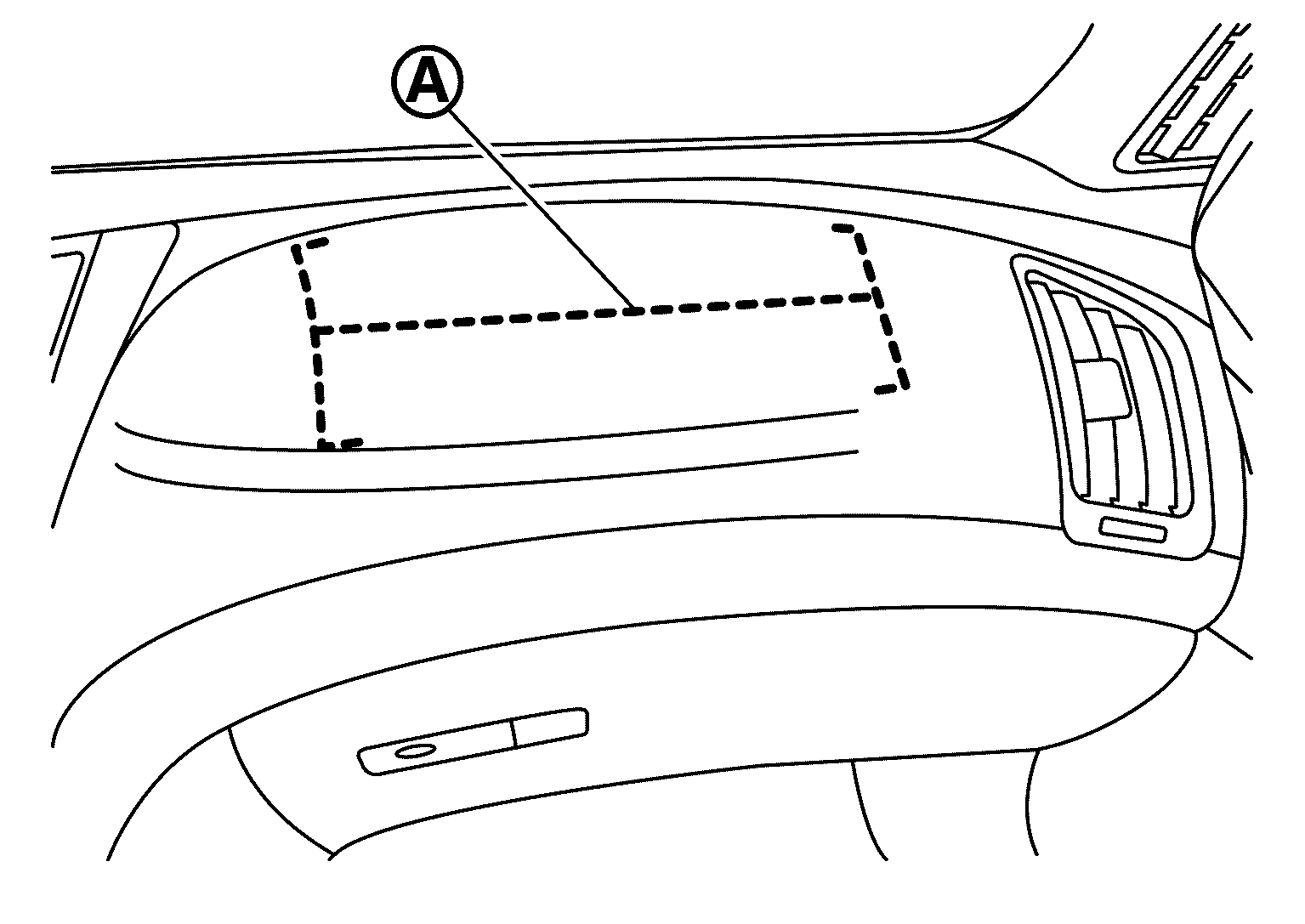

Fig 2: Identifying Instrument Panel Surface
Courtesy of NISSAN NORTH AMERICA, INC.
