Component Parts Location

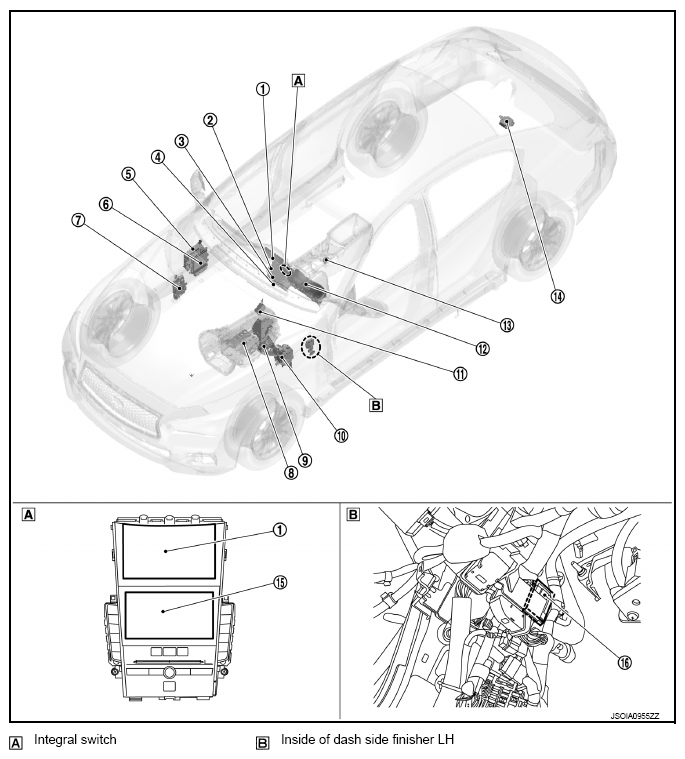

Fig 1: Drive Mode System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Part	Description
(1)	Display control unit	Display control unit receives the following signal from integral switch. Select signal Display control unit transmits information of PERSONAL mode set by the driver to the chassis control module via the following signal. Drive mode characteristics customizing signal The display control unit transmits an user information signal to the following units: Combination meter A/C auto amp. Driver seat control unit ADAS control unit Chassis control unit The display control unit receives a key link signal and a log-in permit signal from chassis control module. The display control unit receives a key ID signal from BCM.
(2)	A/C auto amp.	The A/C auto amp. receives a key link signal and a log-in permit signal from chassis control module. The A/C auto amp. receives a key ID signal from BCM. The A/C auto amp. receives a user information signal from display control unit. Refer to "AUTOMATIC AIR CONDITIONING SYSTEM: COMPONENT PARTS LOCATION " for installation.
(3)	NAVI control unit	The NAVI control unit receives a user information signal from display control unit. Refer to "COMPONENT PARTS LOCATION " for installation.
(4)	AV control unit	The AV control unit receives a user information signal from display control unit. Refer to "COMPONENT PARTS LOCATION " for installation.
(5)	Steering force control module	Steering force control module receives the following signal from chassis control module. Drive mode signal Steering force control module controls the steering effort and response according to the received signal. Refer to "COMPONENT PARTS LOCATION " for installation.
(6)	ECM	ECM receives the following signal from TCM. Drive mode signal ECM controls throttle angle characteristics and torque according to the received signal and transmits the following signals to ADAS control unit. ECO pedal reaction force control signal Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION " for installation.
(7)	BCM	The BCM transmits a key ID signal to the following units: Combination meter Display control unit A/C auto amp. Chassis control unit Driver seat control unit ADAS control unit Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for installation.
(8)	TCM	TCM receives the following signal from chassis control module. Drive mode signal TCM selects a shift pattern according to the received signal and transmits the following signal to ECM and the ADAS control unit. Drive mode signal Refer to "A/T CONTROL SYSTEM: COMPONENT PARTS LOCATION " for installation.
(9)	Accelerator pedal actuator	Accelerator pedal actuator receives the following signal from the ADAS control unit. ECO pedal reaction force control signal Accelerator pedal actuator exerts a feedback force on the accelerator pedal according to the received signal.
(10)	ABS actuator and electric unit	ABS actuator and electric unit receives the following signals from chassis control module. Active trace control function control signal ABS actuator and electric unit controls the active trace control function according to the received signal. Refer to "COMPONENT PARTS LOCATION " for installation.
(11)	Driver seat control unit	The driver seat control unit receives a key link signal and a log-in permit signal from chassis control module. The driver seat control unit receives a user information signal from display control unit. The driver seat control unit receives a key ID signal from BCM. Refer to "POWER SEAT SYSTEM: COMPONENT PARTS LOCATION " for installation.
(12)	Combination meter	Combination meter receives the following signals from chassis control module. Drive mode signal Key link signal Log-in permit signal Combination meter displays the status of drive mode selected by the driver on the information display according to the received signal. The combination meter receives a key ID signal from BCM. The combination meter receives a user information signal from display control unit. Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for installation.
(13)	Drive mode select switch	"DRIVE MODE SELECT SWITCH "
(14)	ADAS control unit	ADAS control unit receives the following signal from chassis control module. Drive mode signal Key link signal Log-in permit signal ADAS control unit controls accelerator reaction force of accelerator pedal actuator according to the received signal and transmits the following signals to accelerator pedal actuator. ECO pedal reaction force control signal The ADAS control unit receives a user information signal from display control unit. The ADAS control unit receives a key ID signal from BCM. Refer to "COMPONENT PARTS LOCATION " for installation.
