Intelligent Cruise Control System (ICC) (Except Hybrid)
>>
System Description
>>
Component Parts
>>
Component Parts Location
Component Parts Location

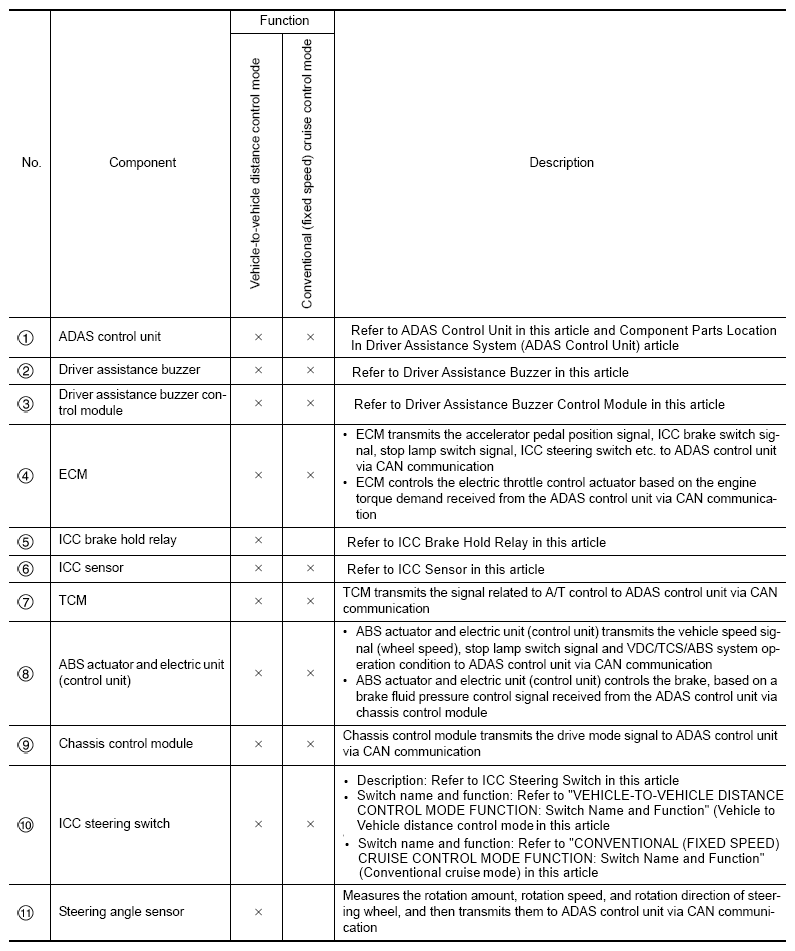

Fig 1: Cruise Control System Components Location (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

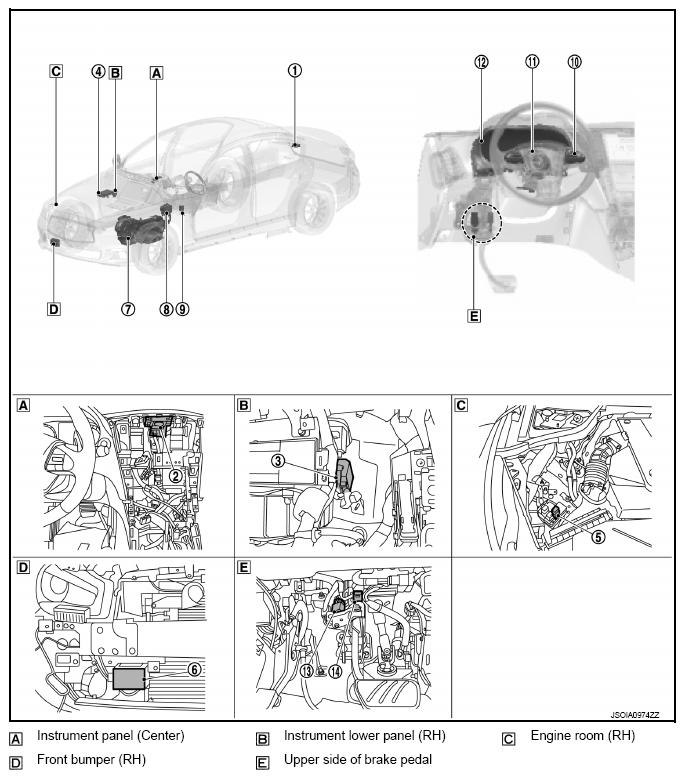

Fig 2: Cruise Control System Components Location (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Cruise Control System Components Location (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
