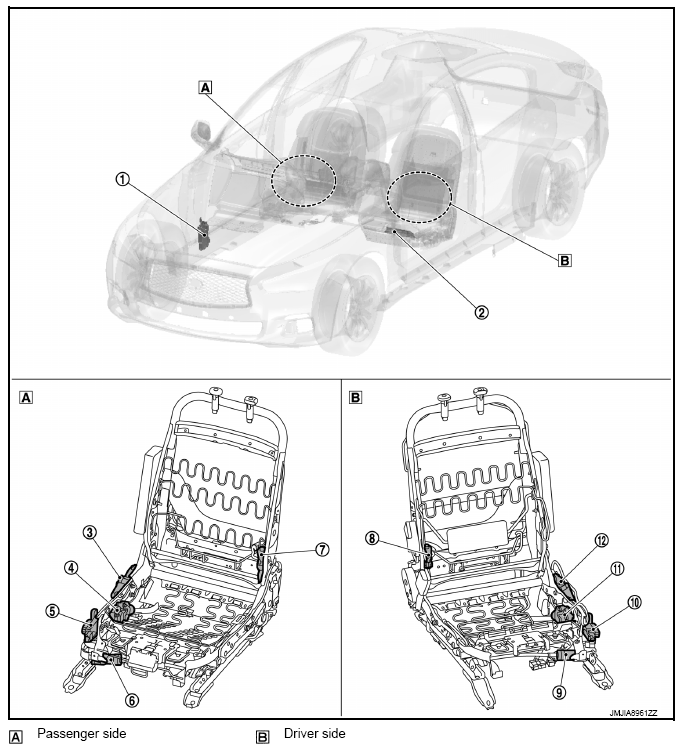

| (1) |
BCM |
Supplies at all times the power received from battery to power seat switch. |
| (2) |
Driver seat control unit |
Operate the specific seat motor with the signal from power seat switch. |
| (3) |
Lifting motor (rear) (passenger side) |
- Lifting motor (rear) is installed to seat frame assembly.
- Lifting motor (rear) is moved upward/downward by changing the rotation direction of lifting motor (rear).
|
| (4) |
Lifting motor (front) (passenger side) |
- Lifting motor (front) is installed to seat frame assembly.
- Lifting motor (front) is moved upward/downward by changing the rotation direction of lifting motor (front).
|
| (5) |
Power seat switch (passenger side) |
Refer to
"POWER SEAT SWITCH ". |
| (6) |
Sliding motor (passenger side) |
- Sliding motor is installed to the seat frame assembly.
- Slides the seat forward/backward by changing the rotation direction of sliding motor.
|
| (7) |
Reclining motor (passenger side) |
- Reclining motor is installed to seat frame assembly.
- Seatback is reclined forward/backward by changing the rotation direction of reclining motor.
|
| (8) |
Reclining motor (driver side) |
- Reclining motor is installed to seat frame assembly.
- Reclining motor is activated with driver seat control unit.
- Seatback is reclined forward/backward by changing the rotation direction of reclining motor.
|
| (9) |
Sliding motor (driver side) |
- Sliding motor is installed to the seat frame assembly.
- Sliding motor is activated with driver seat control unit.
- Slides the seat forward/backward by changing the rotation direction of sliding motor.
|
| (10) |
Power seat switch (driver side) |
Refer to
"POWER SEAT SWITCH ". |
| (11) |
Lifting motor (front) (driver side) |
- Lifting motor (front) is installed to seat frame assembly.
- Lifting motor (front) is activated with driver seat control unit.
- Lifting motor (front) is moved upward/downward by changing the rotation direction of lifting motor (front).
|
| (12) |
Lifting motor (rear) (driver side) |
- Lifting motor (rear) is installed to seat frame assembly.
- Lifting motor (rear) is activated with driver seat control unit.
- Lifting motor (rear) is moved upward/downward by changing the rotation direction of lifting motor (rear).
|
