Instrument Panel Center Trim Panel Replacement (Right Hand Drive)

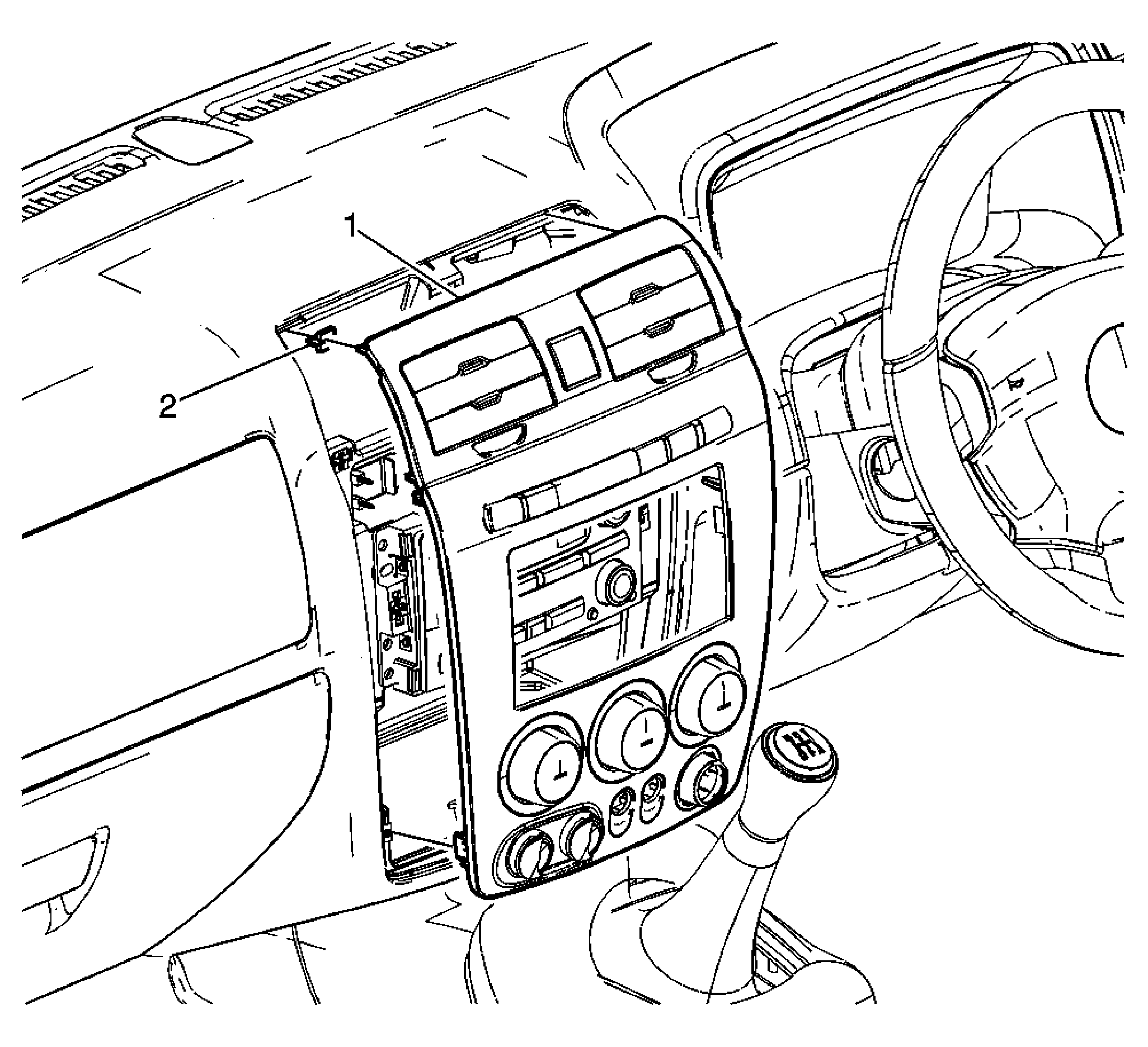

Fig 1: Replacing Instrument Panel Center Trim Panel (Right Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Accessory Trim Plate Assembly Procedure Disconnect the electrical connectors. Remove the rear wiper washer switch. Refer to Rear Window Wiper and Washer Switch Replacement . Remove the HVAC control module. Refer to Heater and Air Conditioning Control Replacement . Remove the instrument panel accessory switch. Refer to Accessory Switch Replacement . Remove the 12-volt accessory power outlets. Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement . Remove the HVAC center air outlets. Refer to Instrument Panel Center Air Outlet Replacement . Remove the off road lamp switches, if equipped. Refer to Off Road Lamp Switch Replacement .
2	Retainer Clip (Qty: 6)

Callout

Component Name

Instrument Panel Center Accessory Trim Plate Assembly

Procedure

Disconnect the electrical connectors.
Remove the rear wiper washer switch. Refer to Rear Window Wiper and Washer Switch Replacement .
Remove the HVAC control module. Refer to Heater and Air Conditioning Control Replacement .
Remove the instrument panel accessory switch. Refer to Accessory Switch Replacement .
Remove the 12-volt accessory power outlets. Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement .
Remove the HVAC center air outlets. Refer to Instrument Panel Center Air Outlet Replacement .
Remove the off road lamp switches, if equipped. Refer to Off Road Lamp Switch Replacement .

Retainer Clip (Qty: 6)
