Off Road Lamp Switch Replacement

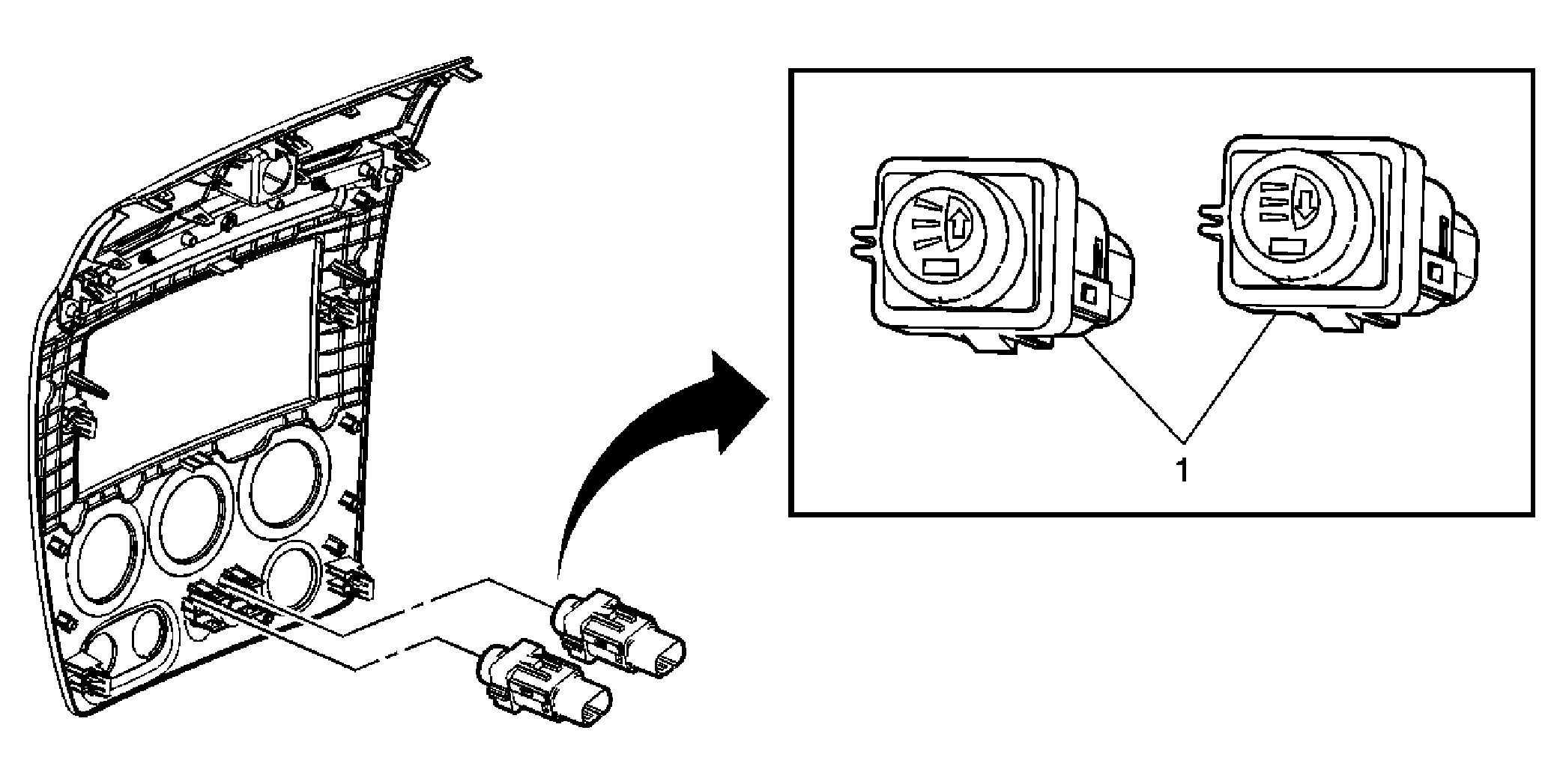

Fig 1: Switch Replacement - Off-Road Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the center instrument panel (I/P) trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Right Hand Drive) or Instrument Panel Center Trim Panel Replacement (Left Hand Drive) .
1	Off Road Lights Front End Mounted Switch Assembly Tip: If the vehicle is equipped with both roof and front end mounted off road lights, note the connector location to avoid crossing the switches.
