Instrument Panel Center Air Outlet Replacement

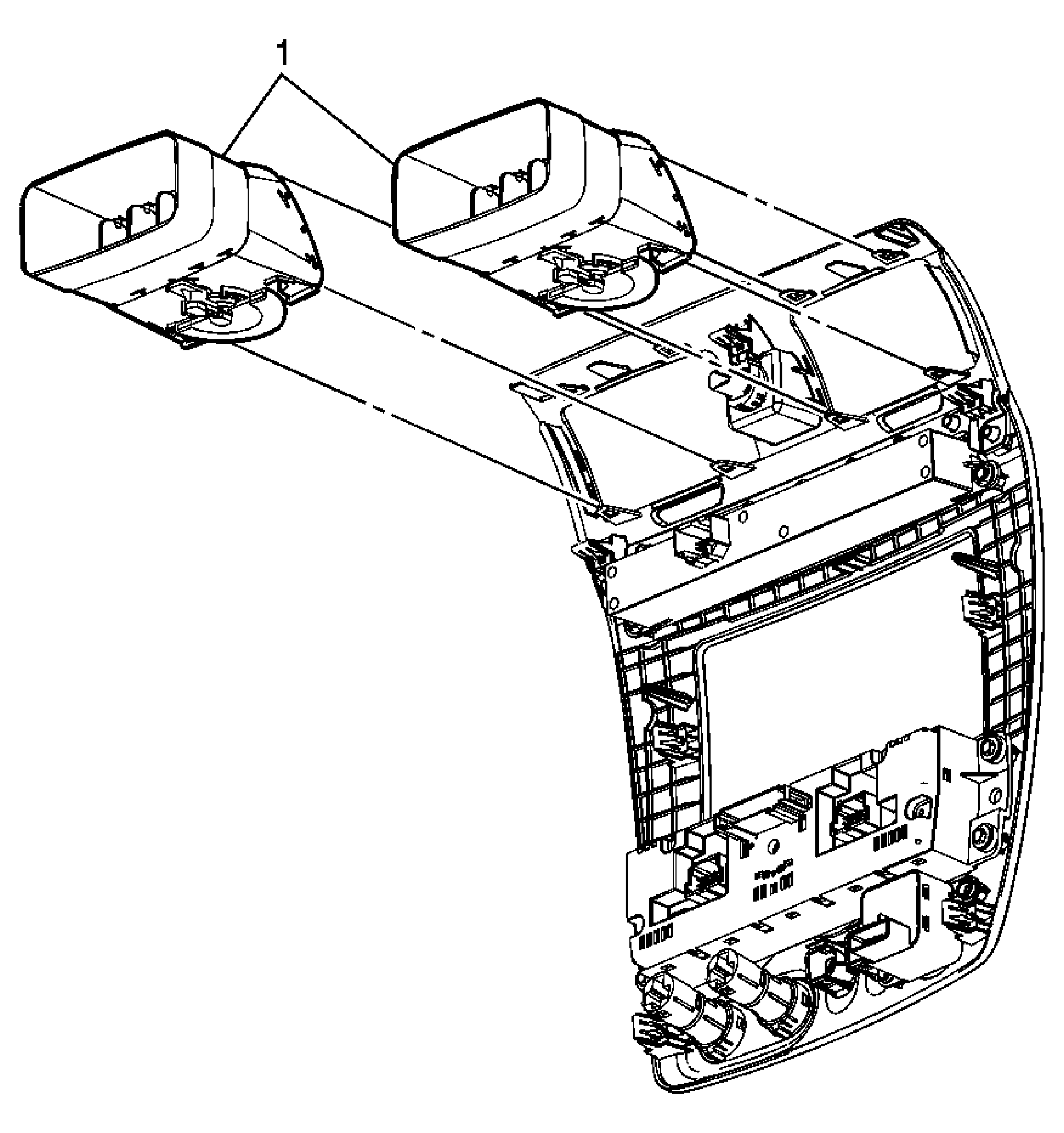

Fig 1: Air Outlet Replacement - Instrument Panel - Center
GM1554909Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the center instrument panel trim plate. Refer to Instrument Panel Center Trim Panel Replacement (Right Hand Drive) or Instrument Panel Center Trim Panel Replacement (Left Hand Drive) .
1 Air Center Grille Outlet
Tip:  Depress the tab and pull the air outlet grille from the center instrument panel trim plate.
