Heater and Air Conditioning Control Replacement

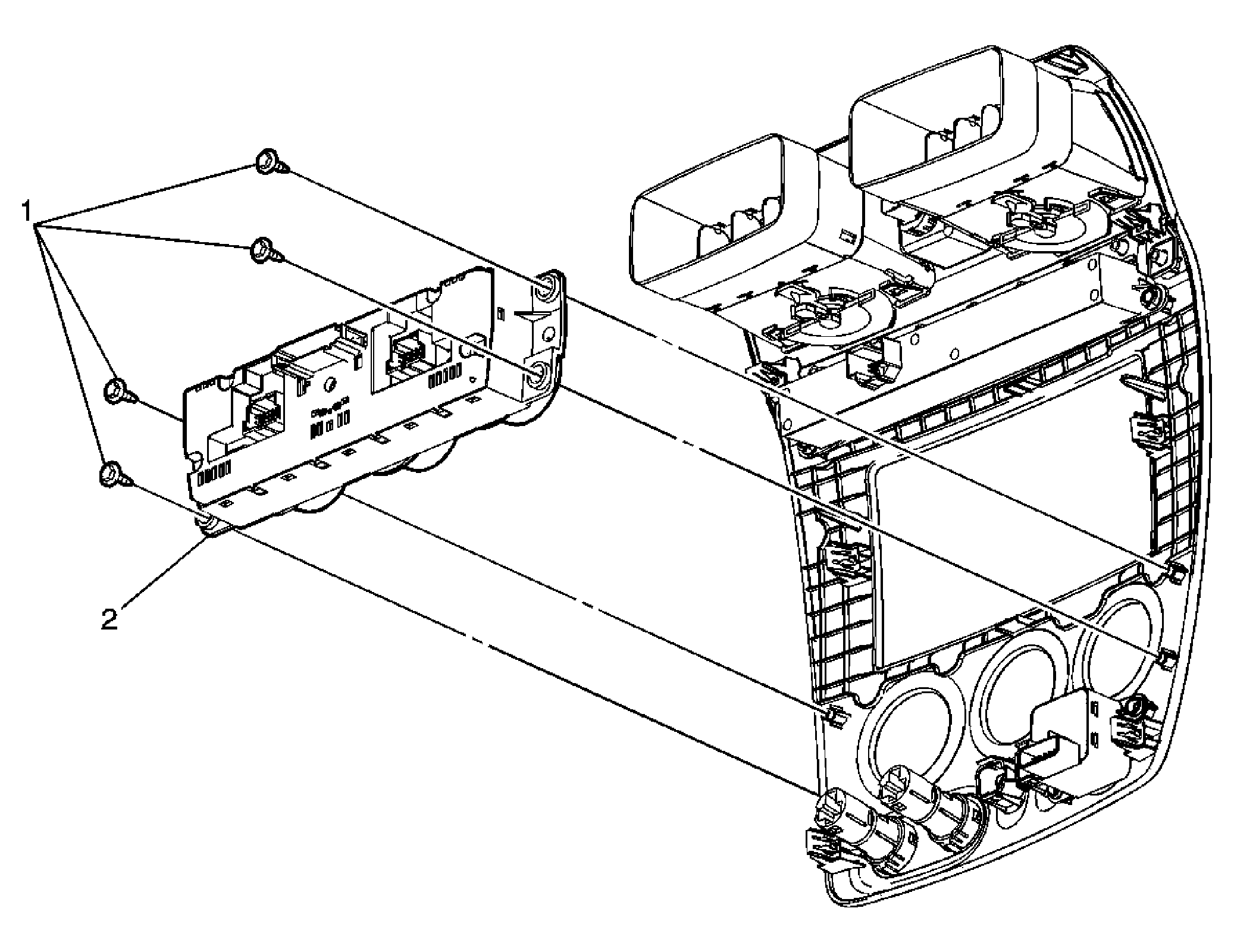

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the center instrument panel trim plate. Refer to Instrument Panel Center Trim Panel Replacement (Right Hand Drive) or Instrument Panel Center Trim Panel Replacement (Left Hand Drive) . |
|
| 1 | HVAC Control Module Screw
CAUTION:
Refer to Fastener Caution
. Tip: Disconnect the electrical connector. Tighten: 1.9 N.m (17 lb in) |
| 2 | HVAC Control Module |
