Transmission Control Replacement

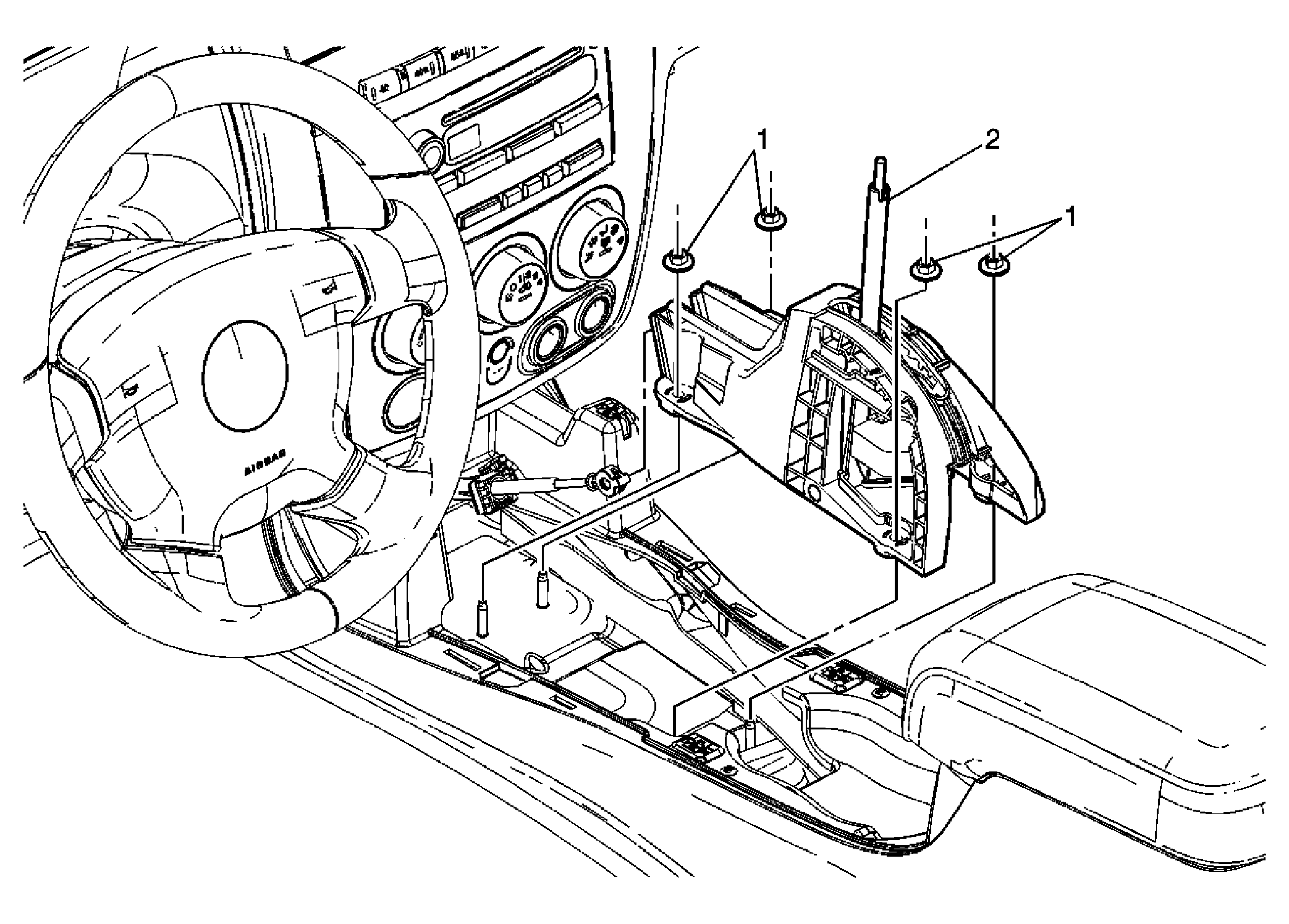

Fig 1: Floor Shift Control Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the floor shift control knob. Refer to Floor Shift Control Knob Replacement . Remove the console upper trim plate. Refer to Front Floor Upper Console Trim Plate Replacement (RHD w/Manual Transmission) or Front Floor Upper Console Trim Plate Replacement (RHD w/Automatic Transmission) or Front Floor Upper Console Trim Plate Replacement (LHD w/Automatic Transmission) or Front Floor Upper Console Trim Plate Replacement (LHD w/Manual Transmission) . Disconnect the transmission range selector cable from the floor shift control. Refer to Range Selector Lever Cable Replacement (3.7L) or Range Selector Lever Cable Replacement (5.3L) .
1	Floor Shift Control Bolts (Qty: 4) Tighten: 20 N.m (15 lb ft)
2	Floor Shift Control

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Floor Shift Control Bolts (Qty: 4)

Tighten: 20 N.m (15 lb ft)

Floor Shift Control
