Front Floor Upper Console Trim Plate Replacement (RHD w/Automatic Transmission)

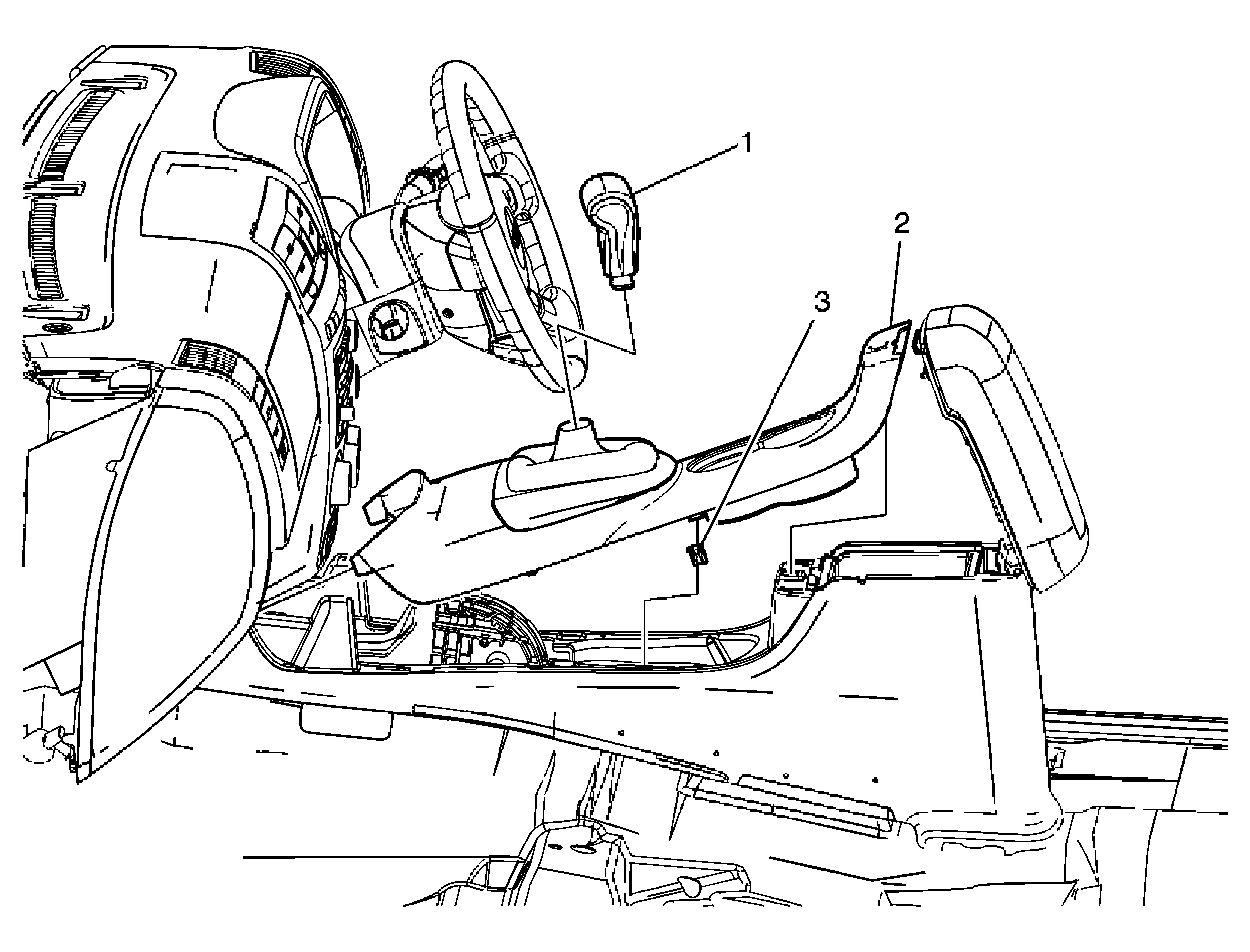

Fig 1: Front Floor Upper Console Trim Plate Replacement (RHD w/Automatic Transmission)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shift Control Knob Assembly Refer to Floor Shift Control Knob Replacement .
2	Console Upper Trim Plate NOTE: Do NOT pull or pry on the shift boot. This action may damage the shift boot retainers. Tip:  Shifter bezel and console upper trim plate must be removed as one assembly.
3	Trim Clip Retainer (Qty: 6)
