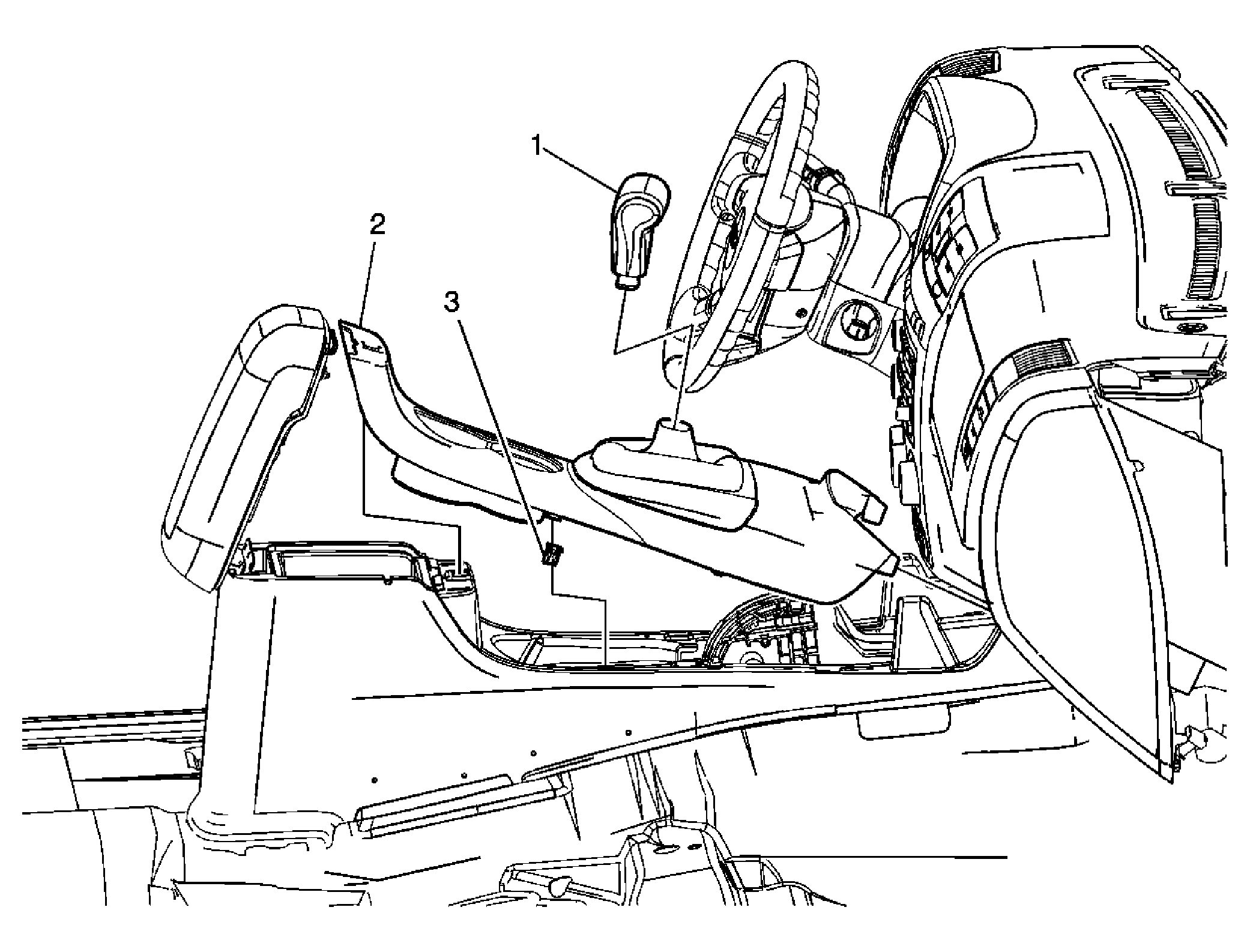

Front Floor Upper Console Trim Plate Replacement (LHD w/Automatic Transmission)
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Knob Assembly, Floor Shift Control Refer to Floor Shift Control Knob Replacement . |
| 2 | Plate, Console Upper Trim
NOTE:
Do NOT pull or pry on the shift boot. This action may damage the shift boot retainers. Tip: Shifter bezel and console upper trim plate must be removed as one assembly. |
| 3 | Retainer, Trim Clip (Qty: 6) |
