Front Floor Upper Console Trim Plate Replacement (RHD w/Manual Transmission)

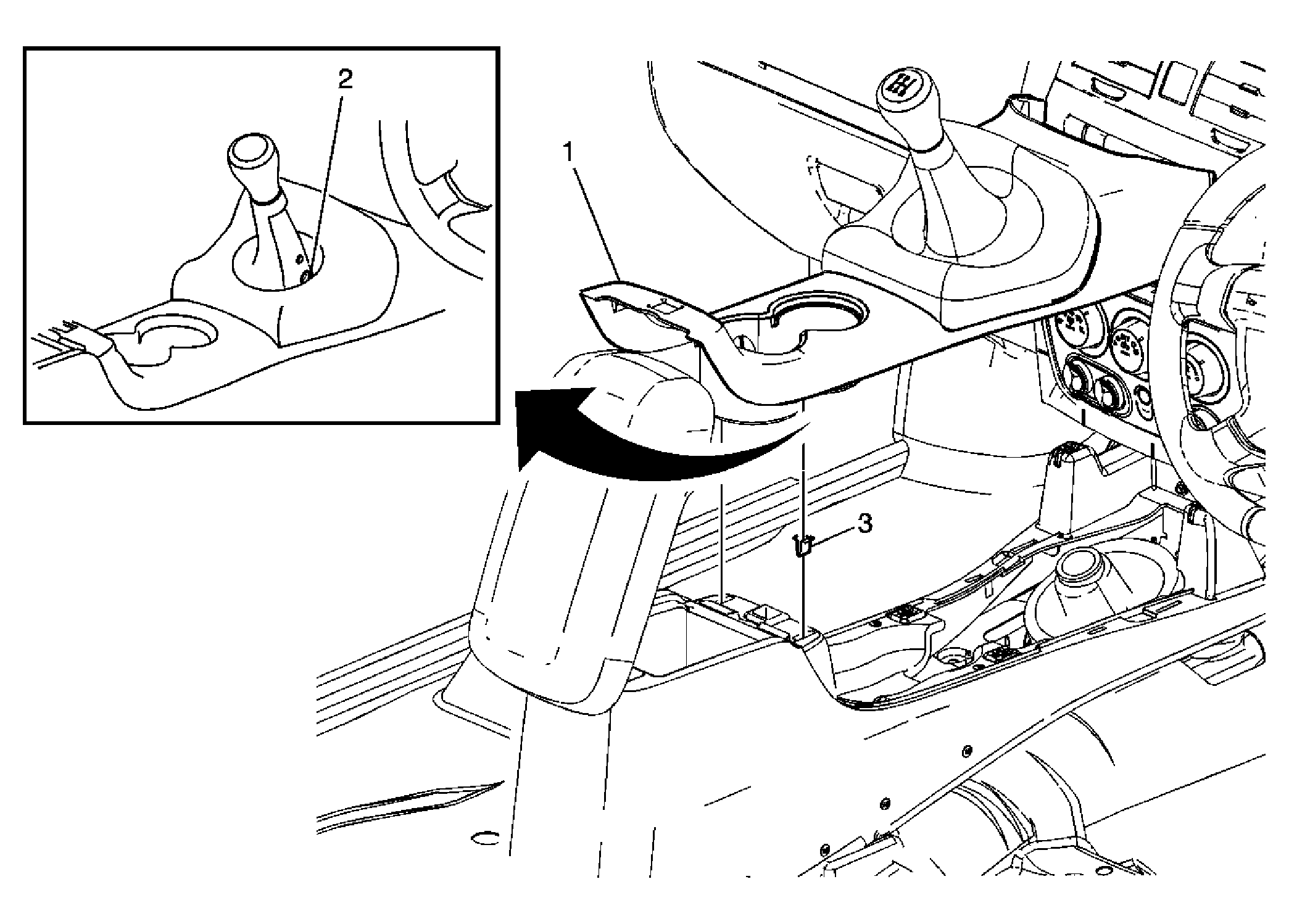

Fig 1: Front Floor Upper Console Trim Plate Replacement (RHD w/Manual Transmission)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Upper Trim Plate NOTE: Do NOT pull or pry on the shift boot. This action may damage the shift boot retainers. Tip: Shifter bezel and console upper trim plate must be remove as one assembly.
2	Manual Shift Handle Screw NOTE: Refer to Fastener Notice . Procedure Lift the console upper trim plate enough to access the shift handle retaining screw. Apply threadlock GM P/N 1234593 (Canadian P/N 10953488) to the shift lever set screw threads before reinstalling. Tighten: 25 N.m (18 lb ft)
3	Trim Clip Retainer (Qty: 6)

Callout

Component Name

Console Upper Trim Plate

NOTE: Do NOT pull or pry on the shift boot. This action may damage the shift boot retainers.

Tip: Shifter bezel and console upper trim plate must be remove as one assembly.

Manual Shift Handle Screw

NOTE: Refer to Fastener Notice .

Procedure

Lift the console upper trim plate enough to access the shift handle retaining screw.
Apply threadlock GM P/N 1234593 (Canadian P/N 10953488) to the shift lever set screw threads before reinstalling.

Tighten: 25 N.m (18 lb ft)

Trim Clip Retainer (Qty: 6)
