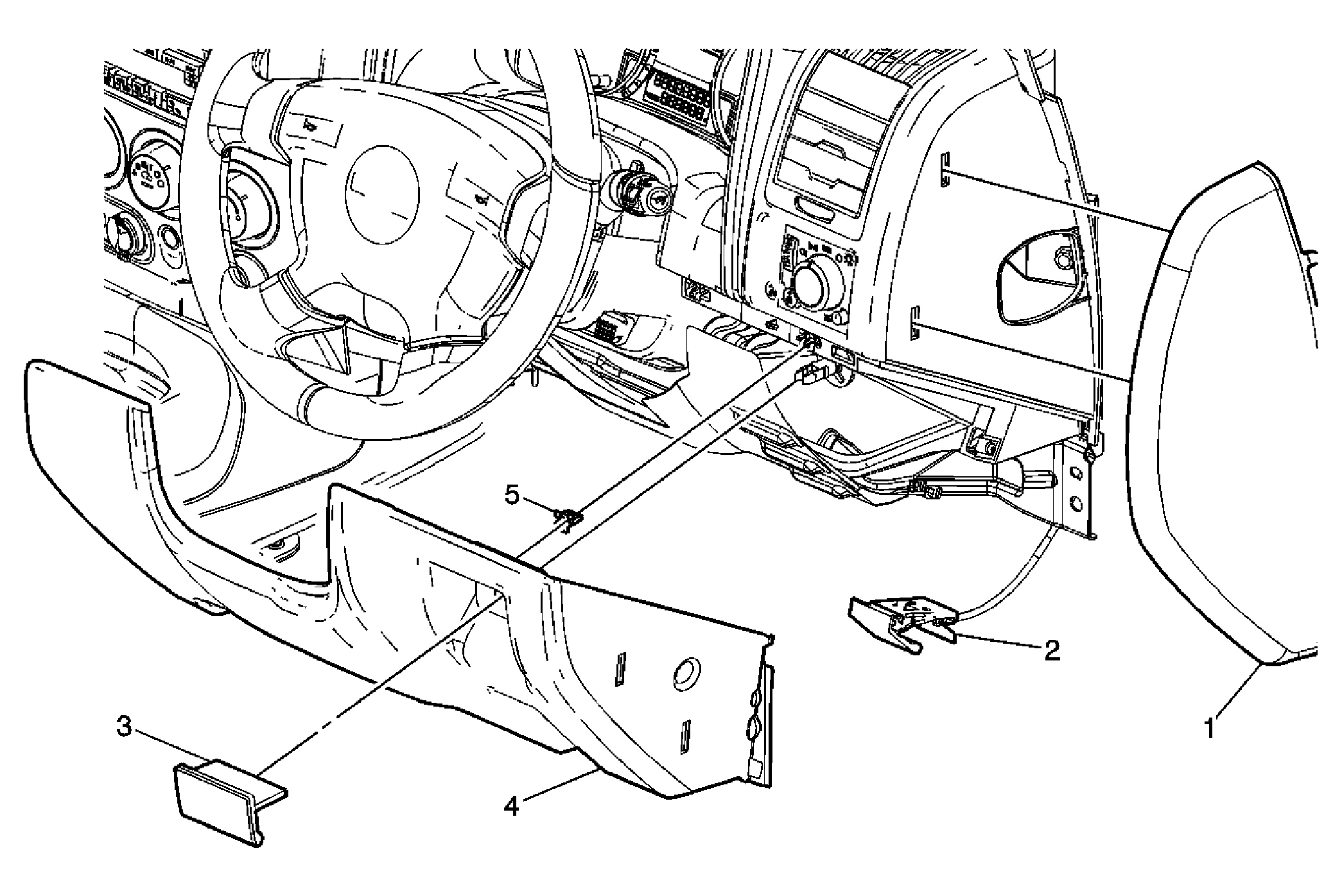

Driver Knee Bolster Replacement (Right Hand Drive)
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Outer Cover Refer to Instrument Panel Outer Trim Cover Replacement - Left Side (Left Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive) . |
| 2 | Hood Release Handle Assembly Refer to Hood Primary Latch Release Cable Handle Replacement . |
| 3 | Park Brake Release Handle Assembly Refer to Parking Brake Release Handle Assembly Replacement . |
| 4 | Instrument Panel Knee Bolster Cover |
| 5 | Trim Clip Retainer (Qty: 4) |
