Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive)

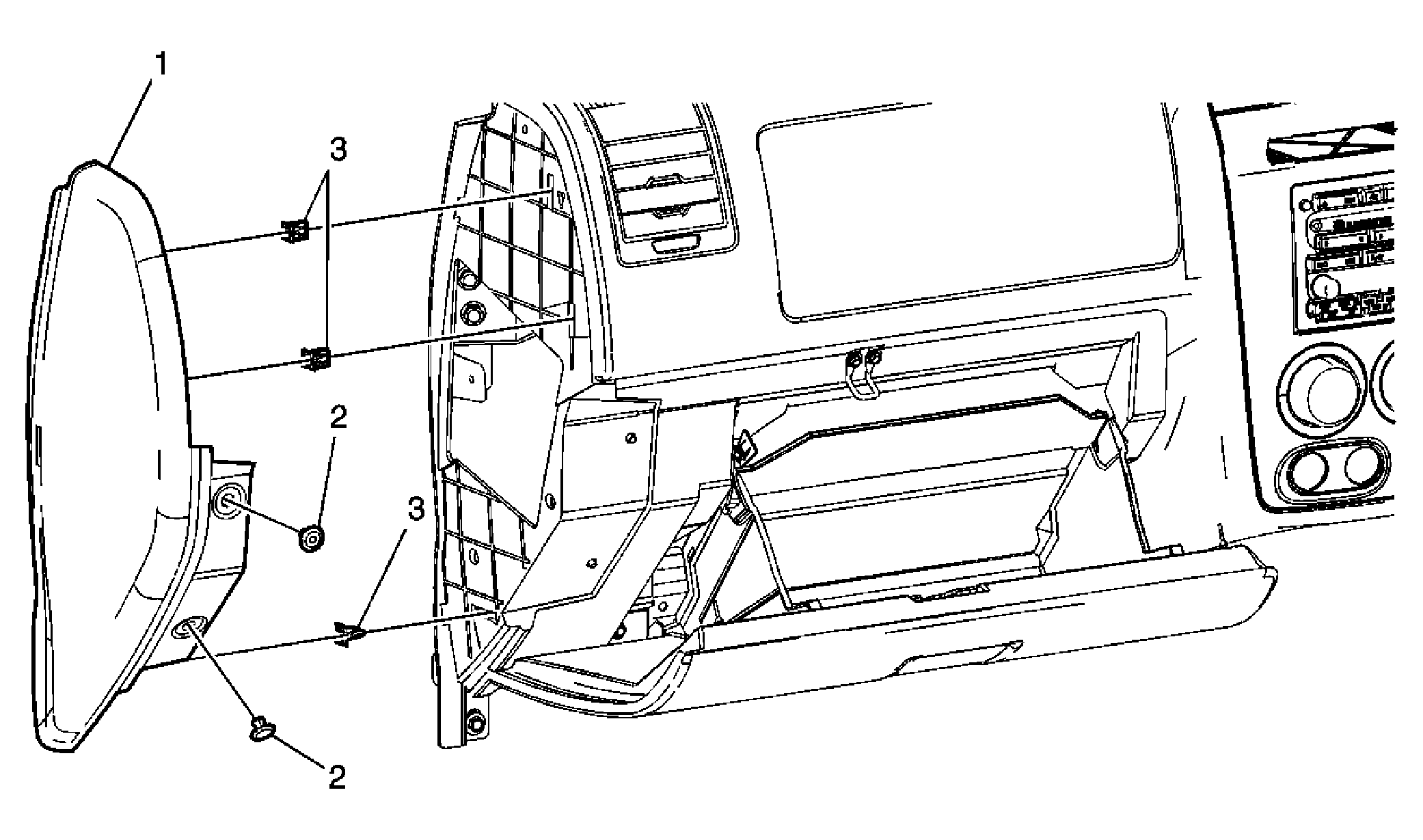

Fig 1: Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive)
GM1863730Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Outer Cover
2 Push-Pin Fasteners (Qty: 2)
3 Retainer Clips (Qty: 3)
