Parking Brake Release Handle Assembly Replacement

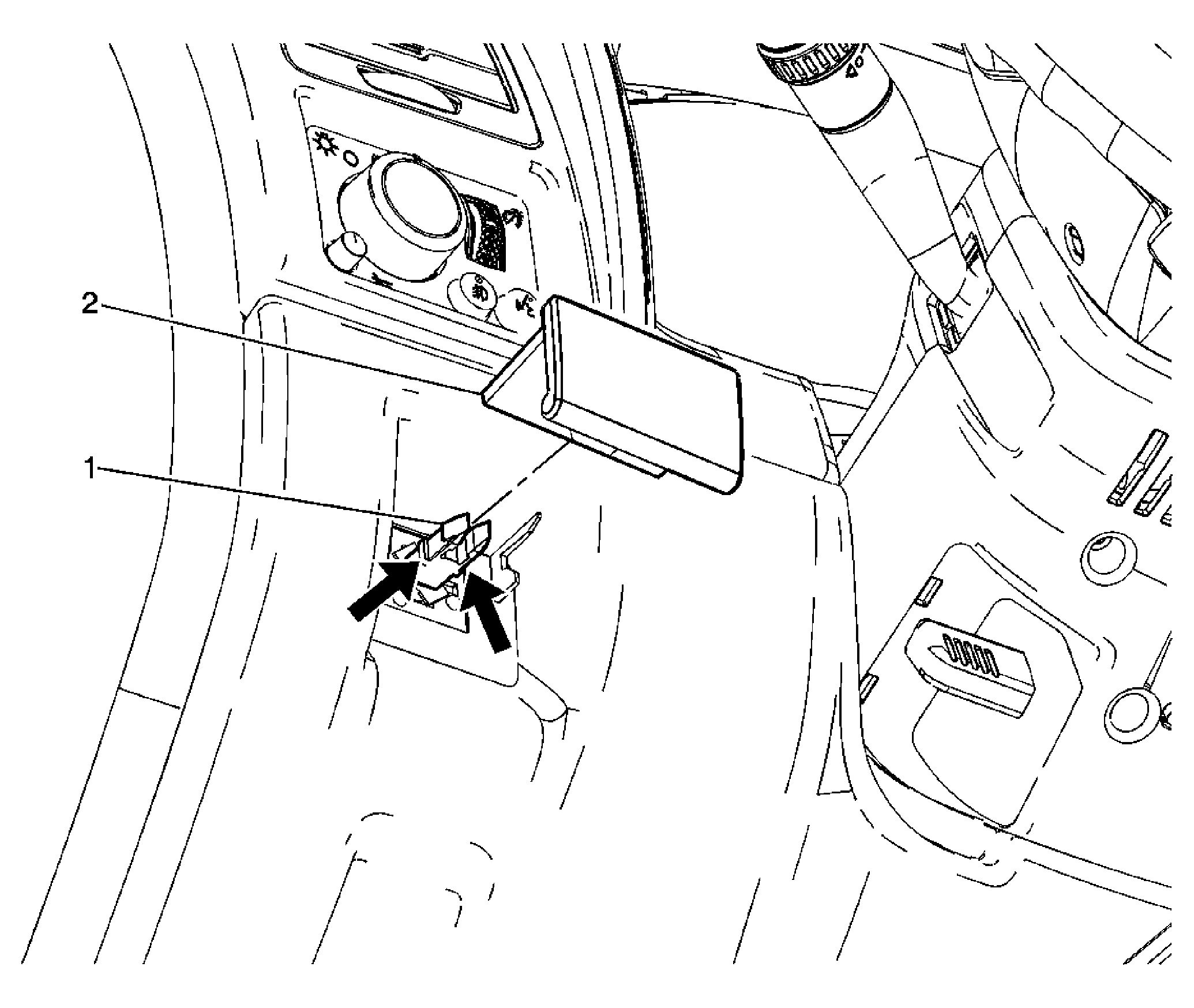

Fig 1: Park Brake Release Handle Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Cable, Park Brake Front Tip:  Depress the locking tabs on the park brake release cable in order to release the park brake handle.
2	Handle, Park Brake Release
